Detailed Description

The 10k Ohm 0.25W Metal Film Resistor is an indispensable, foundational component across the landscape of modern hardware design and prototyping. While legacy carbon film resistors are fine for rudimentary lighting, they suffer from high thermal drift and internal resistance fluctuations that inject unwanted hiss and timing errors into sensitive circuits. This metal film resistor completely side-steps those limitations. It is constructed by depositing a micro-thin, uniform layer of premium metal alloy onto a high-purity ceramic rod under a vacuum. This layer is then laser-trimmed into an exact helix to lock in a highly precise, stable 10,000 Ohm resistance value.

Featuring a strict $pm1%$ structural tolerance, this resistor ensures your calculated voltage dividers and bias networks behave exactly as designed on paper. The component is coated in an insulated, flame-retardant epoxy lacquer that safely withstands high voltage breakdowns and locks out moisture. Outfitted with tinned oxygen-free copper axial leads, it drops seamlessly into solderless breadboards, perfboards, or automated through-hole wave soldering production lines.

Key Features and Benefits

• Ultra-Tight $pm1%$ Tolerance Precision: Delivers highly predictable performance in critical timing loops and reference networks, removing the variance errors common in cheap 5% carbon alternatives.

• Low Noise & High Linearity: Perfect for high-fidelity audio pre-amps and sensor networks, keeping internal thermal Johnson noise and current distortion down to near-zero benchmarks.

• Excellent Temperature Coefficient: Maintains a steady resistance value across fluctuating environments, minimizing thermal resistance drift inside tightly sealed project enclosures.

• Durable Axial Lead Construction: Heavy-gauge, flexible tinned leads provide effortless insertion into prototyping breadboards and ensure high mechanical strength on soldered PCBs.

• Flame-Retardant Safety Coating: Encapsulated in a resilient, protective exterior compound designed to prevent combustion or structural carbon tracking during unexpected current overloads.

Technical Specifications

How to Use & Color Code Interpretation

5-Band Color Code System Identification:

Because metal film resistors feature premium tolerances, they rely on a 5-band color system to indicate their value with higher precision than old 4-band variants. Read the bands starting from the edge where the stripes are clustered closest together:

• Band 1 (First Digit): Brown --> 1

• Band 2 (Second Digit): Black --> 0

• Band 3 (Third Digit): Black --> 0

• Band 4 (Multiplier): Red --> *100

• Band 5 (Tolerance): Brown --> ±1%

• Calculation: 100 * 100 = 10,000 Ω = 10 kΩ

Microcontroller Pull-Up Application Example:

The 10k Ohm resistor is the global gold standard for creating pull-up networks to keep logic pins from floating randomly due to electromagnetic interference:

1. Connect one leg of the 10k resistor to your microcontroller's 3.3V or 5V VCC rail.

2. Connect the opposite leg of the resistor to a digital input pin (e.g., Arduino GPIO Pin 2).

3. Connect a momentary push-button switch between that same digital pin and GND.

4. Result: The 10k resistor safely "pulls up" the input pin to a steady HIGH state when the button is open, preventing erratic static noise from triggering false inputs, and safely limits current to just a fraction of a milliamp when the button is pressed.

Applications

• Microcontroller Logic Biasing: Acts as highly stable external pull-up or pull-down resistors for buttons, limit switches, and standard I2C data communication lines (SDA/SCL).

• High-Accuracy Voltage Dividers: Scales down high analog input signals safely and proportionally so they can be read by a microcontroller's 10-bit or 12-bit ADC.

• RC Timing Filters: Combines with ceramic or electrolytic capacitors to construct low-pass/high-pass filters and debouncing circuits.

• Audio Operational Amplifier Gains: Sets precise feedback loop values in op-amps, equalizer circuits, and instrumentation amplifiers.

Package Includes

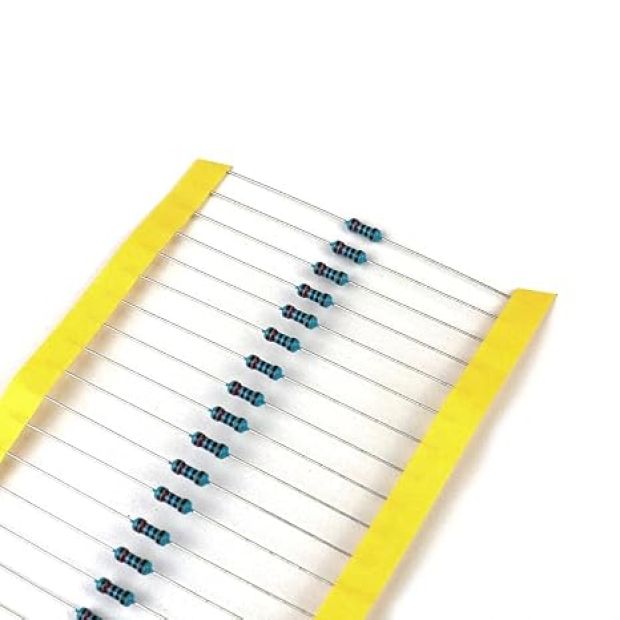

• 1 x 10k Ohm 0.25W Metal Film Resistor (Axial-Leaded)
