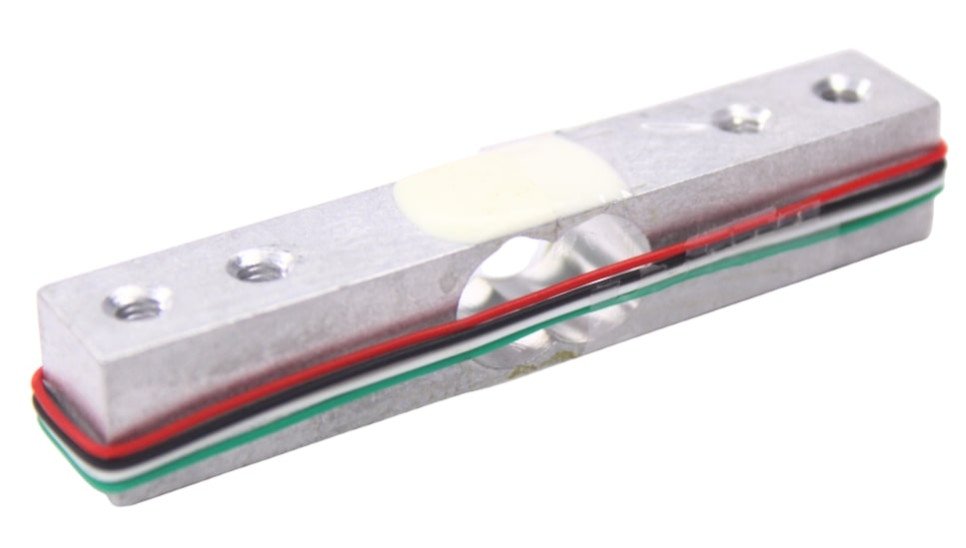

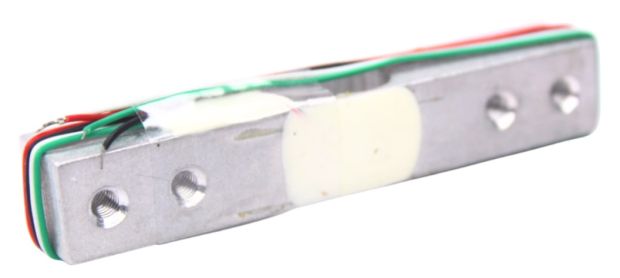

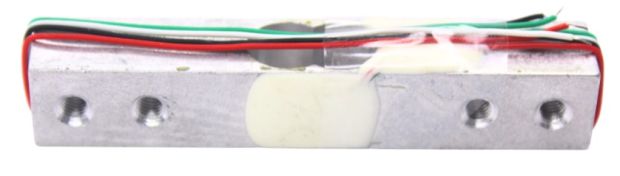

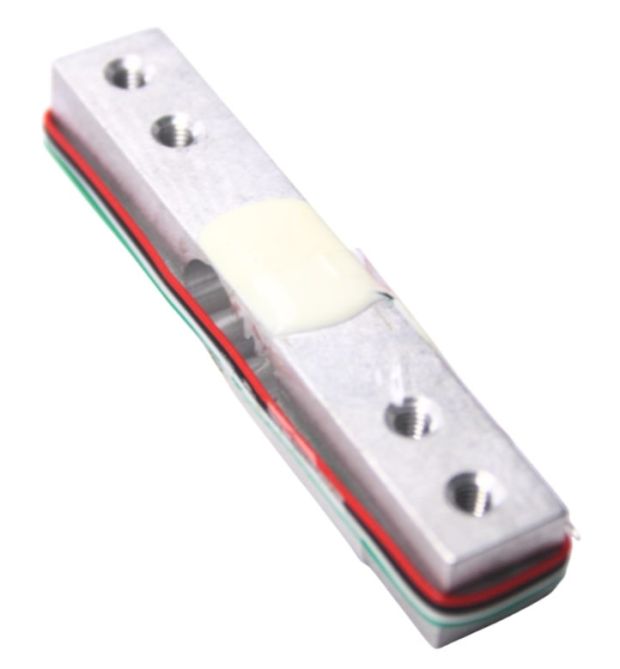

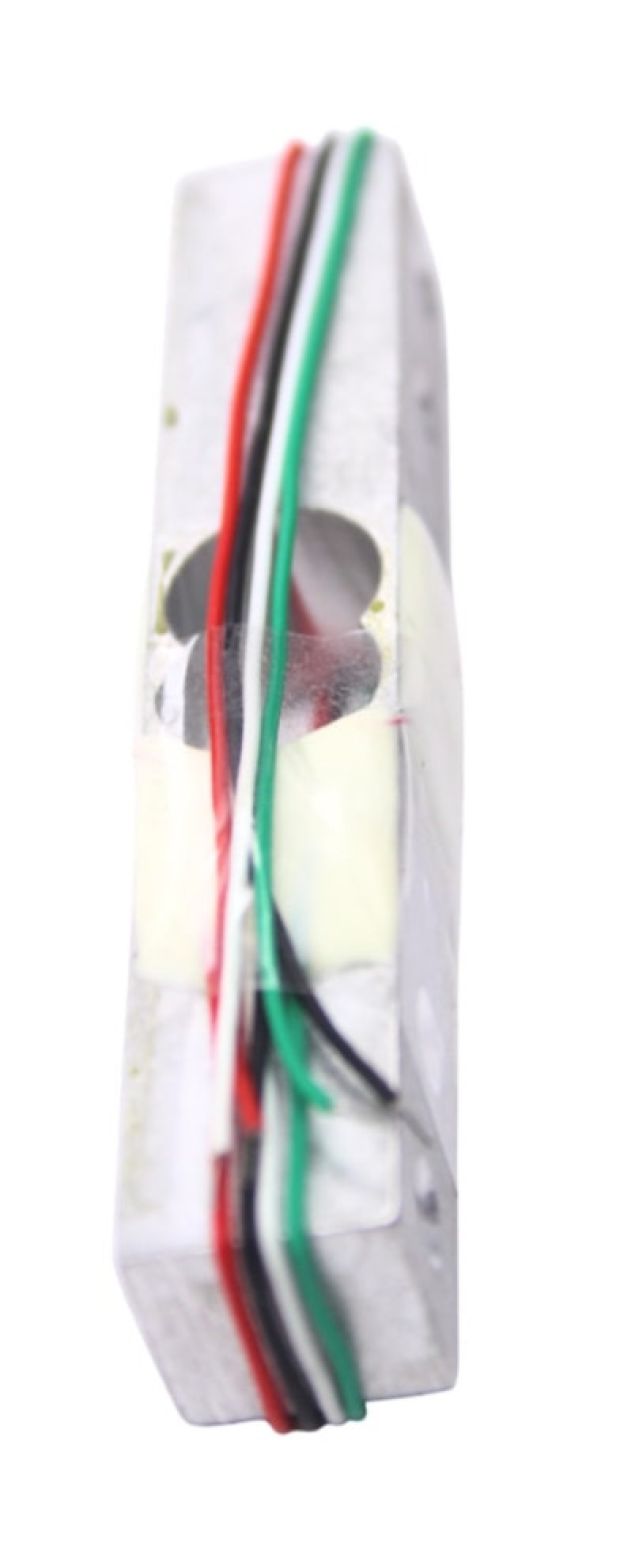

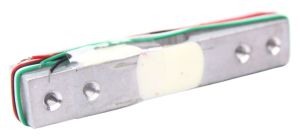

1KG Load Cell Weight Sensor – Strain Gauge-Based Load Sensor
Each straight bar load cell is made from an aluminum-alloy and is capable of reading a capacity of 1kg. These load cells have four strain gauges that are hooked up in a wheatstone bridge formation. This 1KG Load Cell is a compact strain gauge-based weight sensor made from aluminum alloy, designed for accurate weight measurement in DIY digital scales, Arduino projects, and IoT-based load monitoring systems. Ideal for pairing with the HX711 amplifier module.
₹ 129
₹129
149



Add FAQ
Detailed Description:
The 1KG Load Cell Weight Sensor is a precision component designed for projects that require accurate and reliable force or weight measurement. This strain gauge-based load sensor operates on the principle that its electrical resistance changes proportionally with the force applied to it, providing a consistent and repeatable signal. With a maximum capacity of 1KG, this sensor is a perfect fit for a variety of small-scale applications, including building a custom digital kitchen scale, a smart pet feeder, or a weight-sensing system for a miniature robot.
Constructed from a high-quality aluminum alloy, this sensor is both durable and lightweight, ensuring long-term stability and performance. Its standard four-wire configuration, which forms a Wheatstone bridge, allows for straightforward integration into your circuit. A key technical consideration is that the output of the load cell is a tiny analog signal in the millivolt range, which is too small for a microcontroller to read directly. To achieve precise measurements, this sensor must be used in conjunction with a dedicated analog-to-digital converter (ADC) module, such as the HX711, which amplifies the signal and converts it into a digital format. This pairing with an Arduino or other microcontroller enables you to easily read and process the weight data. Whether you're a student, a hobbyist, or a professional, this mini force sensor provides the accuracy and reliability needed to bring your projects to life.
This 1KG Load Cell uses strain gauge technology to measure force and convert it into a small electrical signal. It is commonly used in digital weighing systems, smart kitchen scales, and automated industrial setups. With a rated capacity of 1 kilogram, it offers high sensitivity and repeatability when used with an amplifier module like HX711.
Made from high-strength aluminum alloy, the sensor is lightweight yet rugged, with 4 strain gauges bonded in a Wheatstone bridge configuration for accurate measurement. It has M3 mounting holes and four color-coded wires for easy interfacing.
Key Features:
-
High-precision strain gauge sensor
-
Rated capacity: 1KG (1000g)
-
Made of anodized aluminum alloy
-
4-wire connection: Red, Black, Green, White
-
Compact size – perfect for compact digital scale designs
-
Compatible with HX711 module and Arduino, ESP32, Raspberry Pi
-
Easy integration for DIY or embedded systems
-
Durable, corrosion-resistant material
Technical Specifications:
Parameter | Specification |
---|---|
Rated Load | 1KG (1000 grams) |
Output Sensitivity | 1.0 ± 0.1 mV/V |
Excitation Voltage | 5V (typical), up to 12V |
Output Resistance | ~1kΩ (typical) |
Material | Anodized Aluminum Alloy |
Configuration | Full Wheatstone Bridge |
Number of Wires | 4 (Red: +Exc, Black: –Exc, Green: +Sig, White: –Sig) |
Dimensions | ~75mm × 13mm × 12mm |
Mounting Holes | 2 × M3 threaded holes |
Accuracy Class | C2/C3 standard (for general weighing use) |
How to Use:
-
Connect the load cell wires to an HX711 amplifier (sold separately)
-
Connect HX711 to Arduino / ESP32 / Raspberry Pi
-
Calibrate using sample weights and code libraries
-
Use for real-time weight measurement or triggers
Applications:
-
DIY digital weighing scales
-
Smart kitchen or parcel scales
-
IoT-based weight monitoring systems
-
Load sensing in vending machines
-
Force measurement in robotics
-
Baby weight monitors / healthcare sensors
-
Precision farming (fertilizer/seed weight sensors)
Package Includes:
-
1 x 1KG Load Cell (4-wire strain gauge sensor)
