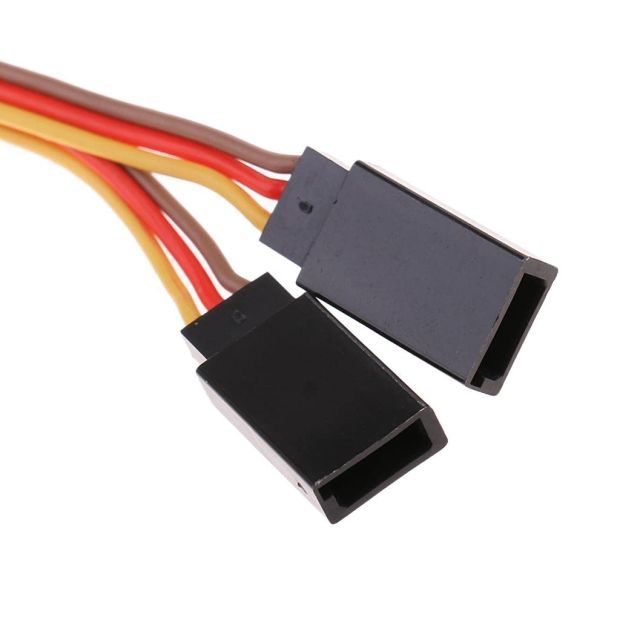

The 300mm JR Male to Female Servo Extension Wire is a heavy-duty interconnect solution designed to optimize signal routing across large scale RC aircraft, multirotor electronics bays, and industrial-grade robotic setups. When components like steering actuators, tail servos, or landing gear modules are positioned at a distance from the central receiver or power distribution block, standard factory leads cannot span the gap. This 30-centimeter line provides the necessary reach while minimizing clutter and maximizing layout cleanlines.

Constructed from premium 22AWG multi-strand wire, this cable features significantly lower internal resistance compared to standard 26AWG thin-gauge variants. This makes it an ideal fit for high-load digital servos that demand steady, unhindered current supply during rapid mechanical transitions. The flat ribbon architecture not only routes neatly behind bulkheads or inside wing spars but also reduces aerodynamic clutter and optimizes cooling airflow inside enclosed drone hulls.

Key Features & Benefits:

• Heavy-Duty 22AWG Cores: Designed with high strand counts to cleanly handle larger current demands without causing voltage drops or command lag.

• Cross-Brand Adaptation: Seamlessly bridges a universal JR male header over to a shrouded female port, letting you pair mixed brand modules securely.

• Vibration-Resistant Flat Ribbon Layout: The flat design lies flat against structural frames, reducing the risk of chafing and wire snagging in high-vibration engine environments.

• Gold-Flashed Terminal Pins: Equipped with precision-crimped internal contacts that offer corrosion defense and flawless pulse-width modulation (PWM) data stream transfer.

Technical Specifications

How to Use

The 300mm JR Male to Female Extension Cable acts as a reliable bridge to span longer structural distances within your chassis. Unlike thinner 26AWG or 28AWG wires that can cause signal attenuation or power loss over longer runs, the robust 22AWG core ensures that your high-voltage (HV) or high-torque digital servos receive the maximum available current during heavy mechanical loading.

How to Connect:

1. Extension Setup: Plug the JR Male end into your RC receiver, flight controller, or servo driver board.

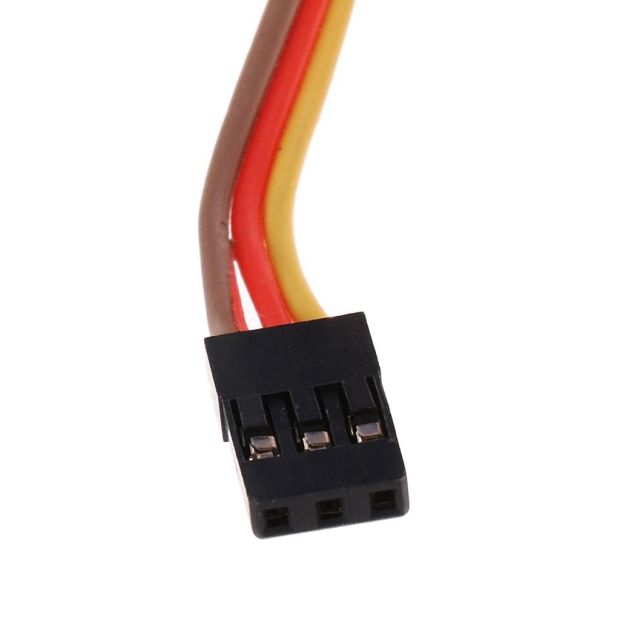

2. Servo Connection: Connect the JR Female socket to the male lead running from your servo motor or sensor module.

3. Polarity Check: JR connectors feature a slight corner beveling to guide orientation. Always align the color-coded wires (GND to GND, VCC to VCC, Signal to Signal) to prevent reverse polarity issues.

4. Stress Relief: When routing 30cm of wire through carbon fiber or aluminum frames, ensure the cable is secured with zip-ties or cable sleeving to protect it from sharp edges and excessive vibration wear.

Common Applications

Thanks to its thicker 22AWG wire profile and generous 30cm length, this extension cable is widely utilized in high-demand electronic layouts:

• Large RC Aircraft & Gliders: Routing servo control lines across wide wingspan profiles for ailerons, flaps, and retract systems.

• Large-Scale RC Cars & Trucks: Connecting high-torque steering servos in 1/5th and 1/8th scale rock crawlers and monster trucks.

• Heavy-Duty Robotics: Providing reliable power and PWM signals across multi-jointed robotic arms and hexapod legs.

• Drone Electronics Integration: Extending connections from a centrally mounted flight controller to external electronic speed controllers (ESCs), LED modules, or camera gimbals positioned at the edges of the multirotor frame.

Package Includes

• 1 x 300mm JR Male to Female Servo Extension Wire (22AWG)
