Detailed Description

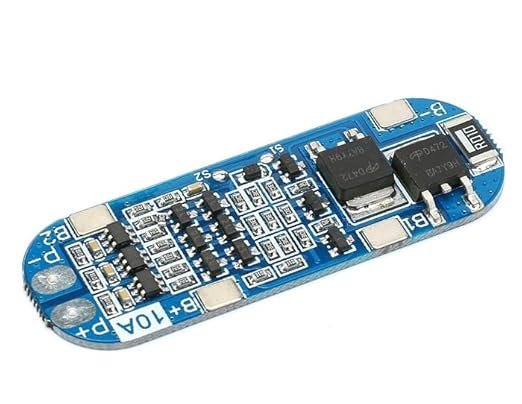

The 3S 10A 12V 18650 Lithium Battery Charger Board Protection Module is a critical safety infrastructure component for any custom multi-cell lithium-ion or lithium-polymer energy storage project. While lithium batteries provide exceptional energy density, they are highly sensitive to electrical boundary variances; overcharging them can ruin their chemistry, and over-discharging can permanently kill their ability to hold a charge. This ultra-compact Battery Management System (BMS) acts as an automatic circuit breaker for a 3-Series (3S) battery cluster, maintaining safe thresholds across all attached cells.

The module supports a continuous running discharge profile of up to 10A, and handles instantaneous current surges of 10-13A, making it ideal for devices with mild startup inductive loads. It relies on a high-precision voltage detection network and built-in delay circuits that automatically step in to isolate the load or the charger during unexpected faults. Once the underlying fault condition is removed (such as clearing a short circuit or reducing the load current), the module features an automatic self-recovery sequence that reconnects power to the output terminals without requiring a manual hard reset.

Key Features and Benefits

• Comprehensive Multi-Level Defense: Combines overcharge voltage sensing, over-discharge voltage cuts, overcurrent isolation, and dead-short protection inside a single PCB footprint.

• High-Current Surge Threshold: Comfortably regulates a 10A continuous load and handles up to 13A peak surge thresholds during motor or power tool startups.

• Ultra-Low Quiescent Power Draw: Draws less than 30 μA in standby mode, ensuring the protection board does not drain the battery pack during prolonged storage.

• Convenient Automatic Self-Recovery: Eliminates the frustration of manual resets; the module clears its protection lock automatically once the fault parameter normalizes.

• Highly Thermal Tolerant: Operates cleanly in harsh environmental setups ranging from extreme winter freezes to high-heat enclosures (-40° C to + 50° C).

Technical Specifications

How to Use & Wiring Schematics

⚠️ BATTERY MATCHING MANDATE: Before constructing your series battery pack, you must use a multimeter to ensure all 3 cells are matched to the exact same voltage level. If one cell is significantly lower than the others, the BMS will prematurely trigger an over-discharge cutoff for the whole pack, ruining your capacity efficiency. Always use cells of the same brand, capacity, and age profile.

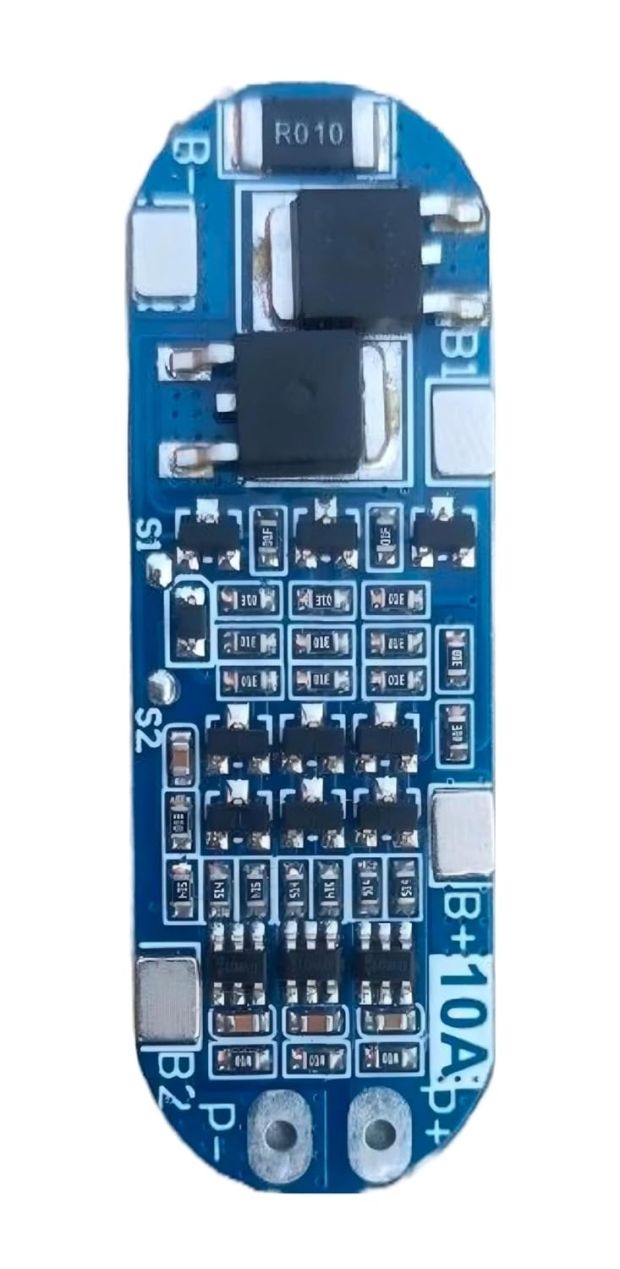

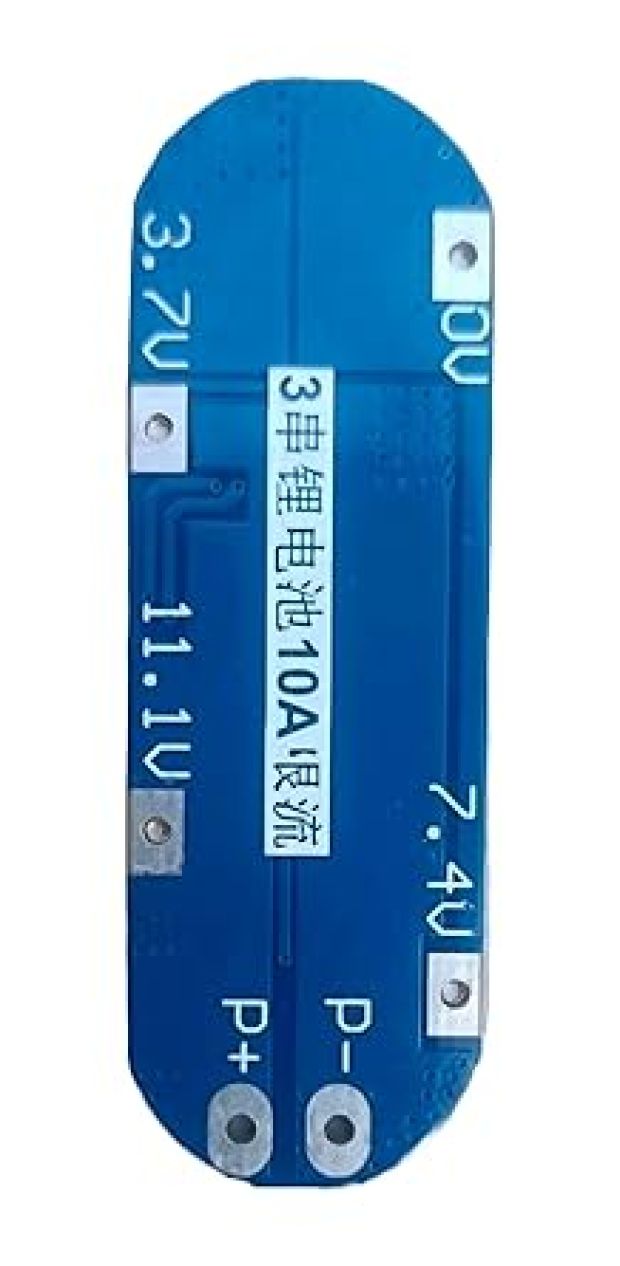

Terminal Pinout Mapping:

• B+: Connect to the absolute positive terminal of the 3-cell battery pack (+12.6 V point).

• B-: Connect to the absolute negative terminal of the 3-cell battery pack (0 V point).

• B1: Connect to the first series junction point (between Cell 1 Positive and Cell 2 Negative - 3.7 V nominal mark).

• B2: Connect to the second series junction point (between Cell 2 Positive and Cell 3 Negative - 7.4 V nominal mark).

• P+ / P-: Dual-purpose terminal junction pairs. Connect your DC Input Charge Current here to charge the pack, or draw your DC Output Load Current from these exact same terminals.

Step-by-Step Build Sequence:

1. Weld or place 3 lithium cells in a strict series path configuration:

   Cell 1(-)  ---> Cell 1(+) ---> Cell 2(-) ---> Cell 2(+) ---> Cell 3(-) ---> Cell 3(+)

2. Solder thin hookup wires from the internal junction tabs of the batteries directly to the B1 and B2 terminal targets on the module board.

3. Solder the main heavy-gauge battery pack primary leads to B+ and B-.

4. Wire your device load or 12.6V specialized constant-current/constant-voltage (CC/CV) power charger adapter across the P+ and P- pads.

5. Note: If you finish wiring and find no output voltage at P+/P-, do not worry. This is a standard safety feature. Simply apply a 12.6V charging voltage briefly to the P+/P- pads to wake the onboard management IC from its deep startup sleep state.

Applications

• DIY Portable Power Banks: Creates stable 12V rechargeable battery packs for field electronics, outdoor lighting, and testing instruments.

• Robotics & Rover Chassis Systems: Supplies safe, high-current power grids to drive DC geared motors and microcontrollers without brownout concerns.

• Uninterruptible Solar Power Backups: Manages small remote solar nodes, keeping 12V wildlife cameras or remote weather telemetry gear running around the clock.

• Bluetooth Speaker Power Conversions: Easily retrofits vintage portable stereos or custom boomboxes with lightweight, long-lasting 18650 arrays.

Package Includes

• 1 x 3S 10A 12V 18650 Lithium Battery Charger Board Protection Module
