AMS1117 3.3V Step-Down Linear Voltage Regulator Power Supply Module

Step down higher DC supply voltages to a stable, low-noise $3.3 ext{V DC}$ output with the AMS1117 3.3V Power Supply Module. Built around the popular AMS1117-3.3 low-dropout (LDO) linear voltage regulator IC in a SOT-223 package, this compact breakout board accepts input voltages ranging from $4.5 ext{V}$ to $12 ext{V DC}$ and delivers up to $800 ext{mA}$ continuous output current. Featuring onboard filtering capacitors, a red power status LED indicator, and standard 2.54mm pitch header pins, it provides clean regulated power for 3.3V microcontrollers like ESP8266, ESP32, STM32, Raspberry Pi Pico, and sensitive wireless sensors.

( No Reviews )

₹ 15 ^{₹ 22}

Order From Whatsapp

Seller Electro Boat

Tags AMS1117 3.3V Module 3.3V LDO Voltage Regulator Step Down Power Supply Module AMS1117 Breakout Board 5V to 3.3V Buck Regulator Linear Voltage Regulator 3.3V ESP8266 3.3V Power Supply

No Cancellation

No Returnable

Product Details :

The AMS1117 3.3V Power Supply Module is an essential power conditioning breakout board designed to down-convert higher DC voltages (such as $5 ext{V}$ from USB or $9 ext{V}-12 ext{V}$ from adapters) into a precise $3.3 ext{V DC}$ rail required by modern low-power microcontrollers and sensors.

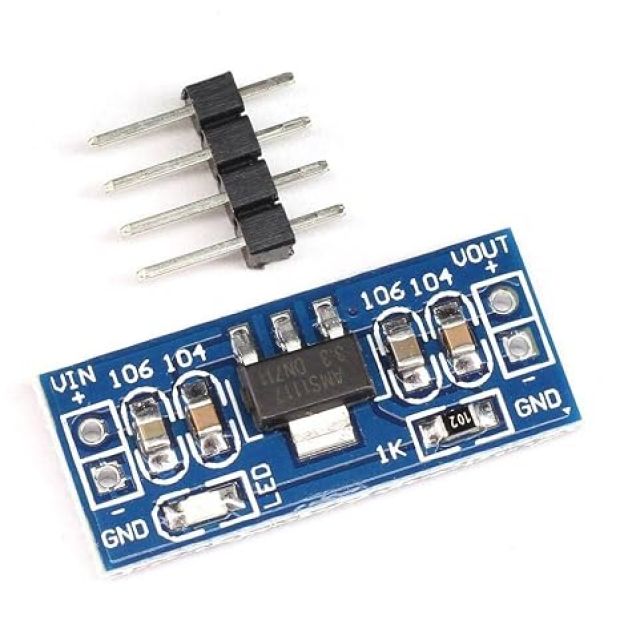

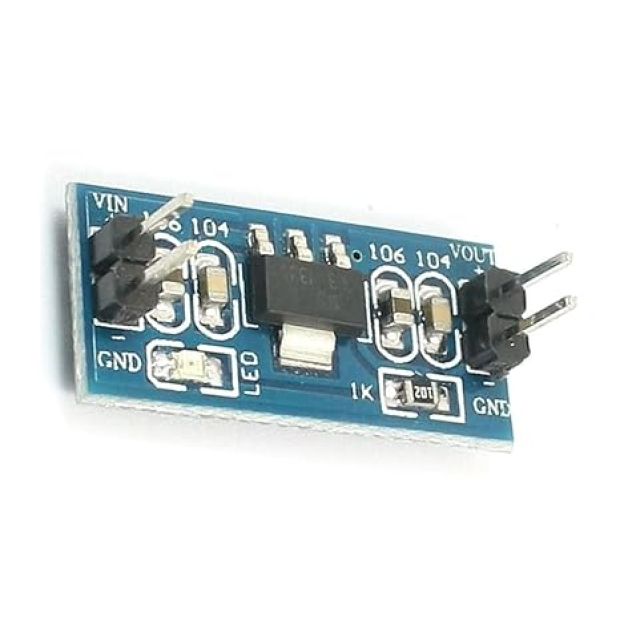

The core of the module is the AMS1117-3.3 IC, a high-efficiency Low Dropout (LDO) linear regulator capable of providing up to $800 ext{mA}$ output current with a maximum dropout voltage of just $1.1 ext{V}$ at full load. The board includes onboard surface-mount tantalums and ceramic filtering capacitors on both the input ( $V_{IN}$ ) and output ( $V_{OUT}$ ) lines to minimize voltage ripples and ensure signal stability. An onboard red SMD power LED gives immediate visual confirmation when input power is applied. With its dual 2-pin male headers ( $V_{IN}/GND$ and $V_{OUT}/GND$ ), it plugs directly into standard solderless breadboards or PCB headers.

Key Features and Benefits

Precise 3.3V Regulation: Converts unregulated $4.5 ext{V}$ to $12 ext{V DC}$ inputs down to a stable $3.3 ext{V DC}$ output with $pm1%$ accuracy.
Up to 800mA Output Current: Provides sufficient current to power hungry Wi-Fi/Bluetooth modules like ESP8266 ESP-01, ESP32, and NRF24L01 radio transceivers.
Integrated Noise Filtering: Built-in SMD filtering capacitors smooth out line ripple and voltage spikes for sensitive digital logic circuits.
Power Indicator LED: Red SMD LED indicates active power supply status at a glance.
Breadboard Friendly Layout: Standard 2.54mm pitch male pin headers allow seamless mounting on breadboards and prototyping shields.

Technical Specifications

Feature Component	Specification Details
Regulator IC	AMS1117-3.3 (SOT-223 Package)
Input Voltage ( $V_{IN}$ )	$4.5 ext{V DC to } 12.0 ext{V DC}$ ( $5.0 ext{V DC}$ recommended)
Output Voltage ( $V_{OUT}$ )	$3.3 ext{V DC} pm 1.5%$
Max Output Current ( $I_{OUT}$ )	$800 ext{mA}$ (Subject to power dissipation $P_D$ )
Dropout Voltage ( $V_{DO}$ )	$1.1 ext{V}$ at $800 ext{mA}$
Line Regulation	$0.2%$ Max
Load Regulation	$0.4%$ Max
Pin Pitch	$2.54 ext{ mm}$ ( $0.1 ext{ inch}$ )
Operating Temperature	$-40^circ ext{C to } +125^circ ext{C}$

Pinout & Thermal Management Guide

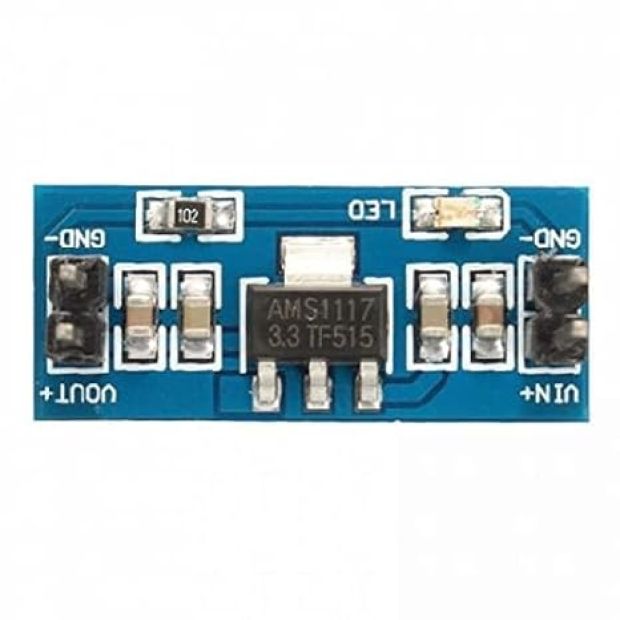

Pin Configuration:

$V_{IN}$ ( $+$ ): Input positive voltage ( $4.5 ext{V} - 12 ext{V DC}$ )
$V_{IN}$ ( $-$ /GND): Input ground ( $0 ext{V}$ )
$V_{OUT}$ ( $+$ ): Regulated output positive ( $3.3 ext{V DC}$ )
$V_{OUT}$ ( $-$ /GND): Output ground ( $0 ext{V}$ , common with input ground)

THERMAL & DISSIPATION ADVISORY: Linear regulators convert excess voltage into heat according to $P_D = (V_{IN} - V_{OUT}) imes I_{OUT}$ . When stepping down from $12 ext{V}$ to $3.3 ext{V}$ , drawing high current ( $>200 ext{mA}$ ) will cause the IC to get hot rapidly. For input voltages above $5 ext{V}$ with currents exceeding $300 ext{mA}$ , ensure adequate ventilation or consider using a switching buck converter instead.

Applications

IoT & Wireless Modules: Supplying clean power to ESP8266, ESP32, NRF24L01, HC-05 Bluetooth, and LoRa radios.
Microcontroller Logic Power: Powering 3.3V boards like STM32 Blue Pill, Raspberry Pi Pico, and Arduino Due.
Sensor Arrays: Stepping down 5V power rails to drive 3.3V sensors (e.g., MPU6050, BME280, SD card modules).
DIY Prototyping: Providing dual power rails ( $5 ext{V}$ and $3.3 ext{V}$ ) on breadboards for mixed-voltage logic projects.
