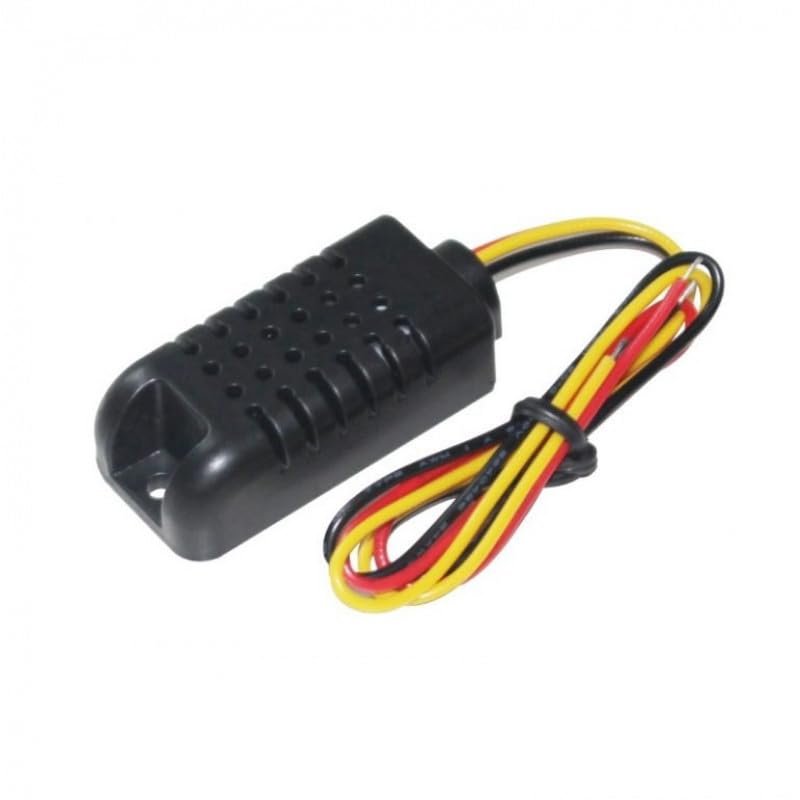

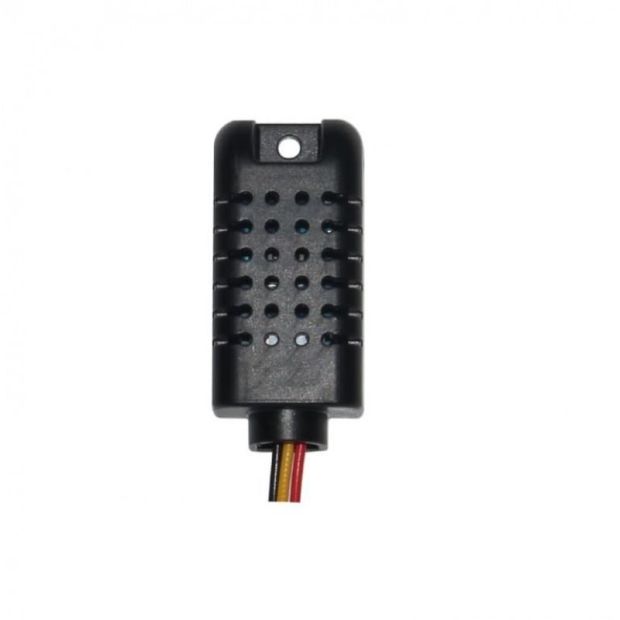

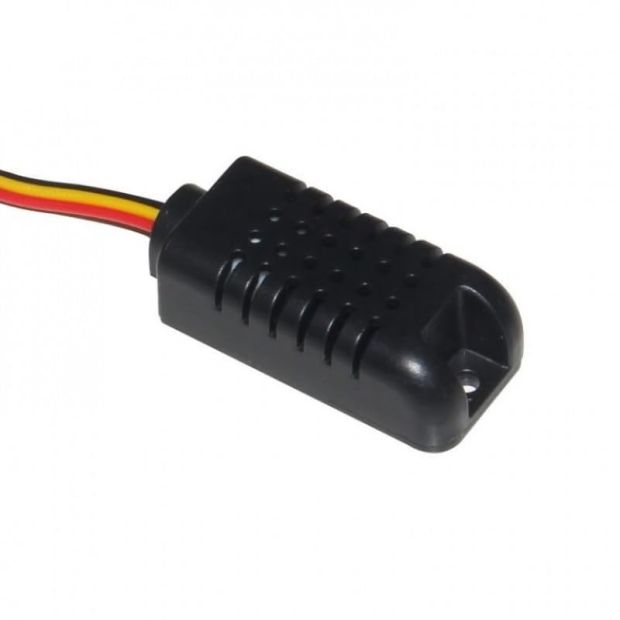

ASAIR AM2301 Capacitive Temperature & Humidity Sensor Module

Measure environmental parameters accurately in harsh or outdoor conditions with the Electroboat ASAIR AM2301 (DHT21) Capacitive Temperature and Humidity Sensor. Housed in a durable protective plastic shell with flexible pre-wired lead wires, this sensor combines a capacitive humidity sensing element and an NTC temperature measurement component. It outputs a pre-calibrated digital single-bus signal across long cable lengths, making it an upgrade over standard DHT11 and DHT22 sensors.

( No Reviews )

₹ 359 ^{₹ 499}

Order From Whatsapp

Seller Electro Boat

Tags asair am2301 sensor am2301 temperature humidity dht21 am2301 sensor capacitive temp sensor electroboat am2301 single bus temperature humidity wired outdoor humidity sensor

No Cancellation

No Returnable

Product Details :

The Electroboat ASAIR AM2301 (also commonly known as DHT21) is a high-performance, composite digital temperature and relative humidity sensor probe. Designed for reliability and stability, it integrates a capacitive polymer humidity element and an NTC thermistor coupled to a high-speed 8-bit microcontroller inside a protective molded housing.

Each AM2301 sensor is individually calibrated in a precision humidity chamber, with calibration coefficients stored permanently in internal OTP memory. Using a single-bus digital communication protocol, it transmits noise-immune 40-bit data packages over wire distances up to 20 meters without signal degradation. The rugged casing protects internal components against ambient dust and physical impact, making it suitable for HVAC, greenhouse automation, and outdoor weather telemetry.

Key Features and Benefits

Pre-Calibrated Digital Output: Provides calibrated digital readings over a single data line, eliminating the need for analog tuning or complex calculations.
Rugged Enclosed Probe Design: Built-in protective housing shields internal capacitive sensing elements from dust, physical contact, and light moisture.
Extended Measurement Range: Measures relative humidity from 0% to 100% RH and temperatures from -40°C to +80°C.
Long-Distance Transmission: Supports digital data communication over cable distances up to 20 meters.
Low Power Draw: Features low power consumption with ultra-low standby current, rendering it suitable for battery-operated weather stations and remote IoT nodes.

Technical Specifications

Parameter	Specification
Sensor Model	ASAIR AM2301 / DHT21
Operating Voltage (VCC)	3.3V to 5.2V DC
Humidity Measuring Range	0% to 99.9% RH
Humidity Accuracy	$pm 3%$ RH
Temperature Measuring Range	-40°C to +80°C
Temperature Accuracy	$pm 0.5$ °C
Resolution	0.1°C / 0.1% RH
Sensing Elements	Polymer Capacitive Humidity / NTC Temperature
Output Interface	Single-Bus Digital Signal (1-Wire Protocol)
Sampling Interval	2 Seconds

How to Use

Wire Identification:
- Red: $V_{CC}$ (Connect to 3.3V or 5V Power)
- Black / Yellow: $GND$ (Connect to Ground)
- Yellow / White: $DATA$ (Connect to Digital I/O pin on Microcontroller)
Pull-Up Resistor: Connect a 4.7k$Omega$ to 10k$Omega$ pull-up resistor between the $DATA$ line and $V_{CC}$ for reliable long-cable communication.
Microcontroller Code: Use standard DHT library frameworks (such as the DHT.h library set to type DHT21 or AM2301 in Arduino IDE) to read temperature and humidity values every 2 seconds.

Applications

Outdoor Weather Stations & Climate Data Loggers
Smart Agriculture, Greenhouse, and Mushroom Cultivation Control
HVAC Systems, Dehumidifier Control, and Building Automation
Cold Chain Storage, Warehouse Environment Monitoring, and Server Rooms
Industrial Equipment Thermal and Humidity Telemetry

Package Includes

1 x ASAIR AM2301 Capacitive Temperature & Humidity Sensor Probe
