Here's a detailed description of the BMP280 Barometric Pressure and Altitude Sensor:

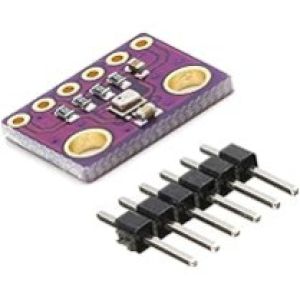

BMP280 Barometric Pressure and Altitude Sensor

Overview:

The BMP280 is a high-precision, low-power barometric pressure sensor developed by Bosch. It is widely used in weather monitoring, altitude measurement, and IoT applications. It can measure both barometric pressure and temperature, and with pressure data, it can calculate altitude accurately. The sensor is ideal for mobile and embedded applications due to its compact size and low power consumption.

Key Features:

• Measures Pressure, Temperature, and Altitude

• Ultra-low Power Consumption

• Compact and Lightweight

• High Accuracy and Resolution

• Supports I2C and SPI Interfaces

• Wide Operating Range

Technical Specifications:

Applications:

• Weather forecasting

• Altitude tracking in drones and RC aircraft

• GPS enhancement and dead-reckoning navigation

• Indoor and outdoor navigation systems

• IoT environmental monitoring

• Wearable devices

Usage Notes:

• Connect the sensor to a microcontroller using I2C or SPI.

• Use libraries (available for Arduino, Raspberry Pi, ESP32, etc.) to read pressure and temperature data.

• Altitude can be calculated from pressure using the barometric formula.

• Ensure proper calibration for accurate altitude readings in varying environmental conditions.

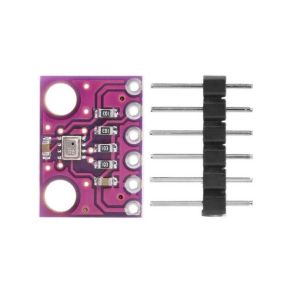

Pinout (Typical GY-BMP280 Module):

Note: VCC should not exceed 3.6V. Use level shifters if interfacing with 5V systems.
