Here's a complete description of a 100 RPM Double Shaft BO Motor:

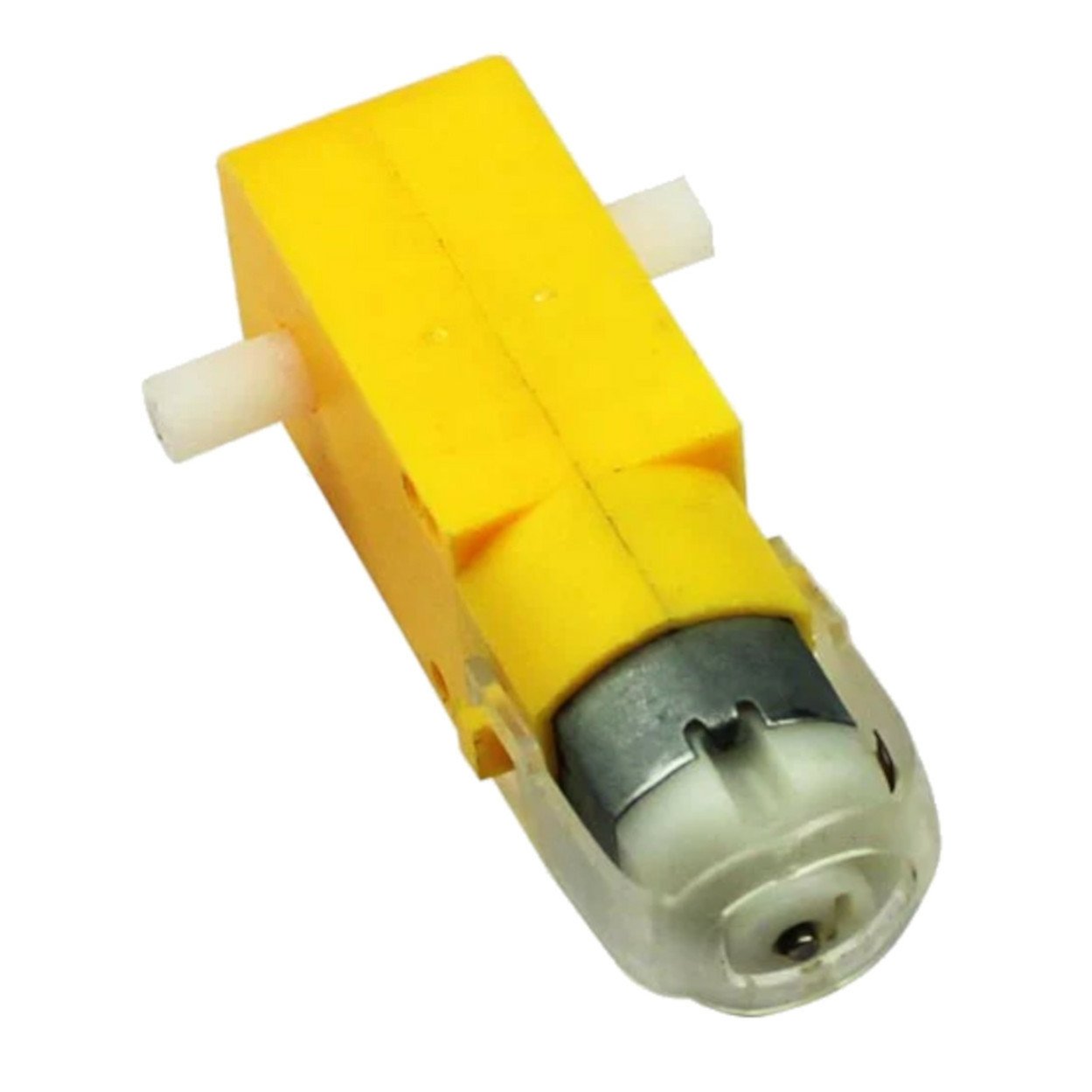

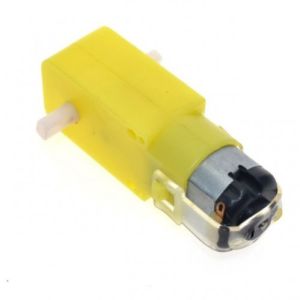

???? BO Motor – Double Shaft – 100 RPM

Description:

The 100 RPM Double Shaft BO Motor is a low-cost, compact DC geared motor designed for use in hobby electronics, educational kits, and small robot platforms. It features two output shafts (one on either side of the gearbox), allowing you to attach a wheel to one end and an encoder disc or second wheel to the other. This is useful in projects requiring motion tracking or balanced movement.

This motor operates in the voltage range of 3V to 12V DC, with its best performance typically around 6V. It has a gear reduction system that provides a rated speed of 100 RPM, suitable for moderate-speed robotic movement with light to medium loads.

⚙️ Technical Specifications:

• Operating Voltage: 3V – 12V DC

• No-Load Speed: 100 RPM @ 6V

• Torque: ~0.8 to 1.2 kg·cm

• No-Load Current: 40 – 180 mA

• Stall Current: Up to ~600 mA

• Shaft Type: Dual D-shaped shafts

• Shaft Diameter: 6 mm

• Shaft Length: ~7 – 8.5 mm each

• Gearbox Type: Plastic

• Motor Body Orientation: Straight (not L-shaped)

• Weight: ~35 grams

✅ Features:

• Dual shafts allow attachment of encoders, pulleys, or a second wheel

• Compatible with motor drivers like L293D, L298N, or motor shields

• Fits standard BO motor brackets and 65mm/70mm BO wheels

• Lightweight and energy-efficient

• Perfect for 2WD or 4WD chassis builds

• Easy to integrate into Arduino or Raspberry Pi projects

???? Applications:

• Line-following robots

• Obstacle-avoiding bots

• DIY robotic cars (2WD/4WD)

• Encoder-based speed or distance tracking

• Low-cost automation setups

⚠️ Note:

• Not suitable for high-load or industrial applications

• Use with proper motor driver ICs to avoid back EMF damage to microcontrollers

• Ideal for beginner to intermediate robotics
