Here's a typical description of a 60 RPM L-shaped BO motor used in DIY and robotic projects:

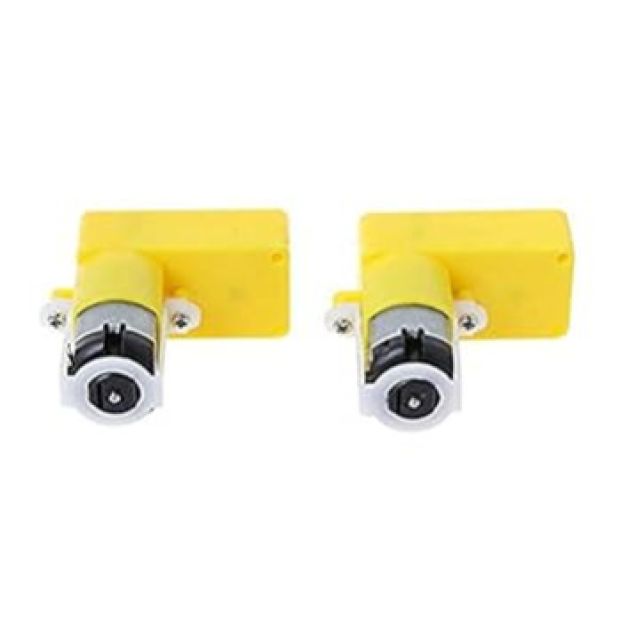

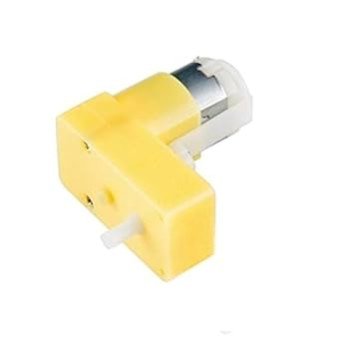

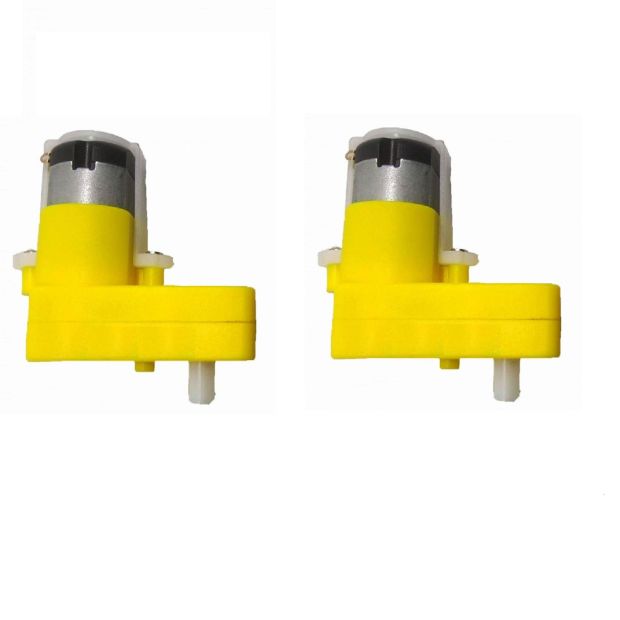

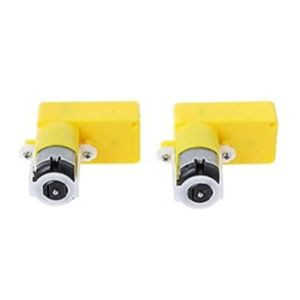

???? BO Motor L-Shaped – 60 RPM

Description:

The L-Shaped BO Motor (60 RPM) is a lightweight, low-cost DC geared motor commonly used in small robotics and hobby projects. The "L-shape" refers to the 90-degree angle between the motor and the gearbox, making it ideal for compact mounting in tight spaces.

It runs on a voltage range of 3V to 12V, with best performance around 6V–9V. The 60 RPM speed means the motor rotates the output shaft 60 times per minute under no-load conditions.

???? Features:

• Speed: 60 RPM (at 6V)

• Operating Voltage: 3V to 12V DC

• No-load Current: ~40–200 mA

• Stall Current: ~600–700 mA

• Torque: ~0.8 to 3.5 kg·cm (depends on brand)

• Motor Type: DC gear motor

• Gearbox: Plastic, in an L-shaped configuration

• Output Shaft: Single or dual shaft (often 6mm D-shaped)

• Mounting Holes: Present on the gear casing for easy chassis attachment

???? Applications:

• Mini and medium robot chassis

• Line following robots

• Object avoiding bots

• Educational STEM kits

• Arduino-based car projects

???? Notes:

• Typically paired with 65mm rubber wheels.

• Can be driven with an L298N, L293D, or Motor Shield.

• Ideal for light-load, low-speed applications.
