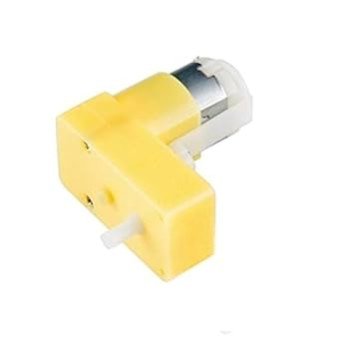

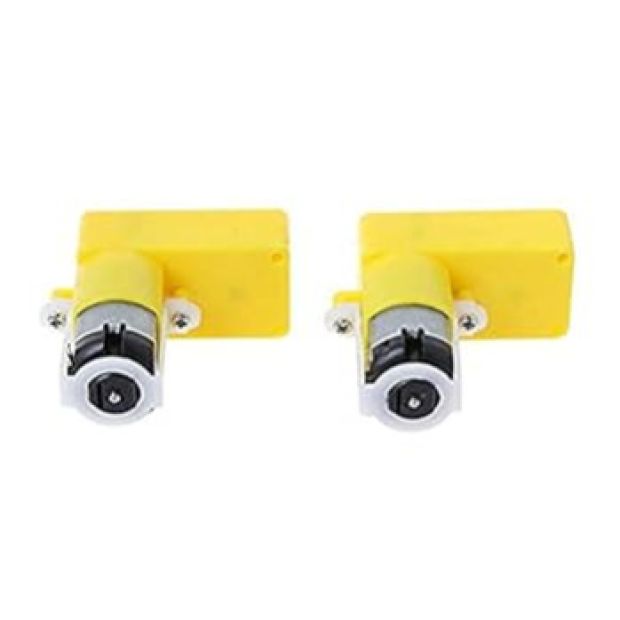

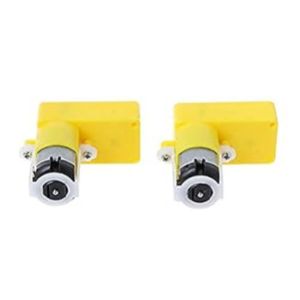

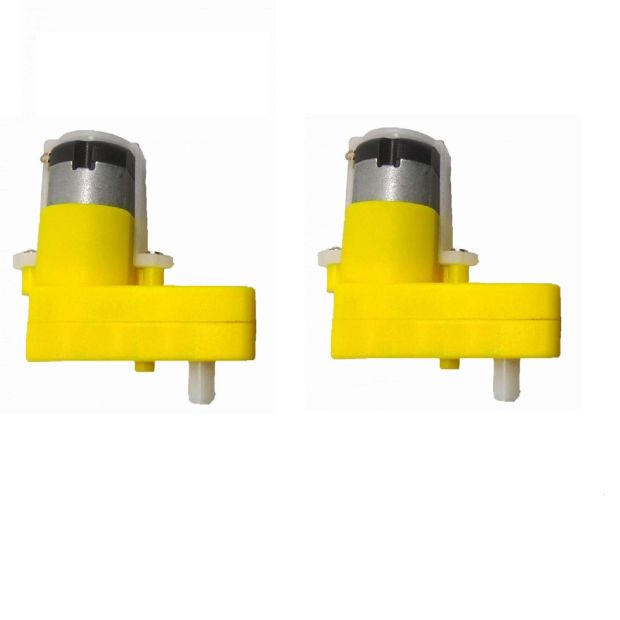

???? BO Motor L-Shaped – 100 RPM

Description:
The 100 RPM L-Shaped BO Motor is a compact, lightweight, and low-cost DC geared motor designed for small robotics and hobby projects. The L-shaped configuration positions the motor shaft at a 90° angle to the motor body, making it ideal for tight or compact robot chassis.

It provides a geared-down output speed of 100 RPM at 6V with moderate torque, making it perfect for applications that require a balance between speed and control. It is compatible with most motor drivers and operates on standard battery packs ranging from 3V to 12V.

⚙️ Technical Specifications:

• Operating Voltage: 3V – 12V DC

• Rated Speed: 100 RPM (at ~6V)

• Torque: ~0.8 to 1.2 kg·cm

• Shaft Diameter: 6 mm (D-shaped)

• Current (No Load): ~40–180 mA

• Gearbox Type: Plastic, L-shaped

• Weight: ~35 grams

• Mounting: Screw holes on gearbox casing

✅ Key Features:

• Economical and easy to use

• Low power consumption

• Compact L-shape saves space in tight robot designs

• Compatible with Arduino and Raspberry Pi motor driver shields

• Suitable for BO wheels, couplers, and plastic robot frames

???? Typical Applications:

• Line-following robots

• Obstacle-avoiding robots

• 2WD or 4WD small robotic vehicles

• Light-duty mobile platforms

• Educational kits and DIY electronics projects
