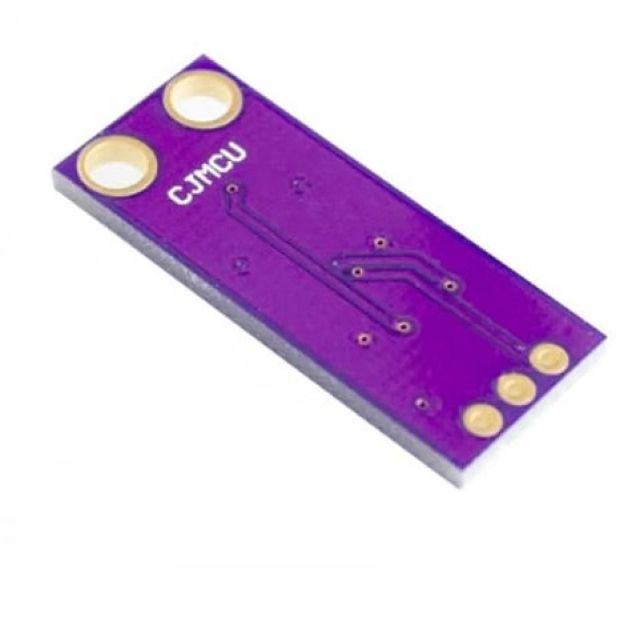

CJMCU-GUVA-S12SD Sunlight Ultraviolet Ray Intensity UV Detection Sensor Module

Accurately monitor solar ultraviolet radiation with the Electroboat CJMCU-GUVA-S12SD Sunlight UV Ray Intensity Sensor Module. Built with a specialized GaN-based Schottky photodiode and an onboard operational amplifier, this module detects UV radiation across the 240nm to 370nm spectral range (covering UV-B and UV-A spectrums). It outputs a linear analog voltage directly proportional to the UV index, making it ideal for weather stations, wearable solar meters, and environmental monitoring.

( No Reviews )

₹ 219 ^{₹ 299}

Order From Whatsapp

Seller Electro Boat

Tags cjmcu guva s12sd guva s12sd uv sensor sunlight uv intensity module analog uv sensor breakout electroboat uv sensor uv index detector module ultraviolet light sensor arduino

No Cancellation

No Returnable

Product Details :

The Electroboat CJMCU-GUVA-S12SD Sunlight UV Ray Intensity Sensor Module is a true UV light detection breakout designed to measure solar ultraviolet index levels and UV exposure. Unlike generic light sensors that approximate UV using visible light algorithms, this module uses an authentic Schottky-type semiconductor photodiode that responds selectively to ultraviolet wavelengths between 240nm and 370nm.

The module incorporates an onboard signal conditioning amplifier to boost the tiny photocurrent generated by the photodiode into a clean 0V to 1V+ linear analog output signal. Because the output voltage scales linearly with solar UV light intensity, microcontrollers such as Arduino, ESP32, STM32, and Raspberry Pi can calculate the real-time UV Index directly by reading the analog voltage line.

Key Features and Benefits

True Spectral Sensitivity (240nm to 370nm): Accurately captures UV-B (280–315nm), most of UV-A (315–400nm), and upper UV-C spectrums.
Linear Analog Voltage Output: Produces a calibrated voltage output that correlates directly to the UV Index for simple code calculations.
Wide Operating Voltage (2.5V to 5.0V DC): Integrates easily with both 3.3V logic (ESP32/Raspberry Pi) and 5V microcontrollers (Arduino Uno/Nano).
Ultra-Low Power Consumption: Operates at microamp-level current draw, rendering it ideal for outdoor, battery-powered, or solar-charged IoT nodes.
Wide 130° Detection Angle: Captures ambient sunlight effectively without requiring strict directional alignment.

Technical Specifications

Parameter	Specification
Sensor Photodiode	GUVA-S12SD (Gallium Nitride Schottky Type)
Spectral Detection Range	240 nm to 370 nm (UV-A & UV-B)
Operating Voltage (VCC)	2.5V to 5.0V DC
Response Time	< 0.5 Seconds
Detection Angle	130 Degrees
Output Type	Analog Voltage (Linear relationship to UV Index)
Operating Temperature	-30°C to +85°C

How to Use

Power Supply: Connect the VCC pin to a 3.3V or 5V power source and GND to common circuit ground.
Signal Connection: Connect the SIG (or OUT) pin to an analog input pin on your microcontroller (e.g., A0 on Arduino).
Calculating UV Index: Sample the analog output voltage ( $V_{OUT}$ ). Convert the reading into the UV Index using the linear relationship:

$ext{UV Index} pprox rac{V_{OUT} ( ext{in Volts})}{0.1 ext{V}}$

(For example, an output of 0.5V corresponds roughly to a UV Index of 5).

Applications

Outdoor Environmental Weather Stations & Smart Agriculture Monitoring
Personal Solar UV Index Exposure Meters & Smart Health Wearables
UV Lamp, Sterilization, and Germicidal Light Intensity Verification
Outdoor Sports Equipment & Solar Shading Automation
STEM Electronics, Robotics, and Environmental Research Projects

Package Includes

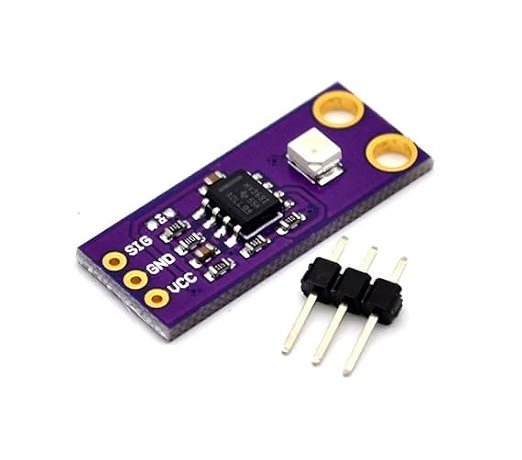

1 x CJMCU-GUVA-S12SD Sunlight UV Intensity Sensor Module
1 x 3-Pin Straight Male Berg Header (2.54mm Pitch)

Shipping & Delivery

Free shipping on orders above ₹999 across India.
Dispatched within 1-3 business days.
Expected delivery: 3-7 business days depending on location.
Secure ESD and cushioned packaging to ensure safe transit of electronic components.
