Detailed Description

The Mechanical Endstop Limit Switch Module is a foundational hardware component designed to establish safe operating boundaries for automated linear motion systems. When a 3D printer or desktop CNC machine is first powered on, its controller board has no inherent awareness of where the toolhead or print bed is located in physical space. This mechanical endstop module acts as the machine's physical sensor network. When a moving axis returns to its starting coordinates (the "home" position), a structural frame element hits the flexible steel lever arm of the micro switch. This instantly toggles an electrical signal to notify the controller board to halt the stepper motors.

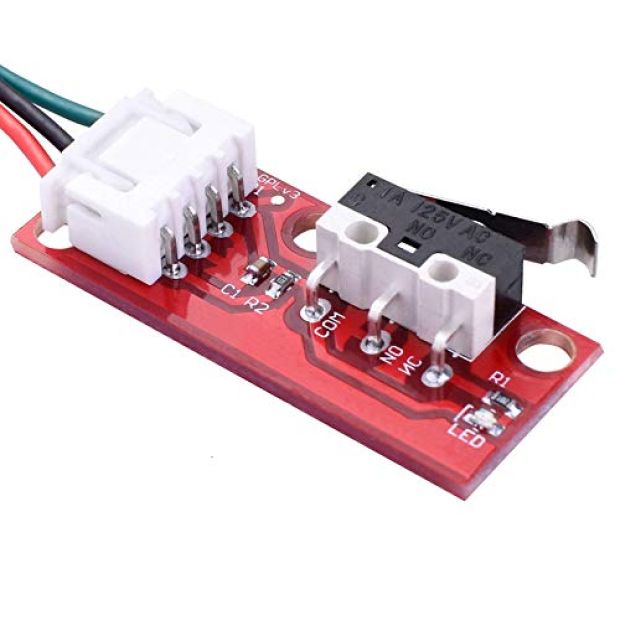

This breakout board configuration provides significant stability upgrades over raw, unmounted micro switches. It features an onboard red status LED indicator that lights up instantly when the switch is physically triggered, allowing for fast diagnostic checks and mechanical alignment without opening up your main electronics enclosure. Built with native Normally Open (NO) and Normally Closed (NC) physical layouts configured for structural noise immunity, the module includes an anti-chatter pull-up framework to prevent electronic EMI noise from causing false emergency stops near high-voltage stepper motor cables.

Key Features and Benefits

• Instantaneous Homing Precision: Uses high-sensitivity internal snap-action copper contacts to deliver repeatable physical position accuracy, ensuring perfect print layer alignment and zero-point calibration.

• Onboard Diagnostic LED: Populated with an integrated status LED that gives you immediate visual confirmation when an axis strikes the limit boundary, simplifying machine troubleshooting.

• Plug-and-Play Cable Included: Shipped with a generous 50cm pre-terminated 3-pin connecting wire harness, allowing for direct installation without tedious soldering or manual crimping.

• Robust Noise Isolation: Built-in hardware filtering components guard the signaling line against electromagnetic interference (EMI) generated by nearby stepper motors and hotend heaters.

• Universal Firmware Support: Fully compatible with standard open-source control firmwares such as Marlin, Repetier, and GRBL running on RAMPS, MKS Gen L, or Arduino CNC shields.

Technical Specifications

How to Use

⚠️ PINOUT POLARITY WARNING: Pay close attention to the labeling on your specific microcontroller shield (such as RAMPS 1.4 or CNC Shield V3) before plugging in the cable. Inverting the VCC (Power) and GND (Ground) lines when connecting the 3-pin interface can cause a direct short circuit when the switch is depressed, which will permanently damage your controller board's voltage regulator.

Standard Module Pinout Mapping:

• VCC (+): Power Input (+5V or +3.3V matching the controller logic).

• GND (-): Common Ground reference connection.

• SIG (S): Digital Logic Signal Output (Changes state when the switch lever is depressed).

Quick Setup Integration Steps:

1. Securely mount the endstop module to your 3D printer or CNC frame rail using M3 screws, placing it at the absolute physical minimum or maximum travel limit of the X, Y, or Z axis.

2. Plug the 3-pin connector cable into the white keyed header matching the module's edge interface.

3. Connect the opposite end of the wire harness to your control board:

   • Align VCC to the controller's endstop power pin.

   • Align GND to the controller's endstop ground pin.

   • Align SIG to the corresponding axis logic input pin (e.g., X-Min, Y-Min, or Z-Min).

4. Firmware Calibration: Open your configuration file (e.g., Configuration.h in Marlin). Look for the Endstop Inverting section and set the logic state (true or false) to match whether your board expects an active-high or active-low signal based on your wiring setup. Manually press the switch while sending the M119 G-code command over a serial console to test the state change before executing your first homing routine.

Applications

• DIY 3D Printer Builds: Acts as the X, Y, and Z axis homing sensors on custom RepRap, Prusa i3, CoreXY, and Voron 3D printer models.

• Desktop CNC Routers & Engravers: Sets home orientation coordinates and safeguards mechanical components on small wood-carving or PCB milling machines.

• Laser Cutters & Engravers: Installs on gantry tracks to safely contain high-voltage laser carriage assemblies within the safe physical path of the working enclosure.

• Custom Linear Actuators: Used in industrial slider beds, motorized camera dollies, and automated linear pushing blocks to prevent mechanical binding at travel extremes.

Package Includes

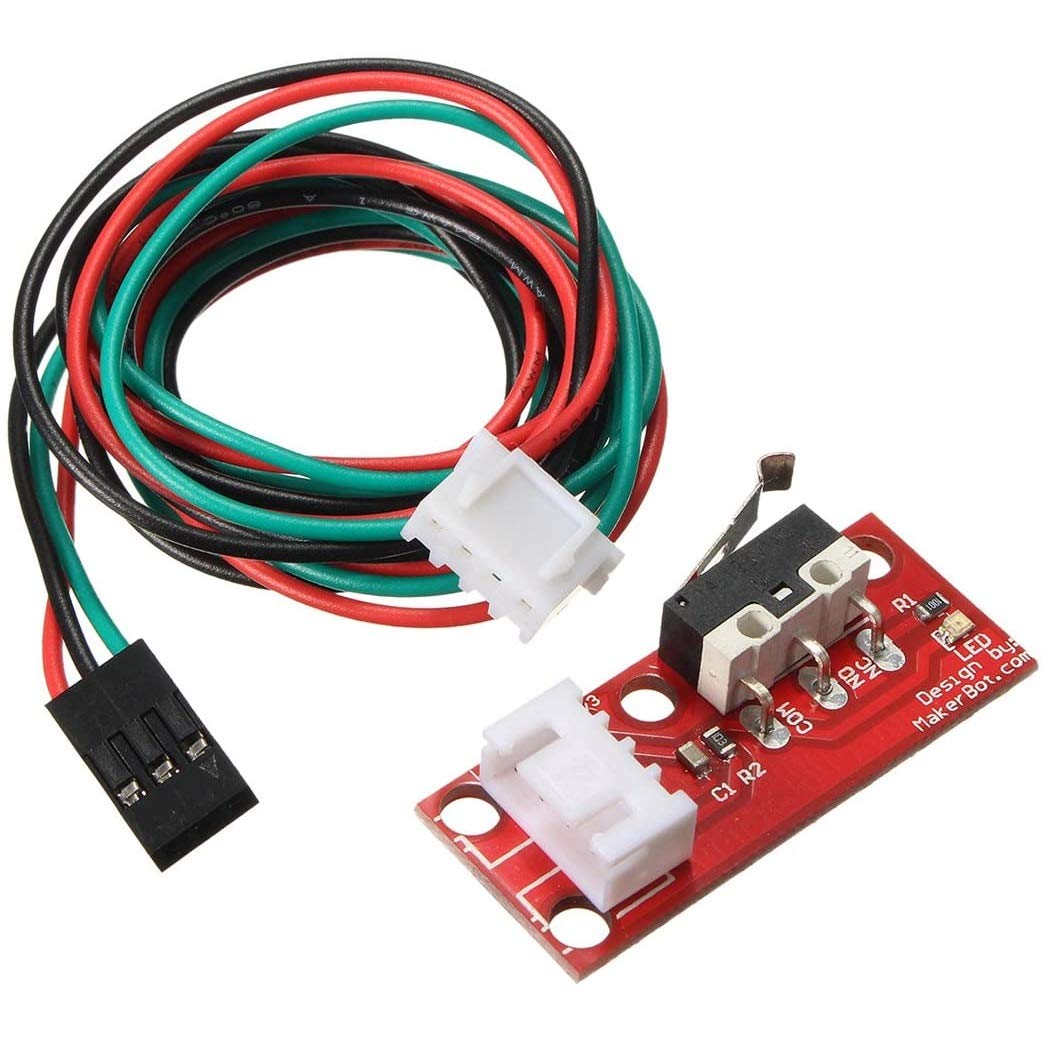

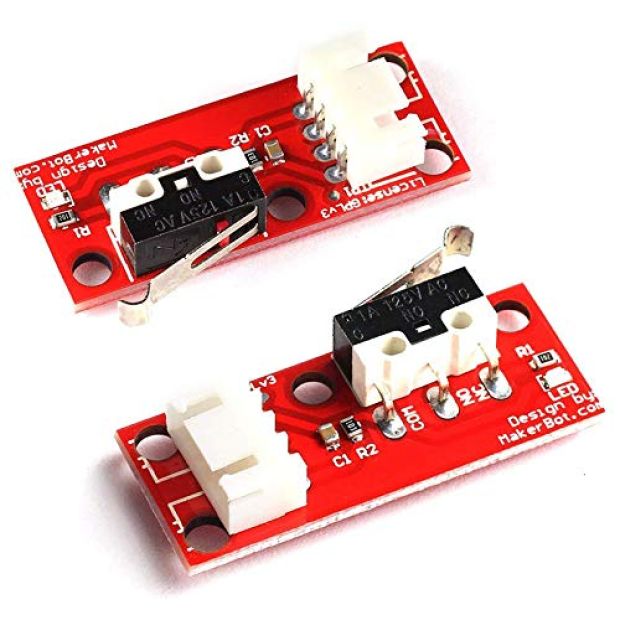

• 1 x Mechanical Endstop Limit Switch Breakout Module

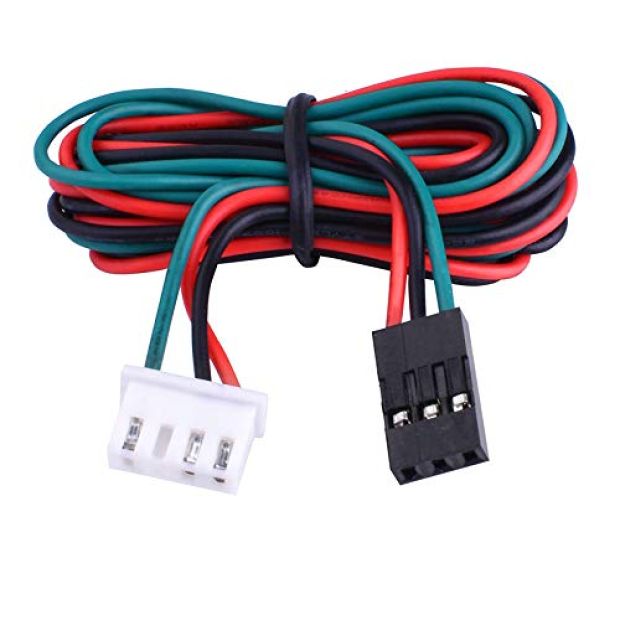

• 1 x 3-Pin 50cm Connecting Cable Harness
