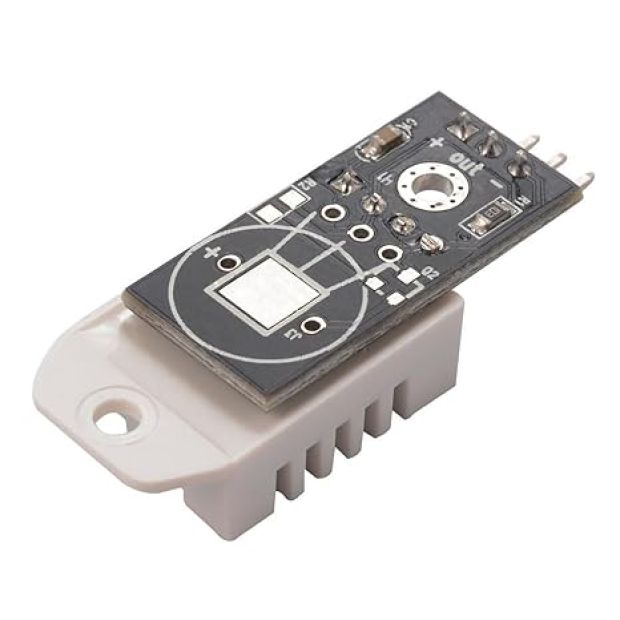

The DHT22 (AM2302) High-Accuracy Digital Temperature and Humidity Sensor Module is an advanced, pre-calibrated environmental sensing component engineered to deliver superior range and accuracy compared to standard entry-level sensors like the DHT11. Housed within a rugged, well-ventilated plastic casing, the module houses a capacitive polymer sensing element for tracking relative humidity alongside a high-precision NTC thermistor for temperature capture. An onboard 8-bit microcontroller processes these raw analog fluctuations, applies factory-calibrated coefficients stored in internal OTP memory, and converts them into a clean digital data stream.

This component relies on a custom single-wire (1-Wire style) serial bus format to broadcast data packages. This means it only requires one digital I/O pin on your microcontroller to process both temperature and humidity packets, significantly reducing wire routing complexity. Thanks to the integrated signal-filtering hardware on the module board, it supports long-distance signal transmission layouts up to 20 meters, allowing you to place the sensor head deep inside ventilation ducts or agricultural greenhouses while keeping your main logic boards safe inside a central control box.

Key Features & Benefits:

• Superior Accuracy Specifications: Offers a highly precise ±2% Relative Humidity accuracy margin and a tight ±0.5°C temperature resolution, easily outperforming standard entry-level alternatives.

• Full-Scale Operating Spectrum: Captures sub-zero temperatures down to -40°C and tracks up to +80°C, enabling reliable operation in industrial refrigeration units or extreme summer heatwaves.

• Streamlined Single-Bus Wiring: Condenses your telemetry lines into a single digital data link, freeing up valuable processing pins for additional relays or displays.

• Excellent Long-Term Stability: The capacitive sensing array is highly resistant to chemical contamination, ensuring your data outputs won't drift out of calibration after months of continuous deployment.

Technical Specifications

How to Use

The DHT22 / AM2302 Module uses a single-wire serial interface for data transmission. Every data packet consists of 40 bits: 16 bits for humidity data, 16 bits for temperature data, and 8 bits for a parity checksum to guarantee error-free readings.

Pinout Configuration:

• VCC (+): Connect to 3.3V or 5V DC power supply.

• GND (-): Connect to common system ground.

• DAT (Out): Digital Data output line. Connect to any digital I/O pin on your microcontroller.

Basic Setup and Software Integration:

Because the module includes an onboard pull-up resistor between the Data and VCC line, you can wire it directly to your controller board using simple female-to-male jumper wires.

1. Connect VCC and GND to your microcontroller's power pins.

2. Connect the DAT pin to a digital input pin (e.g., Digital Pin 2 on an Arduino).

3. Install an open-source library, such as the DHT sensor library by Adafruit, in your development environment.

4. Set the sensor type parameter to DHT22 in your setup script.

5. Use functions like dht.readTemperature() and dht.readHumidity() to query the environment. Ensure your polling loop includes a delay of at least 2 seconds between sequential read commands to accommodate the sensor's sampling rate.

Common Applications

Thanks to its excellent long-term stability, digital calibration, and high-accuracy thresholds, this sensor module is a vital component for environmental tracking loops:

• Smart Weather Stations: Gathering hyper-local climate logs to display on OLED screens or stream to online databases.

• Greenhouse & Hydroponics Automation: Triggering exhaust fans, misting nozzles, or water pumps when humidity or temperature drifts outside optimal cultivation bounds.

• Egg Incubator Controllers: Maintaining precise, locked-in temperature and humidity parameters critical for hatching cycles.

• HVAC and Home Automation: Interfacing with smart thermostats to monitor room environments and manage air conditioning systems.

• Server Room Monitoring: Acting as an automated safety alert to notify IT staff if thermal cooling systems fail.

Package Includes

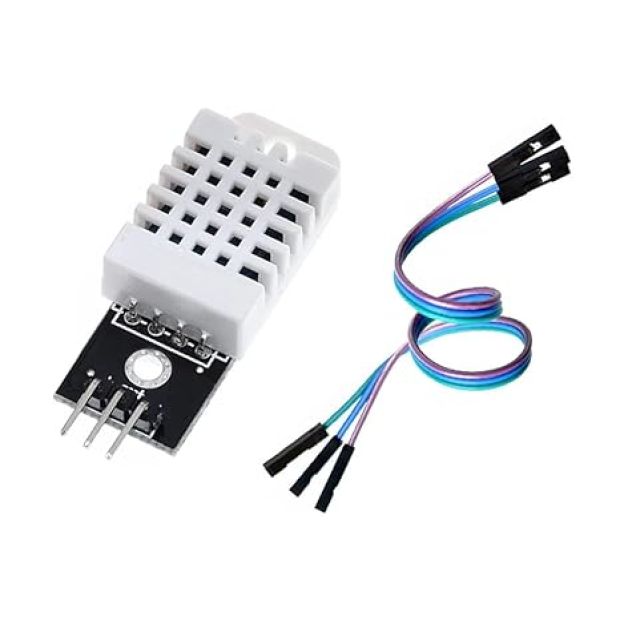

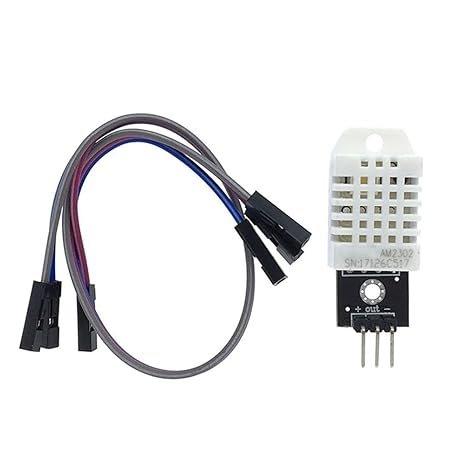

• 1 x DHT22 Digital Temperature and Humidity Sensor Module (AM2302 Breakout Board)

• 1 x 3-Pin Female-to-Female Jumper Wire harness
