Explanation of each component included in the Quadcopter DIY Drone Combo Kit for Beginner in more detail:

F450 Frame:

The F450 Frame is the main structure of the quadcopter. It is a DJI-type sturdy yet lightweight frame with a 450mm diameter. This frame is designed to be capable of surviving repeated crashes and offers a good balance between strength and weight. The optimized frame design allows for customization and expansion with autopilot systems and DJI gadgets, making it suitable for various projects and applications.

1000Kv BLDC Motor:

This kit includes four 1000Kv Brushless DC (BLDC) Motors. BLDC motors are widely used in drones due to their high efficiency, low maintenance, and better power-to-weight ratio. The "Kv" rating represents the motor's speed constant, indicating the motor's rotational speed per volt applied.

ESC:

The kit provides four Electronic Speed Controllers (ESCs), one for each motor. ESCs are essential for controlling the speed and direction of the motors. These brushless ESCs are pre-programmed from the factory, ensuring convenience and ease of use.

2-3 Cell Battery Charger:

This is a battery charger that is compatible with 2-3 cell Lithium Polymer (LiPo) batteries. LiPo batteries are commonly used in drones due to their high energy density and lightweight properties.

2200 mAh Lipo Battery:

The kit comes with a 2200mAh Lithium Polymer (LiPo) battery. LiPo batteries are commonly used in drones as they provide a high energy output for their weight, allowing for longer flight times.

Fly Sky FS-CT6B 6ch 2.4GHz Transmitter & Receiver:

The Fly Sky FS-CT6B is a 6-channel 2.4GHz transmitter and receiver system. The transmitter is used to control the quadcopter, and the receiver receives the signals from the transmitter and relays them to the flight controller.

KK2.1.5 Flight Controller:

The KK2.1.5 Flight Controller is the brain of the quadcopter. It is responsible for stabilizing the drone during flight, maintaining stability, and processing the signals from the transmitter to control the motors.

XT60 Male Connector:

The XT60 Male Connector is used for connecting the LiPo battery to the power distribution board of the quadcopter.

Propeller (2CW, 2CCW):

The kit includes four propellers, with two clockwise (CW) and two counterclockwise (CCW) rotation propellers. The correct combination of CW and CCW propellers is essential for the quadcopter to achieve stable flight.

These components, when assembled together, form the basic structure and control system of the quadcopter, allowing you to build and customize your own drone for various applications.

Perfect for School and College Projects

Whether you're a student or an enthusiast, this kit is ideal for school and college projects. It brings together all the necessary components in one place, making it a breeze to build your very own quadcopter.

Unleash Your Creativity

Building your own drone is an exhilarating experience, one that allows you to bring your imagination to life. Create stunning aerial videos, explore uncharted territories, and capture breathtaking moments from a whole new perspective.

Technical Specifications:

How to Use:

1. Assemble the frame using screws and spacers.

2. Mount motors and solder ESC connections.

3. Connect ESCs and receiver to flight controller.

4. Calibrate via Betaflight / Cleanflight software.

5. Attach the FPV camera and set up video transmitter (if included).

6. Insert battery and bind RC controller to receiver.

7. Perform pre-flight checks and fly in a safe area.

Applications:

• Aerial photography & video streaming

• FPV drone racing and obstacle navigation

• DIY projects for engineering, robotics, and electronics

• STEM education and tech competitions

• Prototype development for autonomous drones

• Learning flight control systems and calibration

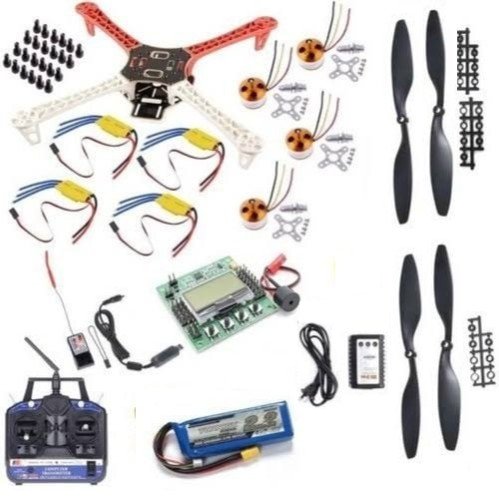

Package Includes: (Contents may vary by kit version)

• 1 x F450 Frame
• 4 x 1000kv BLDC Motor
• 4 x ESC Motor
• 1 x 2-3 Cell Battery Charger
• 1 x 2200 mAh Lipo Battery
• 1 x Fly Sky FS-CT6B 6ch 2.4GHz Transmitter & Receiver
• 1 x KK2.1.5 Flight Controller
• 1 x XT60 Male Connector
• 4 x Propellor (2CW, 2CCW )
