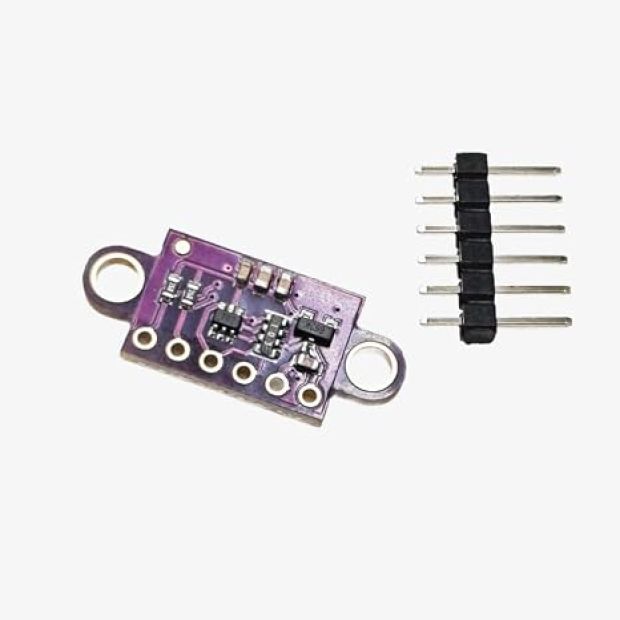

GY-53 VL53L0X Laser Time-of-Flight (ToF) Distance Ranging Sensor Module

Experience millimeter-level distance tracking with the GY-53 VL53L0X Laser Time-of-Flight (ToF) Distance Ranging Sensor Module. Powered by STMicroelectronics' patented FlightSense™ technology and an onboard STM32 pre-processor, this module computes target distances up to 2 meters independent of color, size, or surface reflectivity. Unlike standard infrared sensors prone to linearity issues, it counts the actual travel time of an invisible 940nm laser beam. With flexible UART Serial, PWM, and I2C interfaces, it is the perfect solution for obstacle avoidance in drones, automated robotic navigation, and gesture control panels.

( No Reviews )

₹ 537 ^{₹ 619}

Order From Whatsapp

Seller Electro Boat

Tags GY-53 Sensor VL53L0X Laser Breakout Time of Flight Sensor LiDAR Distance Module GY-53 Arduino Serial PWM Distance Mic VL53L0X STM32 Board Laser Ranging Sensor India Robotic Obstacle Sensor

No Cancellation

No Returnable

Product Details :

Detailed Description

The GY-53 VL53L0X Laser ToF Distance Ranging Sensor Module is a low-cost, high-precision optical telemetry asset designed to remove processing barriers from distance verification setups. Traditional ultrasonic sensors bounce sound cones that fail on angled targets, while analog infrared breakouts interpret distance based on reflected light intensity—making black objects look farther away than white ones. The GY-53 bypasses these mechanical vulnerabilities completely by utilizing Time-of-Flight (ToF) tracking. It pulses a 940nm Class 1 safe laser, measures the exact picoseconds required for photons to bounce back to its Single Photon Avalanche Diode (SPAD) array, and computes absolute physical distance.

What sets the GY-53 apart from raw VL53L0X breakout chips is its built-in STM32 microcontroller processing core. Instead of overwhelming your main microcontroller with complex I2C library calibration sequences and register polling, the GY-53’s onboard processor handles raw calculations natively. It translates laser timelines into direct distance metrics, allowing you to read measurements using a simple single-wire PWM pulse duration or direct UART Serial text commands. For complex operations, the board includes a mode-selection jumper (PS) to bypass the microcontroller and access the core VL53L0X I2C register lines natively.

Key Features and Benefits

Reflectance-Independent Telemetry: Measures absolute physical distances with flat linearity, completely unaffected by target color, optical surface finish, or structural reflectivity variations.
Smart Onboard STM32 Coprocessor: Frees up memory on your host microcontroller by handling raw sensor calibrations and processing filters internally on the module.
Three Flexible Interface Routings: Supports standard UART Serial (TTL), automated PWM single-line duty tracking, and raw I2C data output configurations to fit any hardware environment.
Safe Invisible 940nm Emitter: Emits an infrared vertical-cavity surface-emitting laser (VCSEL) that is totally invisible to the human eye and fully complies with Class 1 laser safety standards.
Integrated Level-Shifting Circuitry: Employs an on-board low-dropout regulator and safety level shifters, making it safely compatible with both 3.3V and 5V operating architectures without requiring external hardware.

Technical Specifications

Feature Component	Specification Details
Core Optical Sensor	STMicroelectronics VL53L0X (FlightSense Architecture)
Integrated Processing Unit	STM32 Microprocessor Core (Handles Internal Math Blocks)
Absolute Measuring Range	$0 ext{ to }2.0 ext{ meters}$ ( $2000 ext{ mm}$ maximum threshold in dark settings)
Operational Refresh Rate	Up to 22ms maximum update clock cycles (≈ $pprox 45 ext{Hz}$ )
Operating Input Voltage	$3.0 ext{V to }5.0 ext{V}$ DC Maximum Limits
Active Quiescent Current Draw	$pprox 25 ext{ mA}$ typical during active conversion loops
Communication Selection Modes	UART Serial Terminal / PWM Pulse Width / Native I2C
Default Factory Baud Rate	9600 bps (Configurable via commands up to 115200 bps)
Field of View (FoV)	$25^circ$ Narrow Optical Tracking Target Cone
Operating Temperature Tolerance	$-20^circ ext{C to }85^circ ext{C}$ environmental range

How to Use

⚠️ OPERATION CLEANING NOTICE: Every module ships with an ultra-thin protective clear polymer film covering the optical lens element to prevent scratching. You must gently peel off this protective film before using the sensor. Leaving it on will blind the receiver, causing erratic data loops or fixed out-of-range errors.

Physical Pinout Connections (12-Pin Extended Array):

VCC: Power Input ( $3 ext{V to }5 ext{V}$ DC input).
GND: Circuit Ground common link.
TX: UART Serial data transmitter output (Outputs hexadecimal distance blocks).
RX: UART Serial input receiver pin (Accepts system configuration adjustments).
PWM: Outputs distance values as a direct proportional pulse length.
PS: Mode selection control pin. Leave floating/HIGH for Serial/PWM mode; tie to GND to switch to raw I2C communication.
XSHUT / GPIO1 / SDA / SCL: Auxiliary lines directly linked to the internal VL53L0X chip for raw I2C operation.

Quick Setup Prototyping Steps (Using PWM Mode on an Arduino):

Solder the included 0.1" header row to the interface edge of the GY-53 module.
Wire the module to your microcontroller (e.g., an Arduino Uno) using the following pin map:
- Connect VCC to the Arduino 5V or 3.3V power pin.
- Connect GND to an Arduino GND terminal pin.
- Connect the module PWM pin to an Arduino digital pin (e.g., Digital Pin 5).
Leave the PS pin disconnected to ensure the onboard STM32 runs its default automated calculation firmware.
Deploy the Timing Sketch: Open your Arduino IDE. Use a code snippet containing the native pulseIn(pin, HIGH) command. The sensor returns a pulse width duration in microseconds; simply divide this returned raw time metric by 10 within your loop script to log real-time target clearances directly in millimeters (mm).

Applications

Autonomous Quadcopter Navigation: Acts as an ultra-lightweight altimeter or down-facing landing assistant to manage steady altitude holds.
Robotic Wall and Obstacle Avoidance: Fits onto autonomous rovers to provide tight, wall-hugging navigation paths and high-speed braking capabilities.
Touchless Smart Proximity Switche: Easily installs behind transparent display windows or plexiglass layers to execute touch-free gestures, activation plates, or public hand-sanitizer pumps.
Industrial Inventory Profiling: Mounted over conveyor tracks to safely count passing items, check volumetric sizing metrics, or trace container filling heights.
