Detailed Description

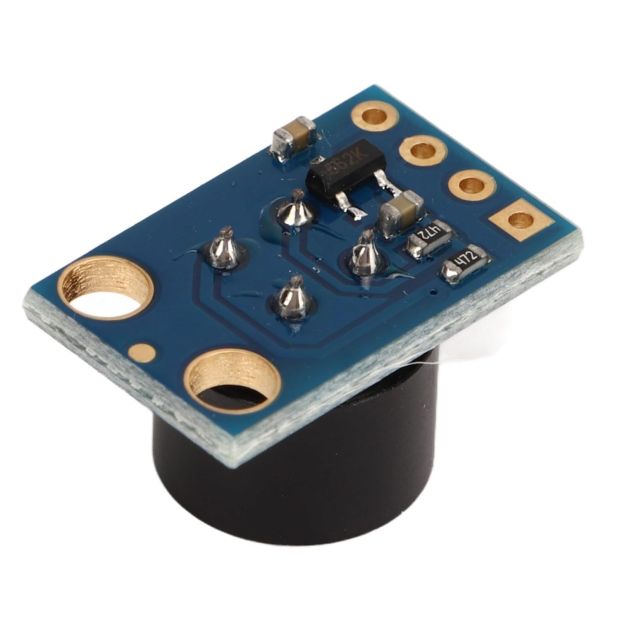

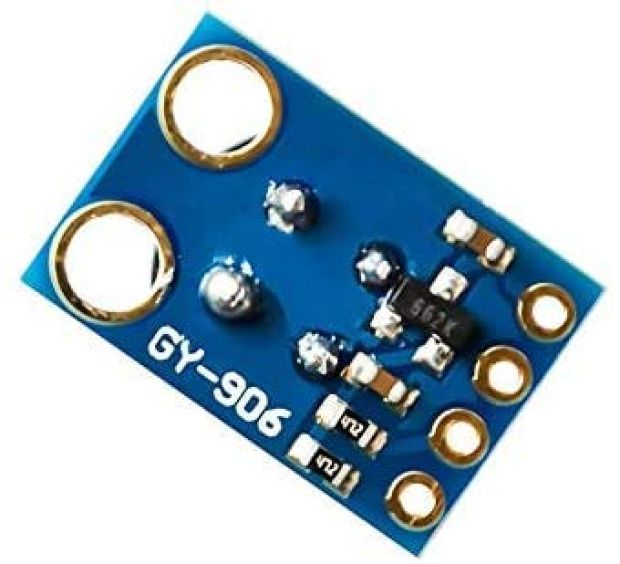

The GY-906 MLX90614ESF-BCC Non-Contact Infrared Temperature Sensor Module is an industry-standard, high-precision thermal measurement instrument engineered by Melexis to track temperatures safely without physical connection. Standard infrared sensors frequently suffer from internal drift. When the sensor breakout board absorbs stray thermal waves from its own power regulators or localized components, its baseline reference shifts. The specialized BCC architecture overcomes this completely by embedding hard-coded Thermal Gradient Compensation calculations into its internal Digital Signal Processor (DSP) array. This feature allows the chip to intelligently calculate and cancel out its own thermal shifts, ensuring rock-solid measurements.

The module operates by focusing collected infrared radiation onto an internal thermopile sensor layout. While standard base configurations present a broad 90° window that blends surrounding ambient environments into the reading, the BCC variant implements a tight 35° optical Field of View (FoV). This allows you to easily target individual surfaces from optimal 4cm to 10cm distances without pulling in unwanted background interference. The raw voltage from the thermopile passes directly into a low-noise amplifier, is converted by a high-fidelity 17-bit ADC, and outputs simultaneously through an industry-standard SMBus/I2C communication channel.

Key Features and Benefits

• Advanced "BCC" Engineering: Features factory-calibrated Thermal Gradient Compensation to keep readings steady in environments with fluctuating ambient temperatures.

• Focused 35° Optics: The narrow, precise field of view isolates targets from a safe distance, making it ideal for medical fever screening.

• Simultaneous Dual-Zone Data: Concurrently samples and pushes two independent data metrics: the remote object's temperature and the sensor's own ambient chassis temperature.

• Ultra-High 0.02°C Internal Resolution: Delivers exceptional sensitivity and data parsing capabilities via an integrated 17-bit analog-to-digital converter.

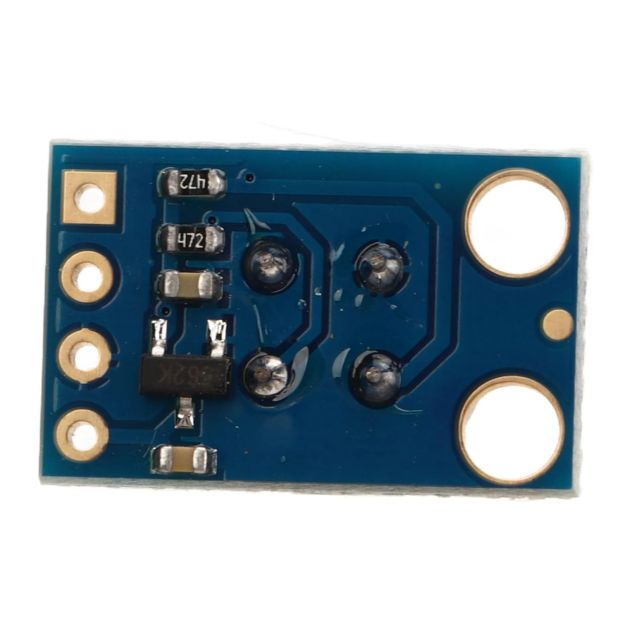

• Logic-Safe Power Regulation: Includes an onboard low-dropout voltage regulator and 10k I2C pull-up resistors, making the module drop-in compatible with both 3.3V and 5V microcontrollers.

Technical Specifications

How to Configure & Wire

⚠️ CRITICAL SENSING CONSTRAINT: Infrared sensors register thermal radiation wavelengths and cannot see through glass windows or transparent plastic barriers. If you point the GY-906 at an object through a glass pane, it will report the temperature of the glass shield itself rather than the target surface behind it. Keep the optical path clear for accurate data.

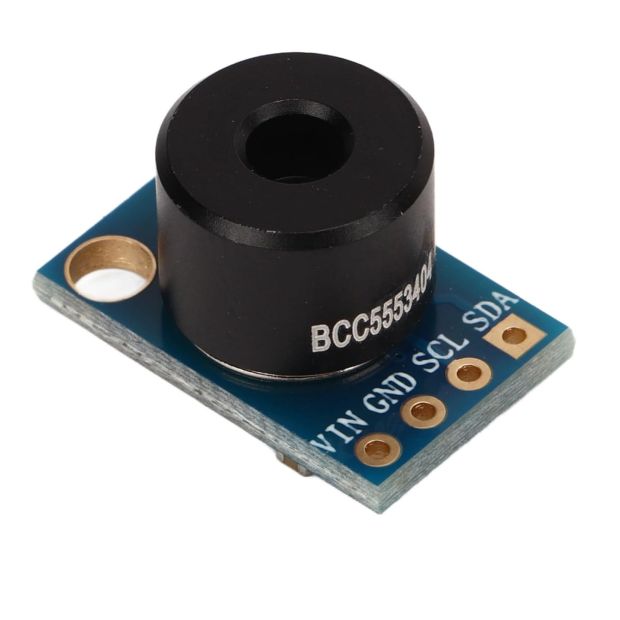

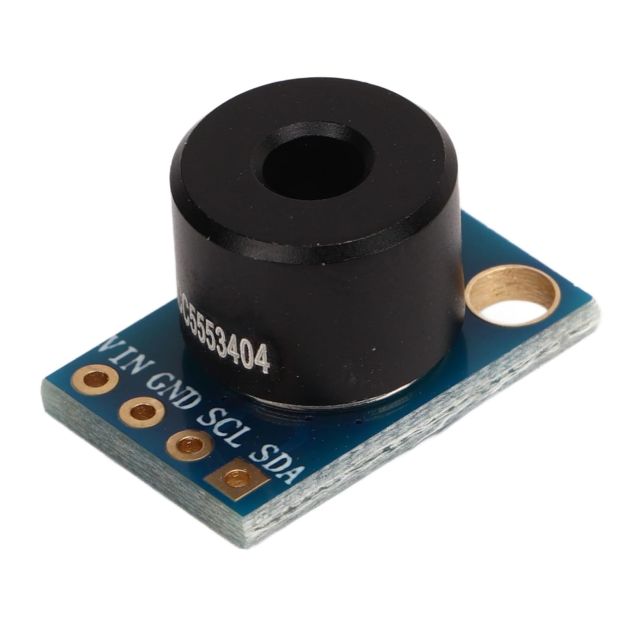

Module Pinout Identification:

• VIN: Regulated power input line (+3.3V to +5V DC).

• GND: Common system ground reference.

• SCL: I2C Hardware Serial Clock line (Features onboard 10k pull-up resistor).

• SDA: I2C Hardware Serial Data line (Features onboard 10k pull-up resistor).

Quick Setup Prototyping Steps:

1. Connect VIN to your microcontroller's 5V or 3.3V power rail, and match GND to the system ground line.

2. Wire the SCL pin to your microcontroller's I2C clock line (e.g., Uno A5 / ESP32 GPIO 22). Wire the SDA pin to your I2C data line (e.g., Uno A4 / ESP32 GPIO 21).

3. Open your Arduino IDE, search the Library Manager for "Adafruit MLX90614", and click install.

4. Upload the sample code block below. Open your Serial Monitor at 9600 bps to view concurrent live streams of target surface data:

#include <Wire.h>
#include <Adafruit_MLX90614.h>

Adafruit_MLX90614 mlx = Adafruit_MLX90614();

void setup() {
  Serial.begin(9600);
  Serial.println("Initializing Electroboat GY-906 I2C Interface...");

  if (!mlx.begin()) {
    Serial.println("Error: Connection failure. Check wiring paths.");
    while (1);
  };

  Serial.println("MLX90614 Sensor Online. Pushing real-time readings:");
}

void loop() {
  // Read and print ambient and target object temperatures over the I2C interface
  Serial.print("Ambient Room Temp: ");
  Serial.print(mlx.readAmbientTempC());
  Serial.print(" °C | Target Surface Temp: ");
  Serial.print(mlx.readObjectTempC());
  Serial.println(" °C");

  delay(1000); // Wait 1 second between updates
}

Applications

• Medical Screening Instruments: Powers contactless digital forehead thermometers, automated entry arches, and hand sanitizing verification kiosks.

• Industrial Maintenance Nodes: Safely monitors high-voltage busbars, distribution transformers, and spinning motor bearings from a distance.

• Smart Building Comfort HVAC: Gathers highly accurate radiant heat data to optimize multi-zone HVAC dampers and ducted air-conditioning balancing.

• Livestock Health Diagnostics: Provides non-contact, stress-free health tracking for cattle, poultry, and domestic pets by monitoring surface skin temperatures automatically.

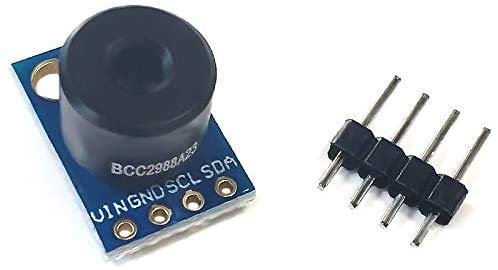

Package Includes

• 1 x GY-906 MLX90614ESF-BCC Non-Contact IR Temperature Sensor Board

• 1 x 4-Pin Straight Male Breakout Header Strip
