Hi-Link HLK-20M24 24V 20W AC to DC Step-Down Switch Power Supply Module

Power high-voltage relays, industrial sensors, and 24V automation equipment directly from mains power with the Hi-Link HLK-20M24 24V 20W Switch Power Supply Module. Designed as a compact, PCB-mount isolated AC-DC step-down converter, it transforms wide universal input AC voltages ( $90 ext{V}$ to $264 ext{V AC}$ ) into a regulated, low-ripple 24V DC output at up to 833mA (20W). Featuring flame-retardant encapsulation, robust overload/short-circuit protection, ultra-low standby power consumption ( $<0.1 ext{W}$ no-load), and $3000 ext{V AC}$ input-to-output isolation, it is the premier choice for industrial controls, home automation hubs, and embedded equipment.

( No Reviews )

₹ 365 ^{₹ 499}

Order From Whatsapp

Seller Electro Boat

Tags Hi Link HLK 20M24 HLK-20M24 24V 20W AC DC Step Down Module 24V 833mA Power Module Isolated SMPS Module PCB Mount AC DC Converter 24V Industrial Power Supply Smart Home Power Module

No Cancellation

No Returnable

Product Details :

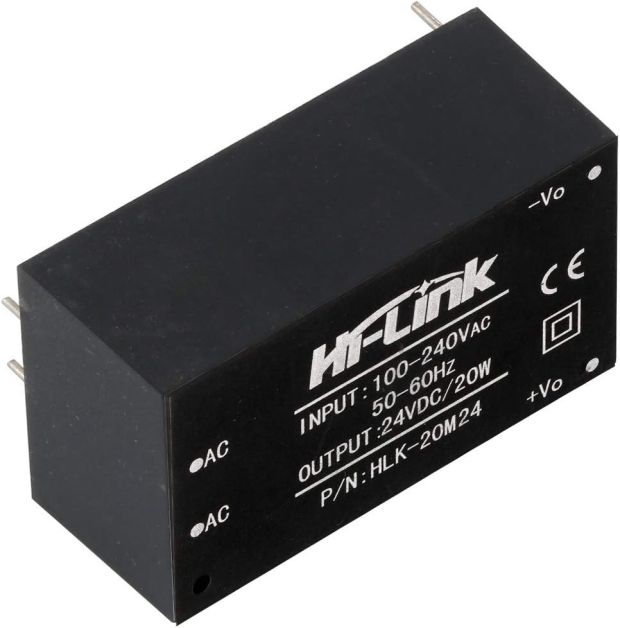

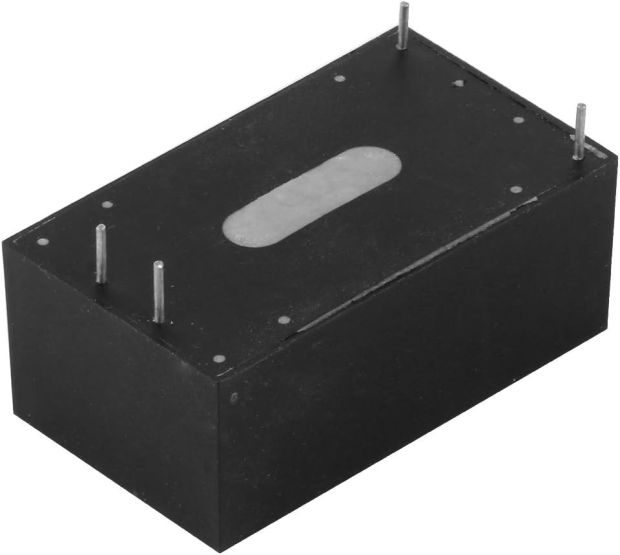

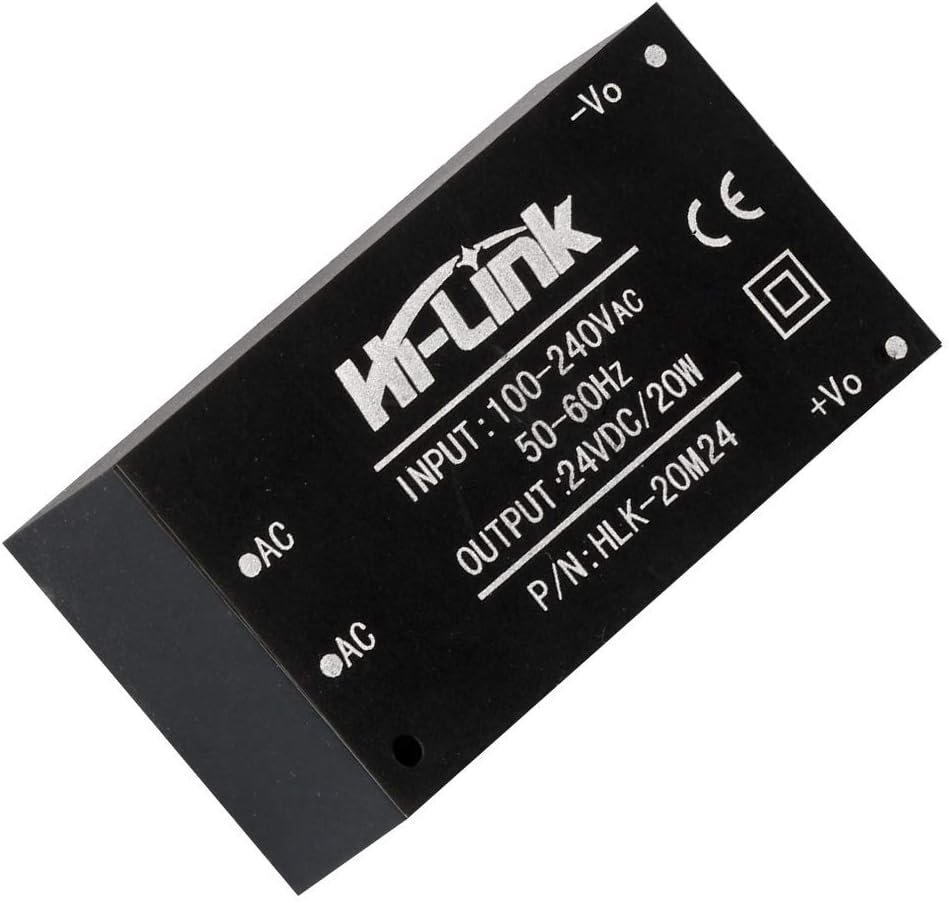

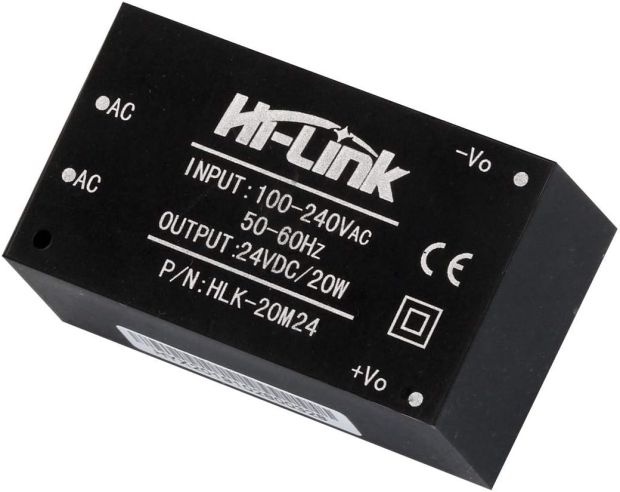

The Hi-Link HLK-20M24 24V/20W Switch Power Supply Module is an encapsulated, high-power AC-DC converter designed to safely deliver a steady $24 ext{V DC}$ supply directly on a single circuit board. Eliminating bulky external desktop power adapters or exposed open-frame transformers, the HLK-20M24 packs a full $20 ext{W}$ switched-mode power supply (SMPS) into a compact, potted plastic enclosure.

Engineered to operate seamlessly on global AC mains voltage ranges from 90V AC up to 264V AC (50Hz/60Hz), it outputs a highly regulated 24V DC rail at up to 833mA continuous load. Its fully isolated construction—providing $3000 ext{V AC}$ input-to-output isolation—shields downstream control electronics and microcontrollers against line spikes and electrical noise. Its $24 ext{V}$ output rail is ideal for powering industrial PLCs, $24 ext{V}$ solenoids, motor drivers, LED strips, and high-voltage relay setups in automated industrial and home control cabinets.

Key Features and Benefits

Compact Encapsulated PCB-Mount Module: Fully potted plastic casing plugs directly into standard through-hole PCBs or prototyping boards, protecting components from dust and moisture.
Global Universal AC Input Range: Operates reliably from $90 ext{V AC} - 264 ext{V AC}$ ( $50/60 ext{Hz}$ ), ensuring full compatibility with domestic and international grid standards.
Stable 24V 833mA (20W) Output: Delivers clean $24 ext{V DC}$ with low output ripple and high voltage stability under varying loads.
High Safety & Electrical Isolation: $3000 ext{V AC}$ isolation between input and output ensures high operational safety for low-voltage control systems.
Built-In Comprehensive Protections: Integrated short-circuit, over-current, and over-temperature safety protection circuits automatically recover once fault conditions clear.
Low Standby Power & High Efficiency: Features high conversion efficiency with ultra-low no-load power consumption ( $< 0.1 ext{W}$ ), ideal for always-on automated systems.

Technical Specifications

Feature Component	Specification Details
Model Designation	HLK-20M24 (Hi-Link 20W Series)
Input Voltage Range ( $V_{AC}$ )	$90 ext{V AC} - 264 ext{V AC}$ ( $100 ext{V} - 240 ext{V}$ Nominal)
Input Frequency Range	$47 ext{ Hz} - 63 ext{ Hz}$
Output Voltage ( $V_{DC}$ )	$24.0 ext{V DC} pm 0.2 ext{V}$ (Regulated)
Maximum Output Current	$833 ext{ mA}$ ( $0.833 ext{A}$ ) Continuous
Maximum Rated Power	$20.0 ext{ Watts}$
Full Load Efficiency	$ge 80%$
No-Load Power Consumption	$< 0.1 ext{ Watts}$
Input-to-Output Isolation	$3000 ext{V AC}$ for 1 minute
Output Ripple & Noise	$le 100 ext{ mVp-p}$
Short-Circuit Protection	Automatic recovery upon fault removal
Operating Temperature	$-20^circ ext{C to } +60^circ ext{C}$

Pinout & Wiring Guide

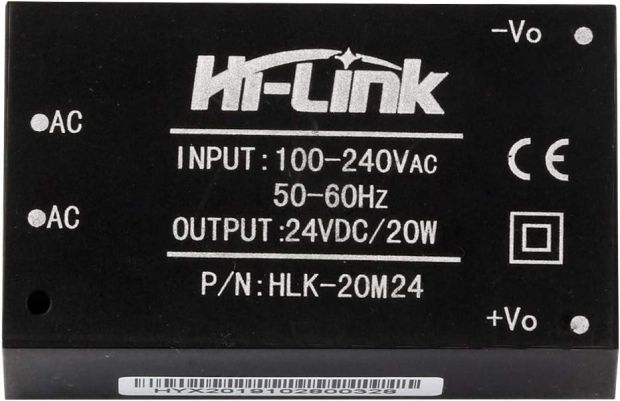

The HLK-20M24 features 4 heavy-duty through-hole PCB pins clearly labeled on its housing:

Input Side (High Voltage AC):

AC / L (Pin 1): Connect to Live / Phase mains input wire ( $90 ext{V} - 264 ext{V AC}$ ).
AC / N (Pin 2): Connect to Neutral mains input wire.

Output Side (Low Voltage DC):

-V0 / GND (Pin 3): Ground / Negative output rail ( $0 ext{V DC}$ ).
+V0 / +24V (Pin 4): Regulated $+24 ext{V DC}$ positive output rail.

Safety Warning: The AC input side carries lethal line voltages ( $110 ext{V}-230 ext{V AC}$ ). Always maintain appropriate high-voltage PCB creepage distances, properly insulate AC connections, and ensure mains power is disconnected before touching or installing the board.

Applications

Industrial Automation & PLCs: Powers $24 ext{V}$ industrial controllers, DIN-rail modules, human-machine interfaces (HMIs), and field sensors.
24V Actuators & Solenoids: Drives heavy $24 ext{V}$ contactors, electric valves, solenoids, and motor drivers in automated machinery.
Dual-Stage Power Distribution: Supplies a main $24 ext{V}$ rail that steps down via buck regulators to $5 ext{V}$ or $3.3 ext{V}$ for embedded logic controllers.
Building & Smart Home Automation: Serves as a hidden internal AC-DC power converter for centralized smart lighting and security control boxes.
