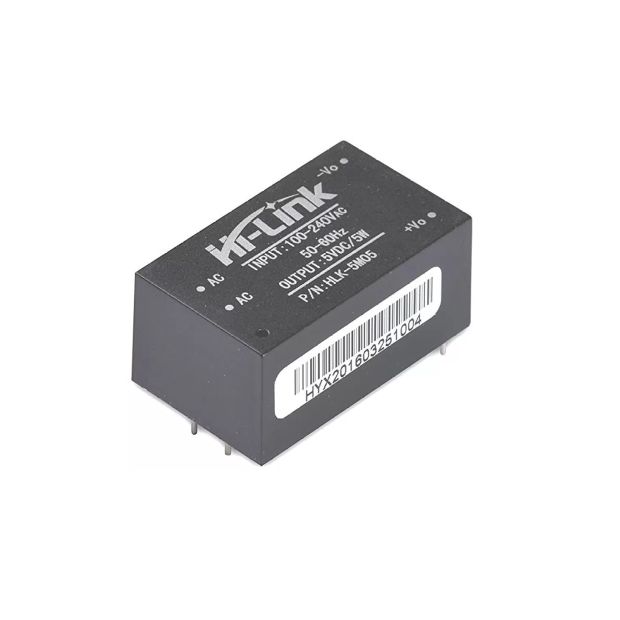

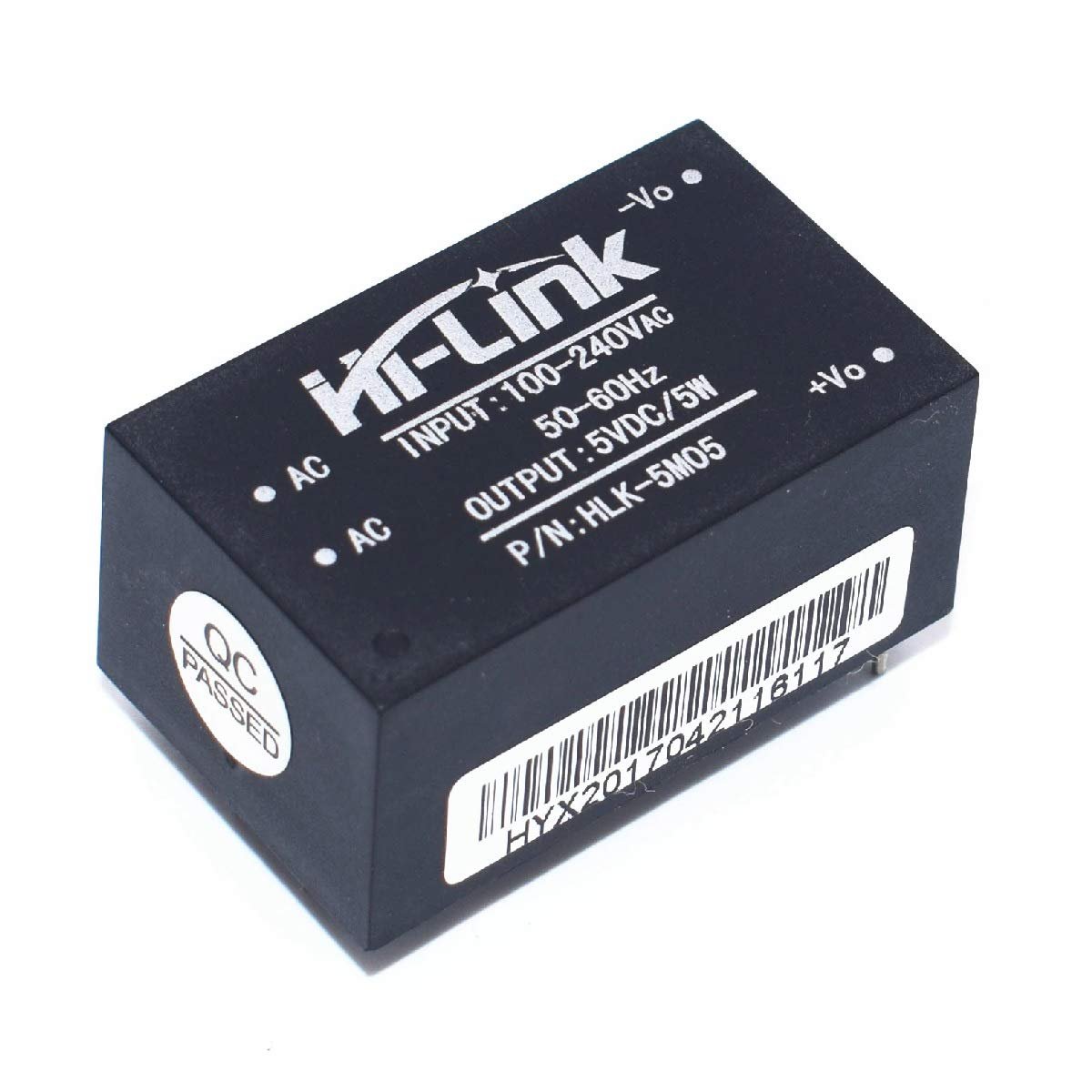

Hi-Link HLK-5M05 5V 5W AC-DC Step-Down Switch Power Supply Module

Power your embedded microcontrollers directly from mains power with the Hi-Link HLK-5M05 5V 5W Switch Power Supply Module. Designed as an ultra-compact, PCB-mount isolated AC-DC step-down converter, it converts wide input AC voltages ( $90 ext{V}$ to $264 ext{V AC}$ ) into a stable, low-ripple 5V DC output at up to 1A (5W). Featuring flame-retardant plastic encapsulation, short-circuit protection, low power consumption ( $<0.1 ext{W}$ no-load), and high isolation, it is the industry-standard choice for smart home automation, IoT nodes, and compact embedded designs.

( No Reviews )

₹ 245 ^{₹ 339}

Order From Whatsapp

Seller Electro Boat

Tags Hi Link HLK 5M05 HLK-5M05 5V 5W AC DC Step Down Module 5V 1A Power Module Isolated SMPS Module PCB Mount AC DC Converter Arduino Mains Power Supply Smart Home Power Module

No Cancellation

No Returnable

Product Details :

The Hi-Link HLK-5M05 5V/5W Switch Power Supply Module is an encapsulated, highly integrated AC-DC power converter designed to safely bridge high-voltage mains power directly to low-voltage electronics on a single PCB. Unlike traditional bulky power adapters or open-frame transformers, the HLK-5M05 packs a complete switched-mode power supply (SMPS) into a tiny, fully potted plastic shell.

Capable of accepting a global universal AC input voltage range from 90V AC up to 264V AC (50Hz/60Hz), it delivers a regulated 5V DC output with up to 1000mA (1A) of continuous current. Its fully isolated construction (providing up to $3000 ext{V AC}$ input-to-output isolation) protects sensitive microcontrollers like ESP32, ESP8266, Arduino, and PIC chips from high-voltage grid spikes. Its ultra-low standby power dissipation makes it an eco-friendly option for smart home relays, IoT sensors, and automated wall switches that stay plugged in continuously.

Key Features and Benefits

Compact PCB-Mount Footprint: Fully enclosed potted module easily plugs into standard through-hole PCB designs or protoboards.
Global Universal AC Input: Accepts wide input voltages ( $90 ext{V AC} - 264 ext{V AC}$ at $50/60 ext{Hz}$ ), making it suitable for international power grids.
Stable 5V 1A (5W) Output: Delivers clean $5 ext{V DC}$ output with low output ripple and tight voltage regulation (± $pm 0.2%$ ).
High Electrical Safety & Isolation: Features continuous input-to-output isolation up to $3000 ext{V AC}$ , protecting downstream electronics.
Integrated Safety Protections: Built-in overload, short-circuit, and over-temperature safety circuits protect both the module and connected loads.
Eco-Friendly Low Standby Power: Consumes less than $0.1 ext{W}$ under no-load conditions, meeting Energy Star efficiency expectations.

Technical Specifications

Feature Component	Specification Details
Model Designation	HLK-5M05 (Hi-Link Series)
Input Voltage Range ( $V_{AC}$ )	$90 ext{V AC} - 264 ext{V AC}$ ( $100 ext{V} - 240 ext{V}$ Nominal)
Input Frequency Range	$47 ext{ Hz} - 63 ext{ Hz}$
Output Voltage ( $V_{DC}$ )	$5.0 ext{V DC} pm 0.1 ext{V}$ (Regulated)
Maximum Output Current	$1000 ext{ mA}$ ( $1.0 ext{A}$ ) Continuous
Maximum Rated Power	$5.0 ext{ Watts}$
Full Load Efficiency	$ge 70%$
No-Load Power Consumption	$< 0.1 ext{ Watts}$
Input-to-Output Isolation	$3000 ext{V AC}$ for 1 minute
Output Ripple & Noise	$le 50 ext{ mVp-p}$
Short-Circuit Protection	Automatic recovery upon fault removal
Operating Temperature	$-20^circ ext{C to } +60^circ ext{C}$

Pinout & Wiring Guide

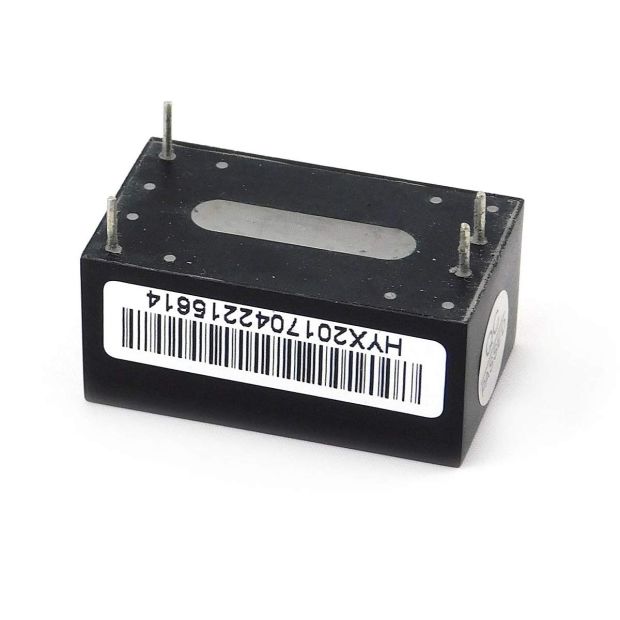

The HLK-5M05 features 4 through-hole PCB pins clearly labeled on its housing:

Input Side (High Voltage AC):

AC / L (Pin 1): Connect to Live / Phase mains input wire ( $90 ext{V} - 264 ext{V AC}$ ).
AC / N (Pin 2): Connect to Neutral mains input wire.

Output Side (Low Voltage DC):

-V0 / GND (Pin 3): Ground / Negative output rail ( $0 ext{V DC}$ ).
+V0 / +5V (Pin 4): Regulated $+5 ext{V DC}$ positive output rail.

Safety Warning: The AC input side carries high line voltages ( $110 ext{V}-230 ext{V AC}$ ) that pose severe electric shock hazards. Always insulate AC solder joints and ensure the unit is unplugged before touching or handling connections.

Applications

Smart Home & Wall Switches: Powers ESP8266 / ESP32 WiFi relay boards concealed inside standard in-wall switch boxes.
IoT Sensor Gateways: Supplies continuous power to remote sensor nodes, smart locks, and environment monitors connected to grid power.
Industrial Controls: Provides low-power control logic supplies for mains-operated industrial automation boards.
DIY Custom Power Supplies: Ideal for embedding into custom enclosures where using an external USB wall adapter is inconvenient or impractical.
