Hi-Link HLK-5M12 12V 5W AC-DC Step-Down Switch Power Supply Module

Power 12V relays, solenoids, and microcontrollers directly from mains power with the Hi-Link HLK-5M12 12V 5W Switch Power Supply Module. Built as an ultra-compact, PCB-mount isolated AC-DC step-down converter, it transforms wide input AC voltages ( $90 ext{V}$ to $264 ext{V AC}$ ) into a regulated, low-ripple 12V DC output at up to 416mA (5W). Featuring flame-retardant encapsulation, short-circuit protection, ultra-low standby power consumption ( $<0.1 ext{W}$ no-load), and $3000 ext{V AC}$ isolation, it is the go-to solution for smart home automation, 12V relay control boards, and compact IoT embedded designs.

( No Reviews )

₹ 282 ^{₹ 353}

Order From Whatsapp

Seller Electro Boat

Tags Hi Link HLK 5M12 HLK-5M12 12V 5W AC DC Step Down Module 12V 450mA Power Module Isolated SMPS Module PCB Mount AC DC Converter 12V Relay Driver Power Supply Smart Home Power Module

No Cancellation

No Returnable

Product Details :

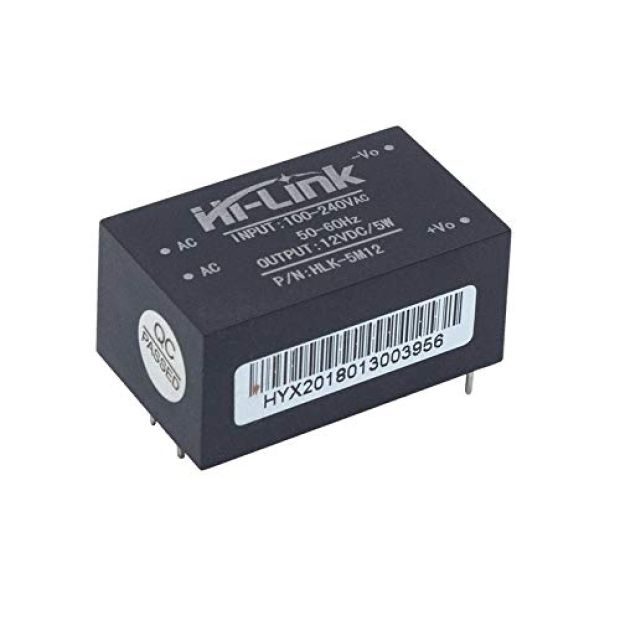

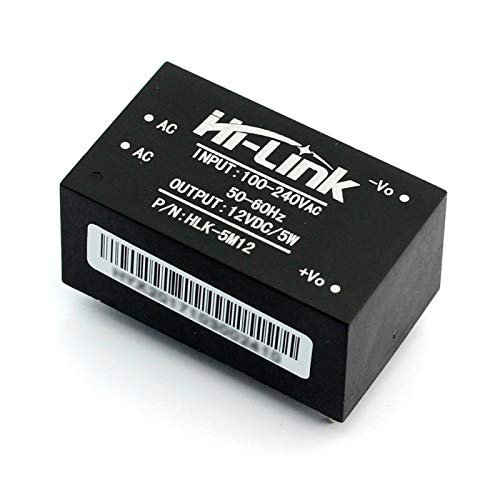

The Hi-Link HLK-5M12 12V/5W Switch Power Supply Module is an encapsulated, highly integrated AC-DC power converter designed to safely convert high-voltage mains electricity down to a stable 12V DC rail on a single PCB. Eliminating the need for bulky external wall adapters or open-frame transformers, the HLK-5M12 packs a complete switched-mode power supply (SMPS) into a tiny, fully potted plastic casing.

Engineered to accept a universal AC input voltage range from 90V AC up to 264V AC (50Hz/60Hz), it provides a regulated 12V DC output with up to 416mA of continuous current. Its fully isolated construction (providing up to $3000 ext{V AC}$ input-to-output isolation) protects sensitive microcontrollers and control circuitry from high-voltage line surges. Its 12V rail is tailored for driving 12V electromagnetic relays, DC solenoids, cooling fans, and onboard step-down LDOs/buck regulators in automated home switch boxes and industrial control units.

Key Features and Benefits

Compact PCB-Mount Footprint: Fully enclosed potted module easily plugs into standard through-hole PCB layouts, prototyping boards, or custom enclosures.
Global Universal AC Input: Accepts wide input voltages ( $90 ext{V AC} - 264 ext{V AC}$ at $50/60 ext{Hz}$ ), ensuring seamless compatibility with global electrical grids.
Stable 12V Output Rail: Delivers a clean, regulated $12 ext{V DC}$ output—ideal for switching 12V relay coils without logic supply voltage sag.
High Electrical Safety & Isolation: Delivers continuous input-to-output isolation up to $3000 ext{V AC}$ , safeguarding low-voltage logic components.
Integrated Hardware Safety Protections: Features onboard over-current, short-circuit, and thermal defense circuits that automatically recover once faults are cleared.
Eco-Friendly Low Standby Power: Consumes less than $0.1 ext{W}$ under no-load conditions, making it an energy-efficient choice for always-on IoT equipment.

Technical Specifications

Feature Component	Specification Details
Model Designation	HLK-5M12 (Hi-Link Series)
Input Voltage Range ( $V_{AC}$ )	$90 ext{V AC} - 264 ext{V AC}$ ( $100 ext{V} - 240 ext{V}$ Nominal)
Input Frequency Range	$47 ext{ Hz} - 63 ext{ Hz}$
Output Voltage ( $V_{DC}$ )	$12.0 ext{V DC} pm 0.1 ext{V}$ (Regulated)
Maximum Output Current	$416 ext{ mA}$ ( $0.416 ext{A}$ ) Continuous
Maximum Rated Power	$5.0 ext{ Watts}$
Full Load Efficiency	$ge 70%$
No-Load Power Consumption	$< 0.1 ext{ Watts}$
Input-to-Output Isolation	$3000 ext{V AC}$ for 1 minute
Output Ripple & Noise	$le 50 ext{ mVp-p}$
Short-Circuit Protection	Automatic recovery upon fault removal
Operating Temperature	$-20^circ ext{C to } +60^circ ext{C}$

Pinout & Wiring Guide

The HLK-5M12 features 4 through-hole PCB pins clearly labeled on its housing:

Input Side (High Voltage AC):

AC / L (Pin 1): Connect to Live / Phase mains input wire ( $90 ext{V} - 264 ext{V AC}$ ).
AC / N (Pin 2): Connect to Neutral mains input wire.

Output Side (Low Voltage DC):

-V0 / GND (Pin 3): Ground / Negative output rail ( $0 ext{V DC}$ ).
+V0 / +12V (Pin 4): Regulated $+12 ext{V DC}$ positive output rail.

Safety Warning: The AC input side operates at high line voltages ( $110 ext{V}-230 ext{V AC}$ ) which carry severe risk of electric shock. Always insulate AC connections, maintain creepage distances on PCBs, and disconnect mains power before handling the circuit.

Applications

12V Relay Control Systems: Powers 12V relay boards, door strikes, and solenoids in smart home switch modules and access control setups.
Dual-Rail Power Architectures: Provides a primary $12 ext{V}$ rail to drive inductive loads, which can then step down (via an buck converter or 7805) to power $5 ext{V}$ or $3.3 ext{V}$ microcontrollers.
Smart Home Automation: Powers embedded ESP32 / STM32 controllers concealed within standard electrical junction boxes.
Small Industrial Controllers: Delivers compact auxiliary power for sensors, instrumentation modules, and PLC accessory boards.
