The CJMCU-219 INA219 I2C Bi-Directional Current and Power Monitoring Module is an advanced, software-programmable data acquisition board engineered to provide precise power telemetry for embedded systems. While older analog shunt amplifiers suffer from significant thermal calibration drift and struggle with high-side sensing, the Texas Instruments INA219 core handles everything digitally. It safely measures high-side currents—where the sensing resistor sits between the power source and the load—preventing ground-loop disruptions across your project circuits.

The board comes populated with a high-precision, low-profile 0.1Ω, 1% 2W current sense shunt resistor. The internal 12-bit Analog-to-Digital Converter (ADC) monitors the tiny voltage drop across this shunt (up to ±320mV), enabling it to compute currents up to ±3.2 Amps with an impressive 0.8mA resolution. For advanced hardware developers, swapping out this stock shunt resistor allows you to easily recalibrate the board's dynamic range (for instance, using a 0.01Ω resistor scales the module up to a massive 32 Amp tracking range).

Key Features & Benefits:

• Comprehensive Power Metrics: Tracks the shunt voltage drop, measures the overall bus supply voltage, and instantly calculates real-time power consumption in Watts via internal hardware registers.

• Smart Digital Filtering: Features a programmable averaging engine that can smooth up to 128 samples concurrently, filtering out high-frequency electrical noise in switching motor or radio environments.

• High-Speed I2C/SMBus Connectivity: Communicates over a standard 2-wire serial bus with a built-in bus timeout guard to prevent master lockups, supporting high-speed modes up to 3.4 MHz.

• True Zero-Drift Precision: Maintains less than a 1% absolute accuracy error margin and a maximum offset of just 100µV across its entire -40°C to +85°C industrial temperature envelope.

Technical Specifications

How to Use

The CJMCU-219 INA219 Module is uniquely designed as a high-side current sensor. This means it is wired between the positive terminal of your power supply and your load, preventing ground loops and allowing your load to stay tied to a solid system ground.

Pinout Configuration:

• VCC: Connect to 3.3V or 5V DC power supply for the chip logic.

• GND: Connect to common system ground.

• SCL: I2C Clock line (Connect to microcontroller SCL).

• SDA: I2C Data line (Connect to microcontroller SDA).

• Vin+ / Vin- (Screw Terminal or Pads): * Connect Vin+ to the positive output of your power source.

  • Connect Vin- to the positive input of your Load device.

Basic Setup Steps:

1. Connect the control logic pins (VCC, GND, SCL, SDA) to your controller.

2. Cut or route your power supply's positive rail so it runs through the Vin+ and Vin- terminals.

3. Use a standard open-source library (such as the Adafruit INA219 library) in your IDE. Initialize the sensor via ina219.begin(); to begin reading instantaneous mA (current), V (voltage), and mW (power) values directly through the serial monitor.

Common Applications

Because of its high precision, zero-drift engineering, and bi-directional calculation architecture, this module is perfect for advanced power analytics:

• Battery Charging & Discharging Monitors: Ideal for tracking exact charge cycles and remaining capacity on Li-ion/LiFePO4 battery banks.

• Solar Power Data Logging: Measuring the instantaneous power generation efficiency of small-to-medium solar panels.

• Overcurrent Protection Systems: Setting safety thresholds in software to trigger relays or buzzers if a load draws too much current.

• Smart Home Energy Tracking: Integrating into localized IoT power delivery channels to log long-term appliance energy footprints.

• Robotics Power Management: Tracking motor strain and current spikes during heavy mechanical resistance loads.

Package Includes

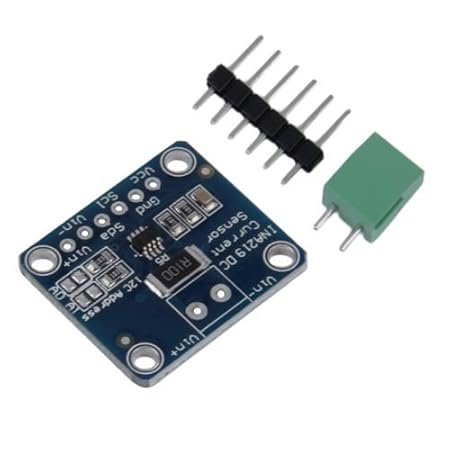

• 1 x INA219 I2C Bi-Directional Current and Power Monitoring Module (CJMCU-219)

• 1 x Male Header strip

• 1 x 2-Pin Screw Terminal block
