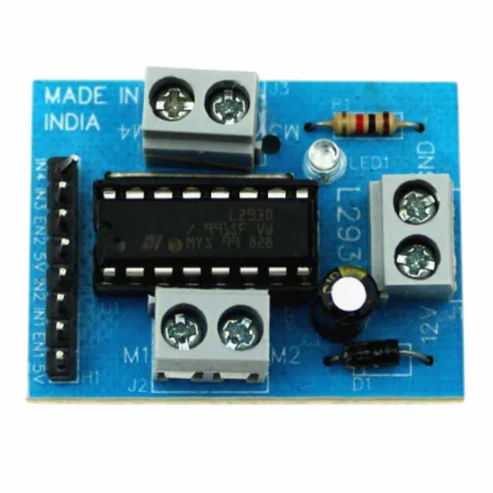

L293D Motor Driver IC Module Board

Overview:
The L293D Motor Driver Module is a compact and reliable board based on the popular L293D dual H-bridge motor driver IC. It allows you to control the direction and speed of two DC motors or a single stepper motor. Ideal for robotics, automation, and DIY projects, this module is widely used with Arduino, Raspberry Pi, and other microcontrollers.

Key Features:

• Dual H-Bridge Motor Driver (L293D Chip):
  Can control two DC motors simultaneously with independent speed and direction control, or one stepper motor.

• Wide Voltage Range:
  Supports motor voltages from 4.5V to 36V (typically operated at 6V–12V for most hobby motors).

• Current Handling:
  Up to 600mA per channel (peak 1.2A) — suitable for small to medium-sized DC motors.

• Built-in Protection:
  Includes thermal shutdown and internal ESD protection for reliable operation.

• Onboard Components:
  Features power LED indicators, terminal blocks for motor connection, and logic/motor power pins.

• Compatible With:
  Arduino, Raspberry Pi, ESP32, STM32, and other microcontroller platforms.

Specifications:

Applications:

• DIY Robotics

• Motorized Toys

• Line-Following Robots

• Conveyor Systems

• Smart Car Projects

• Educational STEM Kits

What’s Included:

• 1x L293D Motor Driver Module

• Pre-soldered headers and terminal blocks (varies by seller)

Note: Ensure you provide a separate power supply for the motors if using higher current loads. The onboard L293D cannot power large motors directly from Arduino power pins.
