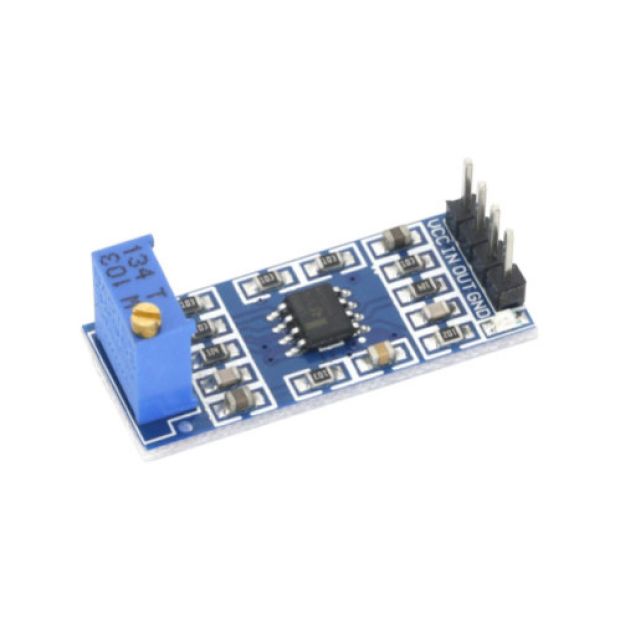

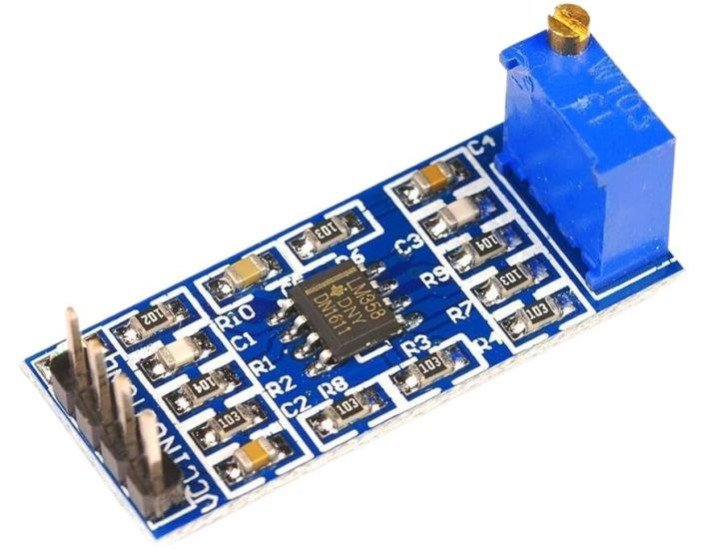

LM358 Gain Amplification Operational Amplifier Module
The LM358 Gain Amplification Operational Amplifier Module is a versatile and cost-effective signal amplification solution designed for a wide range of analog electronics applications. Built around the reliable LM358 dual operational amplifier IC, this module is ideal for amplifying weak signals from sensors such as microphones, light sensors, and other low-voltage analog devices.
₹ 41
₹ 63
| : | |
| Made In : | India |
This module is perfect for boosting small analog signals into readable voltage levels for microcontrollers and processing systems. It is widely used in both educational and professional electronics projects.
Key Features
- Based on LM358 dual operational amplifier IC
- Adjustable gain via onboard potentiometer
- Amplifies low-level analog signals
- Wide operating voltage range
- Low power consumption
- Stable and reliable performance
- Compact and easy-to-use design
- Suitable for sensor signal conditioning
Technical Specifications
| Parameter | Specification |
|---|---|
| IC Used | LM358 |
| Operating Voltage | 3V – 32V DC |
| Gain Adjustment | Via onboard potentiometer |
| Output Type | Analog voltage |
| Number of Channels | Dual Op-Amp |
| Input Signal | Low-level analog signals |
| Frequency Response | Suitable for low-frequency applications |
| Power Consumption | Low |
How to Use
- Connect VCC to power supply (3V–12V typical)
- Connect GND to system ground
- Provide input signal to module input pin
- Adjust potentiometer to set desired gain
- Read amplified output from output pin
- Interface output with ADC/microcontroller
Applications
- Sensor signal amplification
- Audio signal pre-amplification
- Light and sound detection circuits
- IoT and embedded systems
- Analog signal conditioning
- DIY electronics projects
- Industrial monitoring systems
Package Includes
1 * LM358 Gain Amplification Operational Amplifier Module
