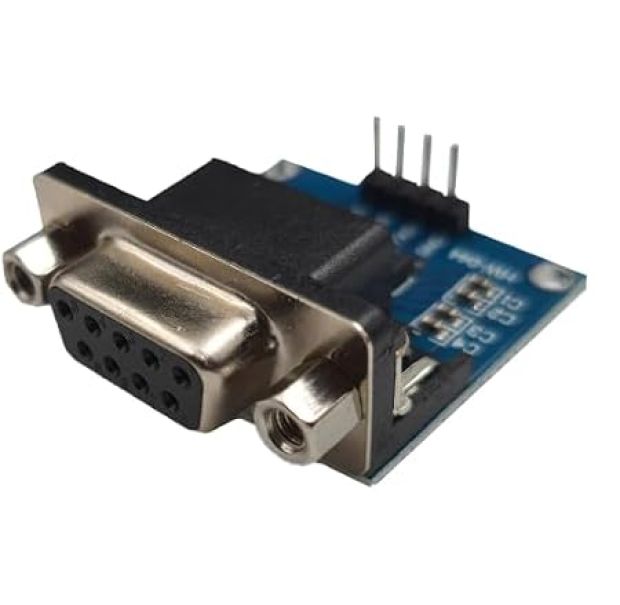

The MAX3232 RS232 to TTL Serial Converter Module is an essential interface board designed to enable direct serial communication between legacy RS232 devices and modern $3.3\text{V}$ / $5\text{V}$ microcontroller logic systems. Standard computer serial ports and legacy industrial devices communicate using RS232 signal levels (typically ranging from $-12\text{V}$ for Logic 1 to $+12\text{V}$ for Logic 0), which would immediately damage sensitive microcontroller UART pins if connected directly.

The MAX3232 IC solves this by integrating an internal dual charge-pump voltage converter requiring only four $0.1\mu \text{F}$ external SMD capacitors. It translates incoming RS232 high-voltage levels down to clean $3.3\text{V}$ or $5\text{V}$ TTL UART levels ($TXD/RXD$) and vice-versa. Operating across a flexible supply range of $3.0\text{V}$ to $5.5\text{V DC}$, it supports data transmission speeds up to $120\text{ kbps}$ or higher, making it ideal for field diagnostics, firmware flashing, and industrial automation.

Key Features and Benefits

• Flexible Dual Voltage Compatibility: Operates smoothly on both $3.3\text{V}$ and $5.0\text{V DC}$ supply lines, making it compatible with 5V Arduino boards as well as 3.3V ESP32, STM32, and Raspberry Pi.

• Integrated Dual Charge Pump: Internal voltage multiplier generates standard RS232 signal levels without requiring external dual power supplies ($+12\text{V}/-12\text{V}$).

• Standard DB9 Interface: Pre-fitted with a robust DB9 connector (Female/Male variant) for direct connection to PC serial ports, RS232 cables, or industrial sensors.

• High Speed Serial Data Rate: Guaranteed data throughput up to $120\text{ kbps}$ ($250\text{ kbps}$ peak), suitable for high-speed serial telemetry.

• Onboard Signal LEDs: TXD and RXD status indicator LEDs provide visual feedback for active serial data transmission.

Technical Specifications

Pinout & Wiring Guide

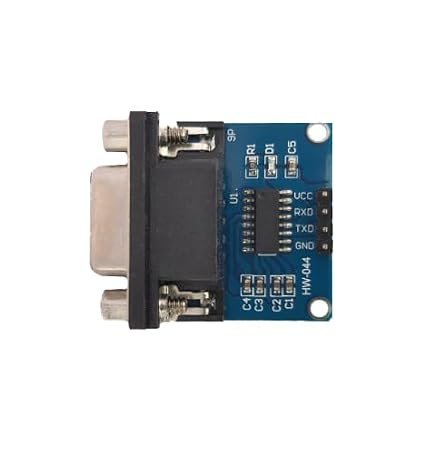

TTL Header Connections (To Microcontroller):

• $VCC$: Logic Power Supply Input ($+3.3\text{V}$ or $+5\text{V DC}$)

• $GND$: Common Ground ($0\text{V}$)

• $TXD$: Transmit Data Input (Connects to Microcontroller $TX$ pin)

• $RXD$: Receive Data Output (Connects to Microcontroller $RX$ pin)

DB9 Connector Interface (To RS232 Device):

• Pin 2 (RXD): RS232 Receive Line

• Pin 3 (TXD): RS232 Transmit Line

• Pin 5 (GND): Signal Ground

WIRING & VOLTAGE LEVEL ADVISORY:

1. Always match the module's $VCC$ pin voltage to the logic level of your target microcontroller ($3.3\text{V}$ for ESP32/Raspberry Pi; $5\text{V}$ for Arduino Uno).

2. Ensure cross-wiring on the TTL side ($TXD\to TX$ and $RXD\to RX$, or swapped depending on module silkscreen labeling) if serial communication fails to establish.

Applications

• Industrial Equipment Interfacing: Interfacing PLCs, CNC machines, motor drives, and weighing scales with microcontrollers.

• Firmware Flashing & Debugging: Recovering bricked routers, satellite receivers, set-top boxes, and network switches via console serial interface.

• GPS & Radio Telemetry: Connecting RS232-level marine GPS units, radio modems, and weather station sensors to Arduino.

• Microcontroller PC Communication: Connecting desktop computers equipped with legacy COM ports directly to microcontrollers.

Package Includes

• 1 x MAX3232 RS232 to TTL Serial Port Converter Module (With DB9 Connector)

• 1 x 4-Pin Male Header Strip (Pre-soldered)
