The MAX7219 Single 8x8 Dot LED Matrix Module is an efficient display solution designed to interface 64 individual LEDs with any microcontroller. The module pairs a bright $8\times 8$ common-cathode red LED matrix display with an onboard MAX7219 display driver IC.

The MAX7219 driver handles all LED multiplexing, static RAM data storage, and digital brightness control internally. By storing the frame data in its internal $8\times 8$ dual-port RAM, it offloads continuous scanning tasks from the host processor. Controlling the display requires only a 3-wire serial interface (DIN, CS, CLK). With input header pins on one side and output header pins on the opposite side, multiple single modules can be cascaded together end-to-end to create custom multi-block matrices or scrolling message banners without requiring additional I/O pins.

Key Features and Benefits

• Compact 8x8 LED Grid: 64 individual bright red LEDs arranged in an $8\times 8$ matrix array.

• Efficient 3-Wire Serial Interface: Requires only 3 digital I/O lines for full control of all 64 LEDs.

• Onboard MAX7219 Driver IC: Handles multiplexing and LED current regulation, preventing processor overhead and eliminating external current-limiting resistors.

• Digital Brightness Control: 16-level software adjustable brightness via internal PWM registers.

• Cascadable Output Header: Allows multiple $8\times 8$ modules to be connected in series for extended message displays.

Technical Specifications

Pinout & Wiring Guide

1. Input Pins (Connect to Microcontroller):

• VCC: $+5.0\text{V DC}$ Power Input.

• GND: Power Ground ($0\text{V}$).

• DIN: Serial Data Input (Connect to MOSI / Digital Pin).

• CS: Chip Select / Load Pin (Connect to SS / Digital Pin).

• CLK: Serial Clock Pin (Connect to SCK / Digital Pin).

2. Output Pins (Chain to Next Module):

• VCC $\to$ VCC of Module 2

• GND $\to$ GND of Module 2

• DOUT $\to$ DIN of Module 2

• CS $\to$ CS of Module 2

• CLK $\to$ CLK of Module 2

NOTE: Ensure correct orientation when plugging the $8\times 8$ LED matrix block into its IC socket relative to the PCB silk screen markings.

Arduino Quick-Start Code Example (MD_MAX72XX Library)

Install the MD_MAX72XX library via the Arduino Library Manager:

#include <MD_MAX72xx.h>
#include <SPI.h>

// Define Hardware Type and Pin Connections
#define HARDWARE_TYPE MD_MAX72XX::PAROLA_HW // Standard single module hardware type
#define MAX_DEVICES 1                       // 1 device for single 8x8 matrix

#define DATA_PIN  11 // DIN
#define CS_PIN    10 // CS
#define CLK_PIN   13 // CLK

// Initialize Hardware SPI Connection
MD_MAX72XX mx = MD_MAX72XX(HARDWARE_TYPE, CS_PIN, MAX_DEVICES);

void setup() {
  mx.begin();
  mx.control(MD_MAX72XX::INTENSITY, 4); // Set brightness level (0 to 15)
  mx.clear();

  // Draw a simple pattern / character 'A'
  mx.setChar(7, 'A');
}

void loop() {
  // Blink pattern
  delay(1000);
  mx.control(MD_MAX72XX::SHUTDOWN, MD_MAX72XX::ON);
  delay(500);
  mx.control(MD_MAX72XX::SHUTDOWN, MD_MAX72XX::OFF);
}

Applications

• Custom Icons & Emoticons: Displaying status smileys, arrows, and custom symbols on mini smart gadgets.

• Digital Counters & Dice: DIY electronic digital dice, score counters, and event tickers.

• Microcontroller Status Indicators: Displaying system boot codes, error states, and diagnostic icons.

• Retro Arcade Games: Single-screen arcade games like Snake, Pong, or Tetris.

Package Includes

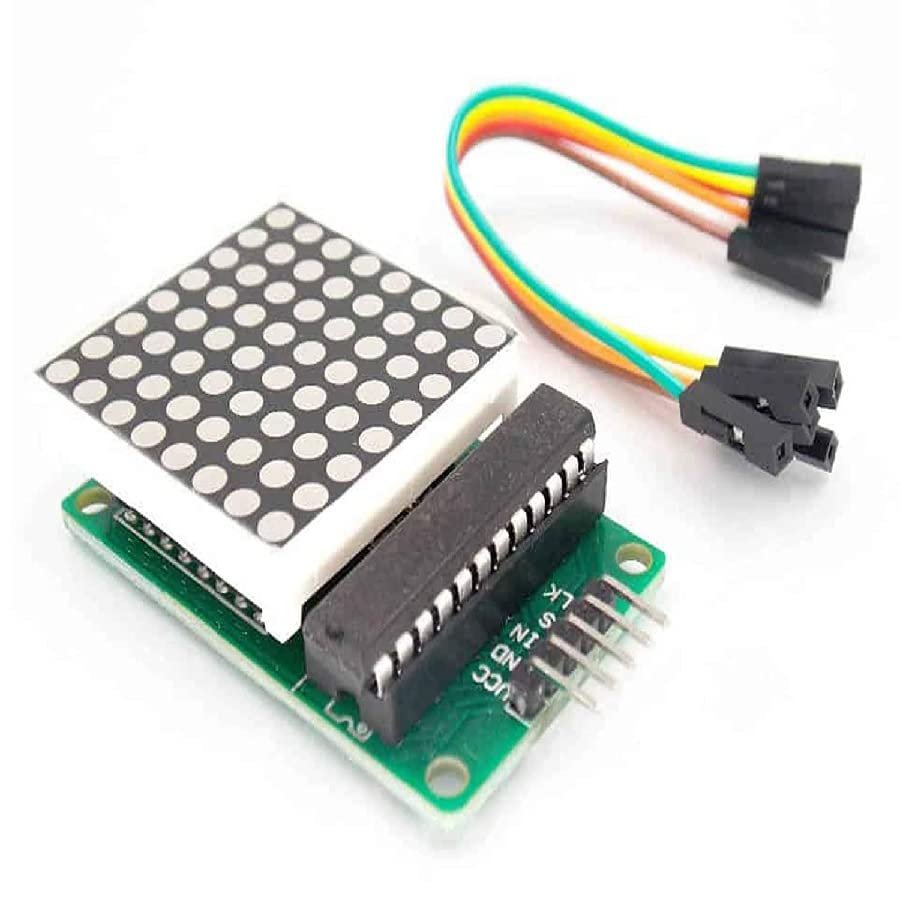

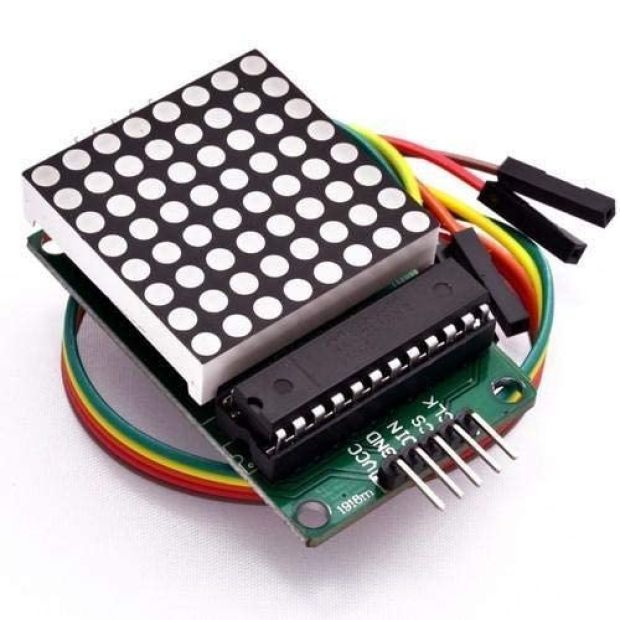

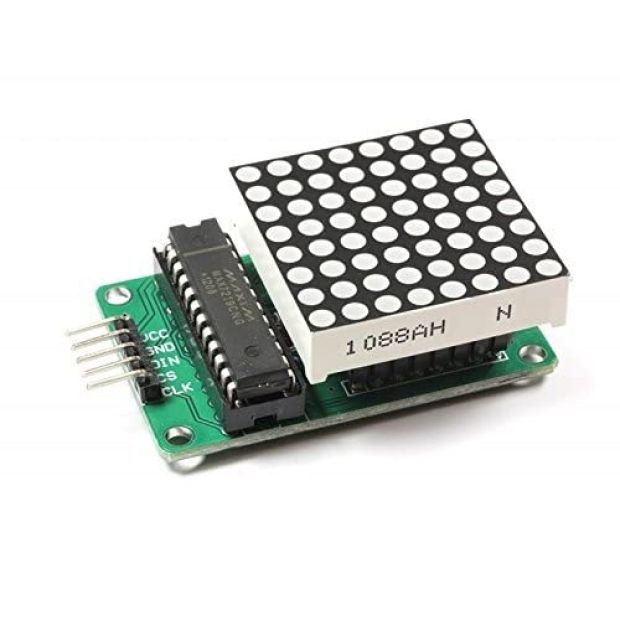

• 1 x MAX7219 Single 8x8 Dot LED Matrix Display Control Module

• 1 x 5-Pin Female-to-Female Jumper Ribbon Cable
