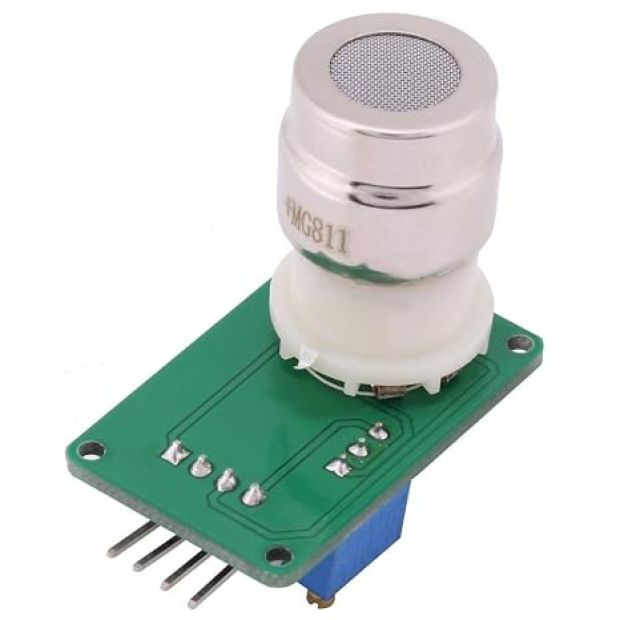

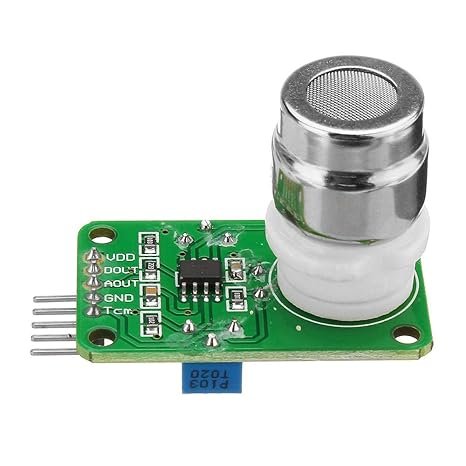

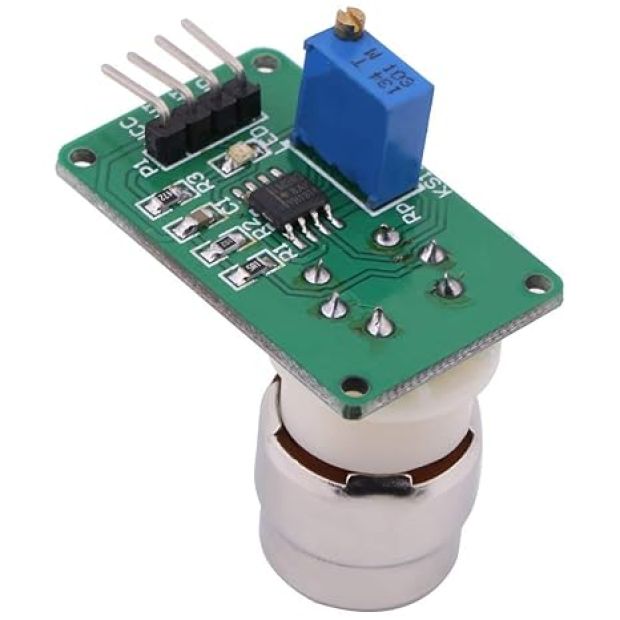

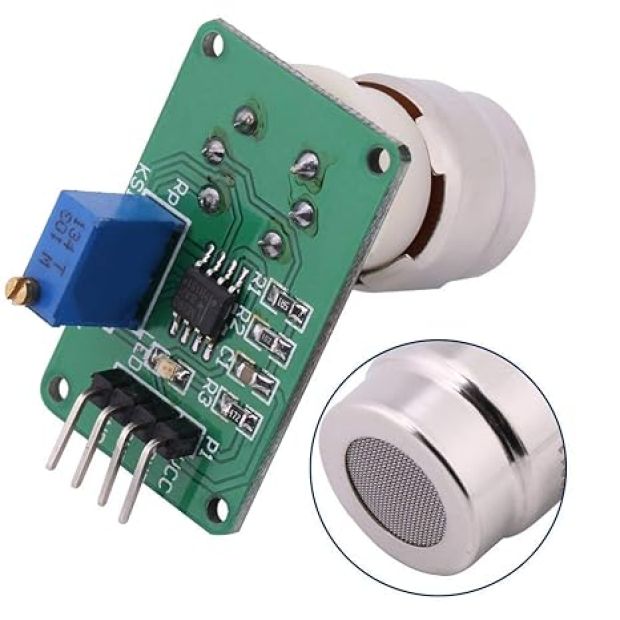

MG811 CO2 Carbon Dioxide Gas Sensor Module with Signal Amplification & Temperature Compensation

Monitor indoor air quality and industrial emissions with the MG811 CO2 Carbon Dioxide Gas Sensor Module. Built with a premium solid electrolyte cell, this high-sensitivity module detects CO2 concentrations ranging from 350 ppm to 10,000 ppm. It features an on-board signal conditioning circuit with an adjustable operational amplifier to boost the sensor's native micro-volt output, providing both a smooth analog telemetry rail and an adjustable digital trigger pin. It is the premier choice for greenhouse automation, HVAC fresh air systems, smart home air quality monitors, and industrial safety arrays.

( No Reviews )

₹ 2,345 ^{₹ 3,659}

Order From Whatsapp

Seller Electro Boat

Tags MG811 CO2 Sensor Carbon Dioxide Module MG811 Arduino Solid Electrolyte Sensor CO2 Detector Board Indoor Air Quality Sensor MG811 Pinout Greenhouse CO2 Monitor Gas Sensor Module

No Cancellation

No Returnable

Product Details :

Detailed Description

The MG811 CO2 Carbon Dioxide Gas Sensor Module is a highly accurate chemical sensing interface designed to track and log ambient Carbon Dioxide ( $CO_2$ ) levels. Unlike standard semiconductor-based gas sensors (like the MQ series) that often suffer from severe cross-sensitivity to humidity and volatile organic compounds, the MG811 uses a solid electrolyte electrochemical cell. This cell acts as a tiny battery whose output voltage changes in response to the concentration of carbon dioxide in the air. This chemical specificity allows the module to accurately track $CO_2$ variations from 350 ppm (ambient fresh air) up to 10,000 ppm (heavy industrial/indoor stagnation limits).

Because a raw solid electrolyte cell generates a very small electromotive force (EMF) that changes logarithmically, reading it directly with a standard microcontroller ADC is difficult. To address this, the MG811 module features an integrated high-input-impedance operational amplifier loop. This onboard circuit amplifies the sensor's native signal into a clean analog voltage curve ( $0 ext{V}$ to $5 ext{V}$ ) that maps cleanly to any standard microcontroller ADC. Additionally, the board includes an onboard hardware comparator that drives a TTL digital output pin. This lets you set a specific threshold to activate an exhaust fan or warning buzzer immediately when $CO_2$ levels spike, without needing complex code.

Key Features and Benefits

High Chemical Selectivity: Leverages solid-state electrochemical sensing technology, making it highly responsive to $CO_2$ while ignoring ambient humidity and cooking smoke.
Onboard Signal Conditioning Op-Amp: Amplifies the cell's native micro-volt signal into a stable, linear analog voltage rail, simplifying calibration and data processing.
Dual Output Topology: Provides an analog voltage pin for detailed data logging and a digital TTL trigger pin for fast safety shut-offs or ventilation control.
Onboard Heating Control Network: Features an integrated heating loop that maintains the electrochemical cell at its optimal operating temperature for stable, repeatable readings.
Wide Thermal Tolerance Window: Operates reliably in harsh environmental monitoring setups, from humid agricultural greenhouses to industrial HVAC ducts.

Technical Specifications

Feature Component	Specification Details
Core Sensor Model	MG811 (Solid Electrolyte Carbon Dioxide Cell)
Target Gas Type	Carbon Dioxide ( $CO_2$ )
Detection Range Scope	$350 ext{ ppm}$ to $10,000 ext{ ppm}$ (Parts Per Million)
Logic Supply Voltage Window	$6.0 ext{V} pm 0.1 ext{V}$ DC (Requires clean regulated input for heater)
Heater Power Consumption	$le 1200 ext{mW}$ (Continuous thermal stabilization loop draw)
Onboard Driving Chipset	High-Input-Impedance Operational Amplifier & Comparator
Output Signal Profiles	Analog Voltage ( $0 ext{V}$ to $5 ext{V}$ ) \| Digital TTL Switch (0V / 5V)
Environmental Operations	Temperature: $-20^circ ext{C}$ to $+50^circ ext{C}$ \| Humidity: ≤ $$le 95% ext{ RH$

How to Configure & Wire

⚠️ EXTREME PRE-HEATING & POWERING MANDATE: > 1. The MG811 relies on an internal heating element to activate its solid electrolyte chemistry. Because of this high thermal demand, it requires a 6V DC input voltage, NOT 5V. Attempting to run the module on a standard 5V USB rail will underpower the internal heater, leading to flat or completely inaccurate readings.

2. When powering up the sensor for the first time, you must let it run continuously for 48 hours (Burn-In Phase) to stabilize the electrochemical cell. For everyday use, allow the sensor to warm up for 3 to 5 minutes before trusting its data.

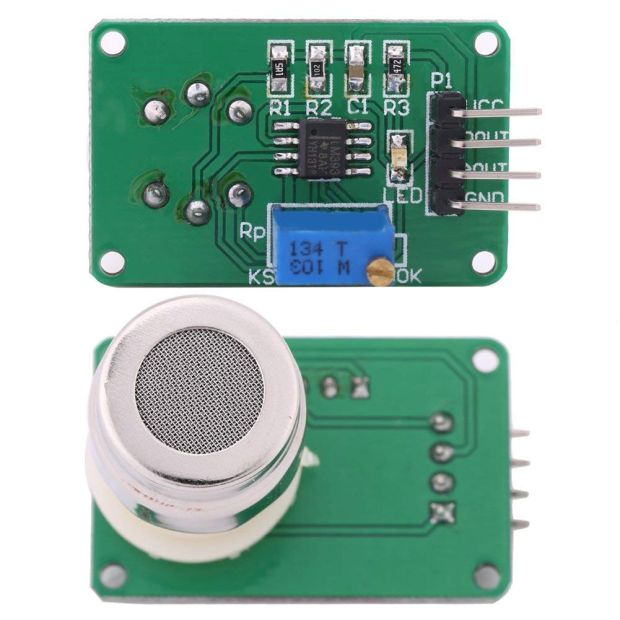

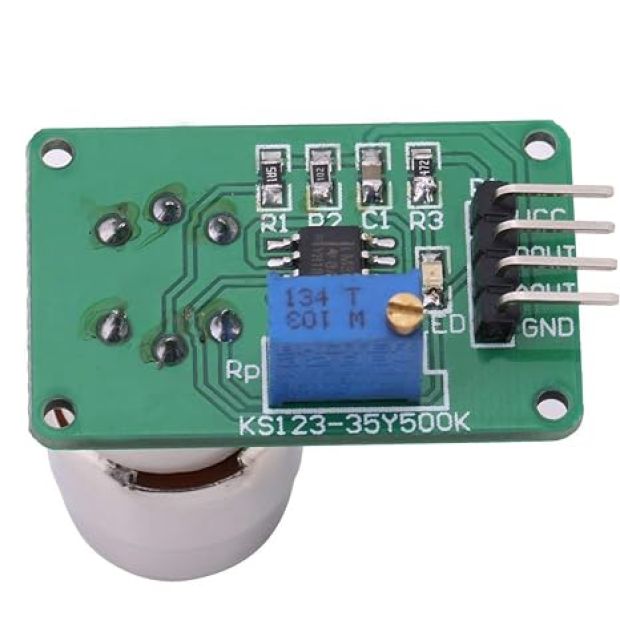

Module Pinout Identification:

VCC: Power supply input ( $+6 ext{V DC}$ regulated rail).
GND: Common system ground reference.
D0: TTL Digital Output pin (Pulls LOW when the gas concentration exceeds your potentiometer setpoint).
A0: Analog Voltage Output pin (Outputs an amplified voltage curve inversely proportional to local $CO_2$ intensity).

Logarithmic Calibration Strategy:

The output voltage of the MG811 drops as the concentration of $CO_2$ increases, following the Nernst Equation.

Connect VCC to a clean 6V power supply, GND to your system ground, and the A0 pin to an analog input on your microcontroller (e.g., Arduino A0).
Place the sensor in fresh outdoor air (typically around $400 ext{ ppm}$ to $420 ext{ ppm}$ ) and record the steady base analog voltage. This value serves as your calibration baseline ( $V_0$ ).
To calculate real-world ppm values in your code, measure the voltage drop (Δ $Delta V$ ) relative to your baseline ( $V_0$ ) and map it against a logarithmic scale. For basic threshold switching, simply adjust the onboard blue trimmer potentiometer until the digital status LED triggers at your desired room stagnation limit.

Applications

Greenhouse Environment Automation: Monitors $CO_2$ levels in agricultural grow rooms, automatically triggering enriched gas injection lines or ventilation fans to optimize plant growth.
HVAC Smart Ventilation Controls: Measures indoor air stagnation in office spaces, schools, and homes, activating fresh-air intake fans when $CO_2$ levels exceed healthy thresholds.
Mushroom Cultivation Monitoring: Tracks localized carbon dioxide spikes in specialized mushroom fruiting chambers to ensure proper crop yield and ventilation.
Industrial Emission Analysis: Serves as a compact, distributed sensor node for monitoring flue gases, fermentation tanks, and chemical production bays for gas containment leaks.
