Detailed Description

The MPU9250 9-Axis Gyroscope, Accelerometer, and Magnetometer Sensor Module is a state-of-the-art 9-Degrees-of-Freedom (9-DOF) Inertial Measurement Unit (IMU) engineered to deliver comprehensive spatial orientation telemetry. Standard 6-axis sensors (which only track acceleration and angular velocity) suffer from positional drift over time, causing their calculated heading to shift away from reality. The MPU9250 fixes this structural limitation by adding an AK8963 3-axis digital compass (magnetometer) into its internal die layout, allowing the chip to cross-reference inertial calculations with Earth's real magnetic north pole.

The module contains two internal microchips: the iconic 6-axis IMU core paired with the ultra-sensitive 3-axis magnetometer. Every axis relies on its own dedicated 16-bit Analog-to-Digital Converter (ADC) to sample structural motion into highly granular digital variables simultaneously. Equipped with an internal Digital Motion Processor (DMP), the module can offload complex sensor-fusion algorithms (like calculating Quaternions or Euler angles) from your host microcontroller's main loop. Supporting both standard I2C and high-speed SPI wiring layouts, this module drops cleanly into drones, Gimbal stabilizers, and custom tracking platforms.

Key Features and Benefits

• True 9-Axis Sensor Fusion: Packs a 3-axis accelerometer, a 3-axis gyroscope, and a 3-axis magnetic compass inside a single miniature PCB breakout footprint.

• Granular 16-Bit Resolution: Employs independent 16-bit internal ADCs for all nine tracking channels, delivering exceptional digital resolution and noise rejection.

• Onboard Digital Motion Processor (DMP): Computes complex motion-processing mathematics internally, freeing up precious clock cycles on your host Arduino or ESP32.

• Flexible Communication Bus: Features full hardware routing for both standard 400kHz I2C mode and ultra-fast 20MHz SPI mode to match your data-logging speed needs.

• Programmable Full-Scale Ranges: Allows software adjustment of sensor sensitivities to perfectly match both slow, high-precision tilts and high-speed robotic maneuvers.

Technical Specifications

How to Configure & Wire (I2C Mode)

⚠️ LOGIC LEVEL & ADDRESS VOLTAGE WARNING: While the module features an onboard 3.3V regulator to safely accept 5V on its VCC pin, the underlying communication lines (SDA/SCL) bypass this regulator. If you are hooking this module up to a 5V microcontroller (like an Arduino UNO) via I2C, it is highly recommended to use an external I2C logic level shifter to prevent the 5V signals from damaging the MPU9250's sensitive 3.3V internal logic gates over long runtimes.

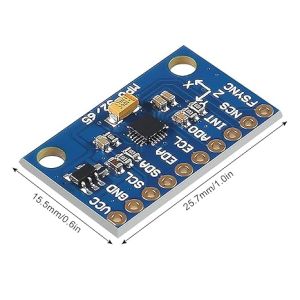

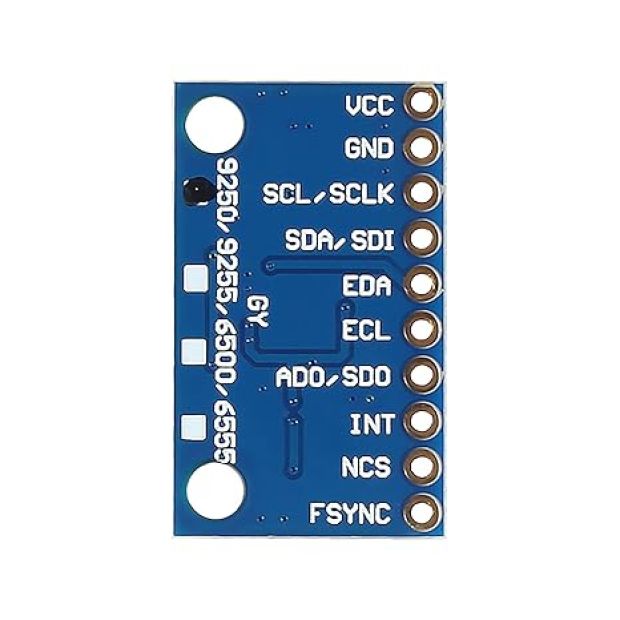

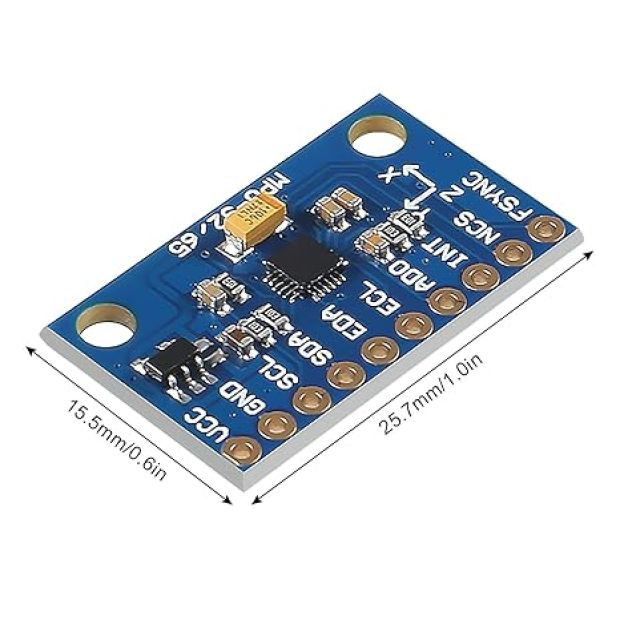

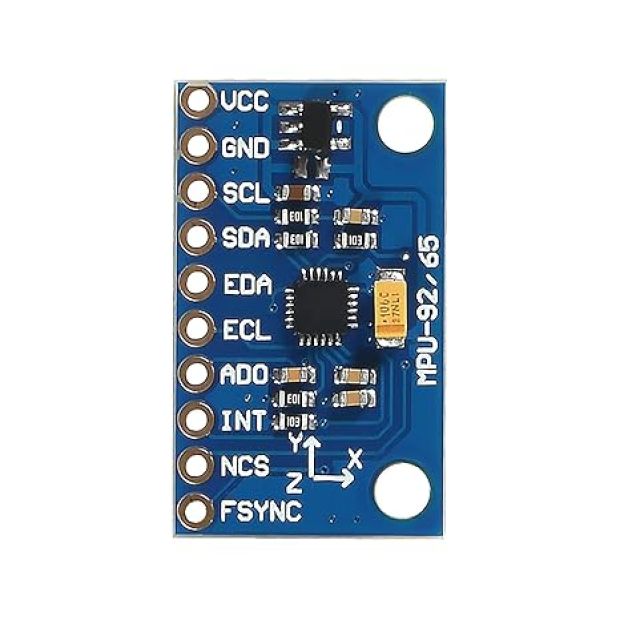

I2C Interface Pinout Reference:

• VCC: Power supply input ($+3.3 ext{V}$ to $+5 ext{V}$ DC).

• GND: Common circuit ground reference.

• SCL: I2C Serial Clock line (Connect to microcontroller SCL).

• SDA: I2C Serial Data line (Connect to microcontroller SDA).

• EDA / ECL: Auxiliary I2C lines (Used to chain secondary external sensors directly to the MPU9250; leave disconnected for normal use).

• ADO: I2C Address Select Pin. Connect to Ground for default address 0x68. Connect to 3.3V to shift the address to 0x69.

• INT: Programmable Interrupt Output pin (Alerts the host processor when new sensor data is ready).

Quick Calibration Steps:

1. Solder the included male header strip onto the module pins.

2. Connect VCC to 5V (or 3.3V), GND to ground, SCL to your microcontroller's SCL pin, and SDA to its SDA pin.

3. Download an established open-source library, such as the MPU9250 library by Hideaki Tai, through your Arduino IDE Library Manager.

4. Open the basic data stream example sketch.

5. Magnetic Calibration Mandate: Because local electromagnetic environments vary, you must run the magnetometer calibration routine included in the library. This requires rotating the sensor in a figure-8 pattern through the air for a few seconds to map out hard-iron offsets before building your final drone or tracking project code.

Applications

• Autonomous Drone Flight Stabilization: Acts as the primary Inertial Measurement Unit (IMU) on custom quadcopters, multirotors, and fixed-wing autopilot setups.

• Virtual Reality (VR) Head Trackers: Delivers low-latency, drift-free head and hand rotation mapping inside DIY VR/AR spatial displays and tracking gloves.

• Robotics Dead Reckoning Navigation: Enables indoor mapping mobile robots to calculate travel distances and maintain perfect straight-line tracking when GPS signals are unavailable.

• Camera Gimbal Stabilization Arrays: Controls high-speed brushless motors to counteract real-world shakes, keeping video cameras perfectly level during active sports recording.

Package Includes

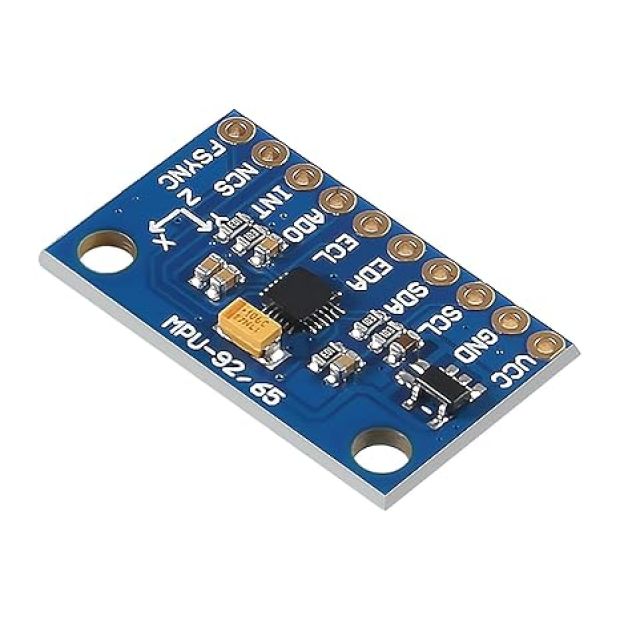

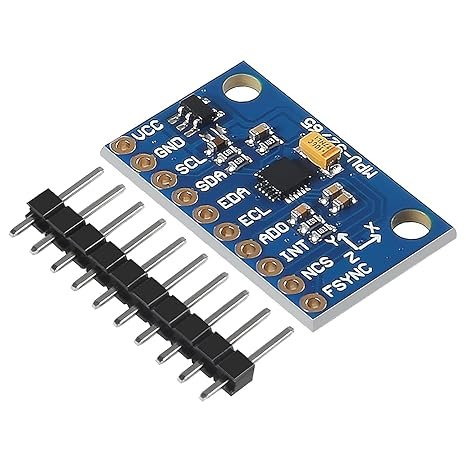

• 1 x MPU9250 9-Axis Gyro/Accel/Mag Multi-Sensor Breakout Module

• 1 x 10-Pin Straight Male Header Connector Strip
