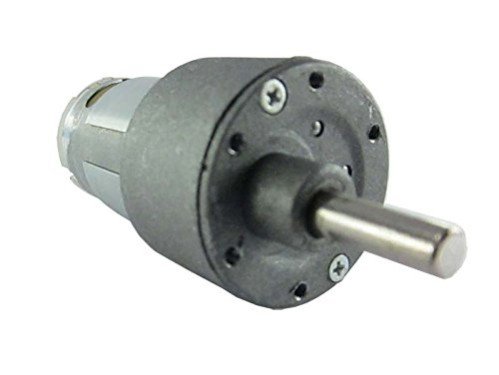

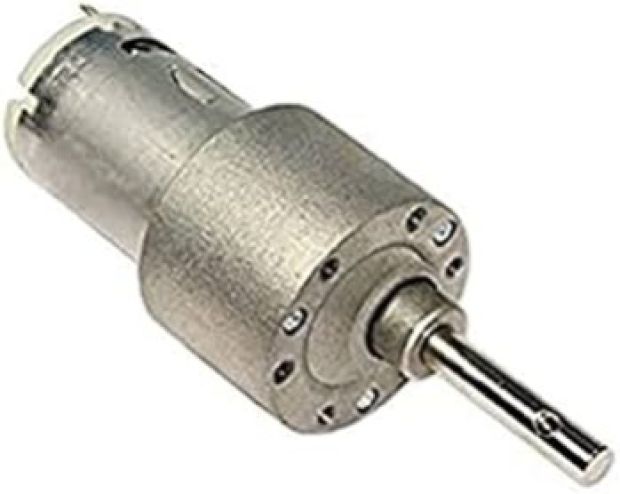

Orange 12V 30 RPM Johnson Geared DC Motor – Grade A Quality-Encoder Compatible
30 RPM 12V DC Johnson Geared Motor Grade-A is a high performance DC geared Johnson motor with metal gear box used for high torque application and other automation purposes. The motor comes with 6mm off-centered shaft (side shaft) and M3 holes for mounting. High-performance 12V 30 RPM Johnson geared DC motor from Orange, featuring high torque output, durable metal gearbox, and encoder compatibility – ideal for robotics, automation, and industrial applications.
₹ 499 ₹649
649
| Made In : | India |
Key Features:
-
12V DC motor with 30 RPM output speed
-
High torque Johnson motor – Grade A quality build
-
Durable metal gearhead for long service life
-
Encoder-mounting compatible shaft for feedback control
-
Suitable for robotic platforms, automation systems, and conveyor belts
-
Operates smoothly under variable loads
Product Description (Detailed):
The Orange 12V 30 RPM Johnson Geared DC Motor is a premium-grade DC motor ideal for applications that require high torque at low speed. It features a robust metal gearbox, making it suitable for heavy-duty and continuous use in robotics, conveyor systems, automation setups, and wheel drive mechanisms.
This motor is also encoder compatible, with a rear shaft extension allowing users to attach optical or magnetic encoders for position or speed feedback, enabling closed-loop control.
Built with precision bearings and high-quality windings, this motor ensures smooth and quiet operation with extended reliability.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Motor Type | Johnson Geared DC Motor |
| Operating Voltage | 6V–12V DC |
| Rated Voltage | 12V DC |
| Speed | 30 RPM (at 12V) |
| Gearbox Type | All-metal gearbox |
| Torque | ~9–12 kg·cm (approx., under load) |
| Shaft Diameter | 6mm (with D-cut) |
| Shaft Length | ~20–25mm |
| Motor Body Diameter | ~36mm |
| Motor Length (with gearbox) | ~90–100mm |
| Encoder Compatibility | Yes (rear shaft accessible for mounting) |
| Mounting Holes | Threaded holes on gearbox face |
| Weight | ~300g (approx.) |
How to Use:
-
Connect motor terminals to a 12V DC power supply or motor driver.
-
Reverse polarity to change motor rotation direction.
-
Mount securely using the gearbox faceplate holes.
-
For encoder feedback, attach a compatible rotary encoder to the rear shaft.
-
Use an L298N, L293D, or BTS7960 motor driver with Arduino/Raspberry Pi for control.
Ensure adequate power supply and heat dissipation during extended operation.
Applications:
-
Mobile robotic platforms and smart cars
-
Line follower, obstacle-avoiding, and AGV robots
-
Mini conveyors and automated machines
-
Camera pan-tilt systems
-
DIY automation projects requiring high torque
Package Includes:
-
1 × Orange 12V 30 RPM Johnson Geared DC Motor – Grade A Quality
