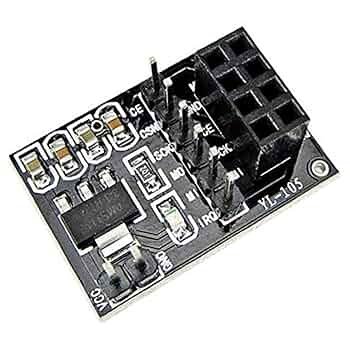

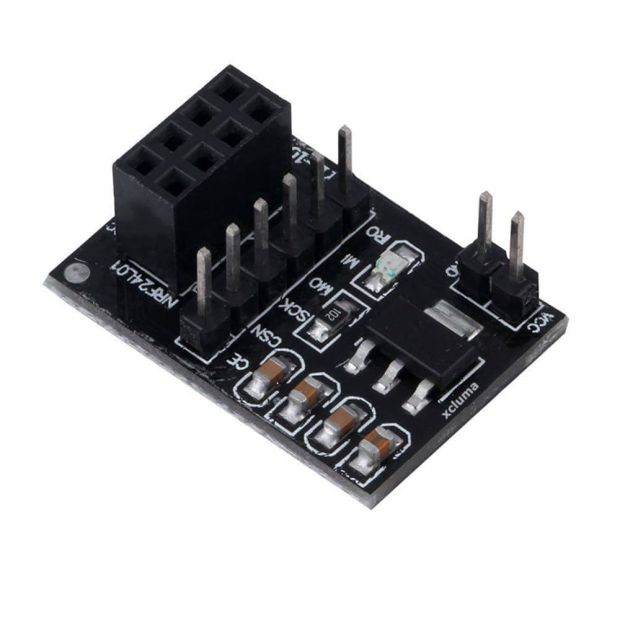

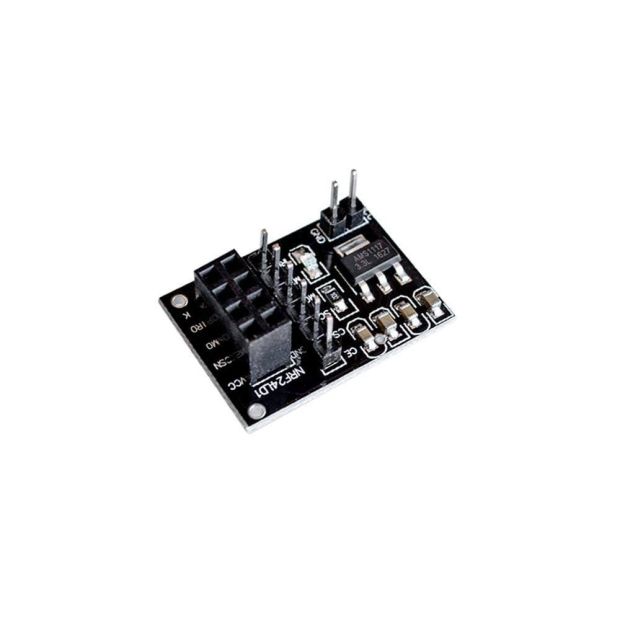

Socket Adapter Plate Board for 8-Pin NRF24L01+ Wireless Transceiver Module

Description:

This adapter plate board is designed to facilitate the easy integration of the 8-pin NRF24L01+ wireless transceiver module with microcontroller boards (such as Arduino, STM32, ESP8266, ESP32, etc.). It provides a stable 3.3V power supply with built-in voltage regulation and decoupling capacitors to ensure reliable operation of the NRF24L01+ module, which is sensitive to power fluctuations.

Features:

• Compatible with 8-pin NRF24L01 and NRF24L01+ modules

• Onboard 3.3V regulator (AMS1117-3.3 or equivalent)

• Decoupling capacitors for voltage stabilization

• Standard 2.54mm pin header for easy breadboard use

• VCC input: 5V (regulated down to 3.3V for module)

• Compact and easy to use with microcontroller development boards

Pinout:

• VCC (Input): 5V input from the host (regulated onboard to 3.3V)

• GND: Ground

• CE: Chip Enable

• CSN (CS): Chip Select Not

• SCK: Serial Clock

• MOSI: Master Out Slave In

• MISO: Master In Slave Out

• IRQ: Interrupt Request (optional)

Applications:

• Wireless sensor networks

• Remote control systems

• Home automation

• IoT projects using 2.4GHz RF communication
