The Square 2M Cable Float Switch is a reliable, mechanical liquid level controller designed for direct AC power switching of pumps and solenoid valves. The unit consists of a hermetically sealed polypropylene float body housing an internal SPDT microswitch and a stainless steel ball mechanism.

As the water level rises or falls inside a storage tank or sump, the floating casing tilts past its mechanical pivot angle. The internal steel ball shifts position, triggering the microswitch to either open or close the electrical circuit. The included adjustable counterweight clips onto the 2-meter cable, allowing operators to set precise differential switching heights between pump turn-on and turn-off levels. With its rugged IP68 ingress protection rating, corrosion-resistant housing, and high current rating ($15\text{A}$ at $250\text{V AC}$), it provides long-term maintenance-free operation without electrode fouling or sensor scaling.

Key Features and Benefits

• Dual Operation Mode (SPDT Contact): Supports both Filling Mode (turns pump OFF when tank is full) and Emptying Mode (turns pump ON when sump is full) using a single 3-wire cable configuration.

• IP68 Fully Submersible Housing: Hermetically sealed non-toxic polypropylene body resists corrosion, mild chemicals, sewage, and industrial wastewater.

• Adjustable Switching Differential: The snap-on cable counterweight allows custom tuning of high and low water switching limits.

• High Electrical Capacity: Built-in heavy-duty microswitch handles up to $15\text{A}/250\text{V AC}$, enabling direct switching of small pumps without requiring an intermediate AC contactor.

• Maintenance-Free Design: Solid-state mechanical operation eliminates false triggers caused by water conductivity variations, rust, or mineral scaling.

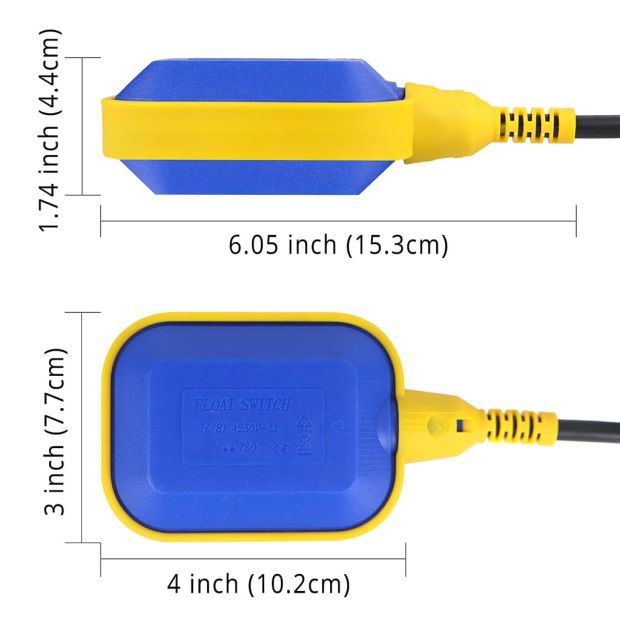

Technical Specifications

Wiring & Functionality Guide

The 3-wire cable provides single-pole double-throw (SPDT) functionality:

1. Automatic Water Tank Filling Setup (Pump stops when tank is FULL):

• BLACK Wire: Common ($AC\text{ Line}$)

• BLUE Wire: Normally Closed (Connect to Pump Live Input)

• BROWN Wire: Insulate & isolate (Not used)

2. Automatic Drainage / Sump Emptying Setup (Pump starts when sump is FULL):

• BLACK Wire: Common ($AC\text{ Line}$)

• BROWN Wire: Normally Open (Connect to Sump Pump Live Input)

• BLUE Wire: Insulate & isolate (Not used)

SAFETY & CONTACTOR ADVISORY: For single-phase pumps rated above $1\text{ HP}$ or 3-phase industrial pumps, ALWAYS use the float switch to trigger an intermediate AC magnetic contactor or motor starter rather than connecting the pump directly through the float switch contacts.

Applications

• Overhead Water Storage Tanks: Automatic water level control for residential buildings and commercial complexes.

• Sump & Sewage Pit Dewatering: Controlling drainage pumps in basements, lift stations, and wastewater pits.

• Agricultural Irrigation Systems: Regulating water levels in farm ponds, open wells, and header tanks.

• Industrial Liquid Containers: Level monitoring in cooling towers, industrial washing plants, and non-corrosive chemical vats.

Package Includes

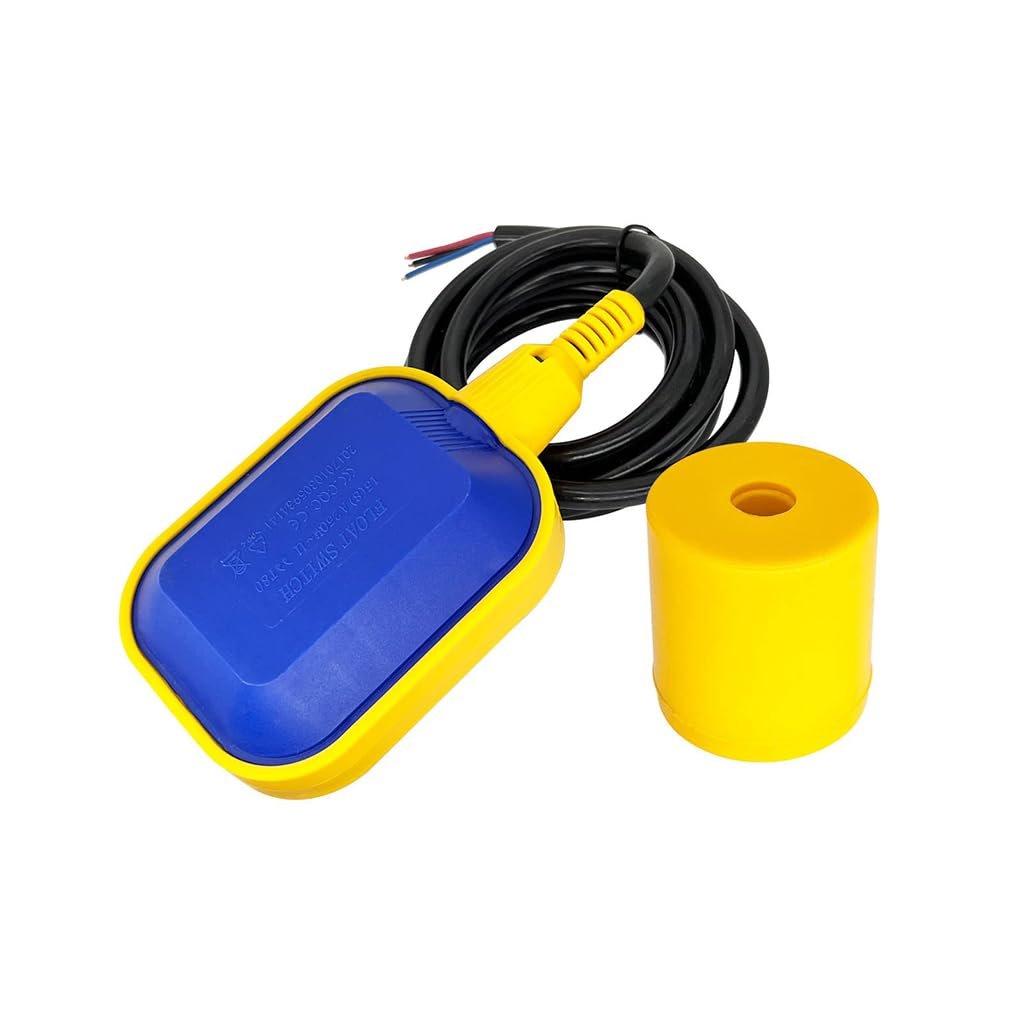

• 1 x Square Float Switch with 2M Cable

• 1 x Adjustable Cable Counterweight
