Detailed Description:

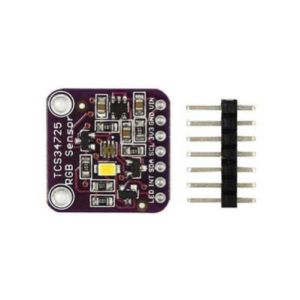

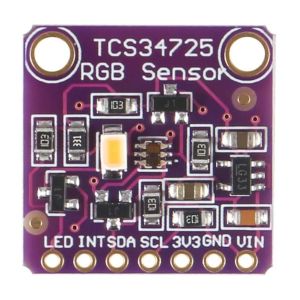

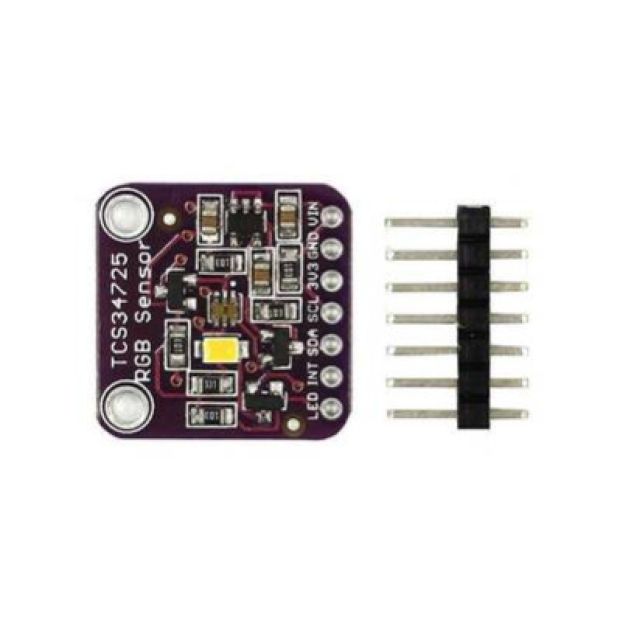

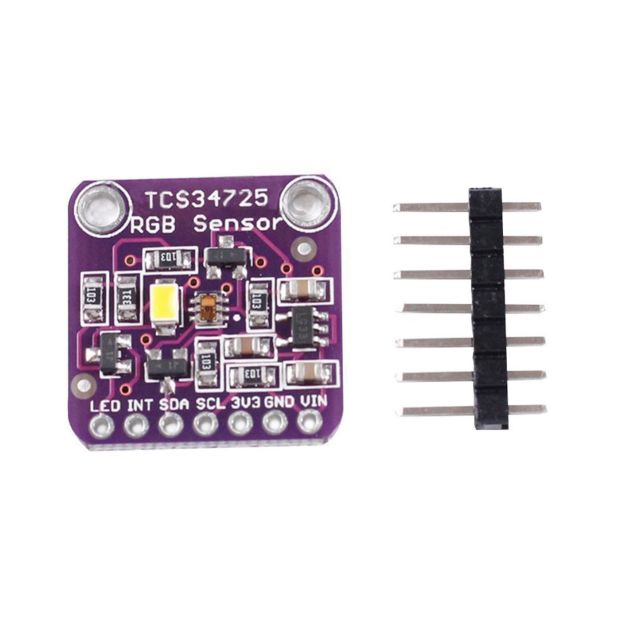

The TCS34725 RGB Color Sensor Module is a powerful digital color light sensor capable of sensing red, green, blue, and clear (ambient) light. It uses the TCS34725 sensor chip which includes an IR blocking filter to deliver accurate color measurements under various lighting conditions.

The sensor communicates using the I2C protocol, making it compatible with platforms like Arduino, Raspberry Pi, STM32, ESP32, and other microcontrollers. With a high sensitivity photodiode array and 16-bit analog-to-digital converter (ADC), this module can distinguish subtle differences in color, useful for color sorting robots, smart lighting, display calibration, and more.

A built-in white LED provides uniform lighting for consistent readings in dark or varying ambient conditions.

Key Features:

• Measures RGB and Clear light intensity

• Built-in IR blocking filter for color accuracy

• White LED with driver circuit for illumination

• Communicates via I2C (address: 0x29)

• 16-bit ADC resolution for precise output

• Compatible with Arduino, Raspberry Pi, ESP32, STM32, etc.

• Small form factor, ideal for embedded systems

• Libraries available for Arduino and Python

Technical Specifications:

How to Use:

1. Connect VCC, GND, SDA, and SCL to the microcontroller (3.3V or 5V compatible)

2. Use I2C protocol to communicate with the sensor (address 0x29)

3. Read RGB and Clear values using libraries like Adafruit TCS34725 (Arduino) or CircuitPython

4. Use color ratios or calibrated formulas to detect specific colors or ambient light level

5. Illuminate object using onboard white LED for stable color readings

Applications:

• Color recognition & sorting robots

• Ambient light sensing for displays

• White balance calibration

• Smart lighting and environmental sensing

• Industrial inspection

• Educational STEM kits

• Color-based object detection in robotics

Package Includes:

• 1 × TCS34725 RGB Color Sensor Module
