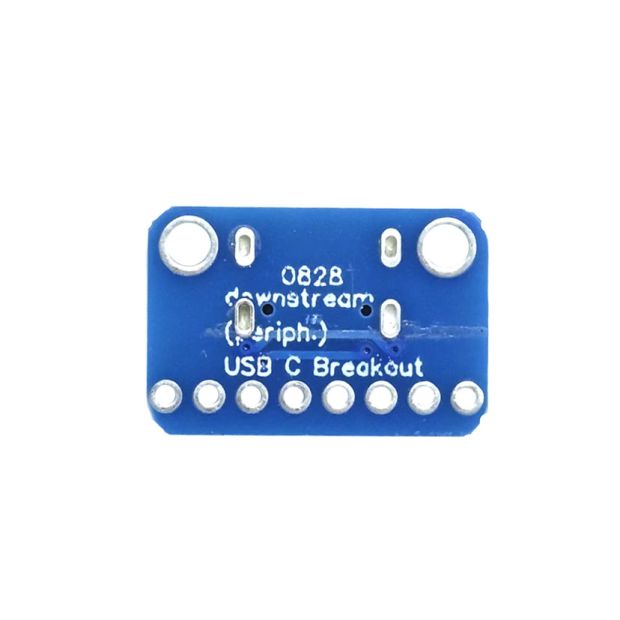

The Electroboat USB Type-C Female to DIP PCB Breakout Board is a must-have adapter for makers, hobbyists, and hardware engineers who want to replace outdated Micro-USB or Mini-USB power connectors on their custom electronic projects. Designed to bridge the gap between surface-mount USB-C receptacles and standard 2.54mm breadboard pitches, this lightweight board provides easy access to power and USB 2.0 signal pins.

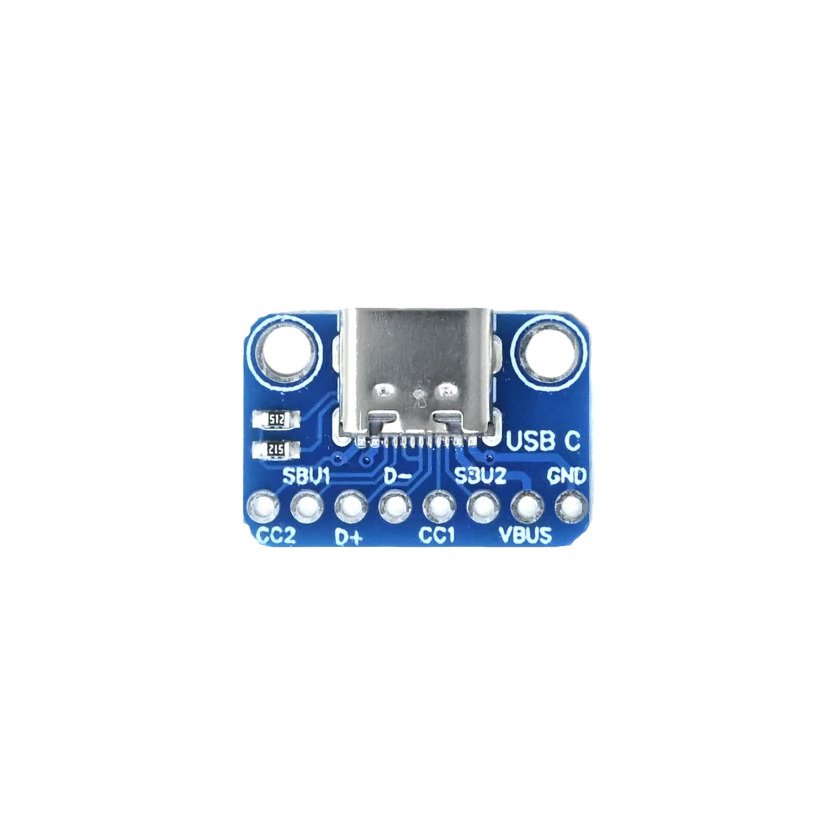

Built with high-quality FR-4 PCB material and a robust metal-shielded Type-C female port, the board breaks out four key lines: VBUS (Power Positive), GND (Ground), D+ (Data Positive), and D- (Data Negative). Whether you need to supply 5V DC power to a microcontroller setup, build a custom lithium battery charging circuit, or establish USB data communication, this breakout board makes prototyping clean, reliable, and hassle-free.

Key Features and Benefits

• Standard 2.54mm (0.1") DIP Header Spacing: Plugs directly into standard solderless breadboards, perfboards, and PCB headers.

• Modern USB Type-C Female Receptacle: Replaces legacy connectors, allowing your DIY projects to use reversible USB-C cables.

• 4-Pin Breakout Design: Clearly labeled solder pads for VBUS, GND, D+, and D-.

• High Power Handling: Supports up to 5V / 3A DC power pass-through for high-current microcontroller and battery charging circuits.

• Sturdy FR-4 Glass Fiber Construction: Double-sided PCB with reinforced connector anchors to withstand repeated cable plug/unplug cycles.

Technical Specifications

How to Use

1. Solder a 4-pin male 2.54mm header row to the breakout board's through-hole pads (VBUS, GND, D+, D-).

2. Insert the assembled breakout board into your solderless breadboard or custom project PCB.

3. Connect VBUS to your circuit's +5V power rail and GND to ground.

4. Plug any standard USB Type-C cable from a 5V power adapter or PC port into the female connector to power your system.

Applications

• DIY Microcontroller Projects (Arduino, ESP32, STM32, Raspberry Pi Pico)

• Custom Lithium Battery (TP4056/18650) Charging Modules

• USB 2.0 Serial Data & Power Adapter Assemblies

• Conversion of Micro-USB / Mini-USB Hardware to USB-C

• STEM Electronics, University Engineering, and Prototyping Work

Package Includes

• 1 x USB Type-C Female to DIP PCB Breakout Board

• 1 x 4-Pin Straight Male Header (2.54mm Pitch)
