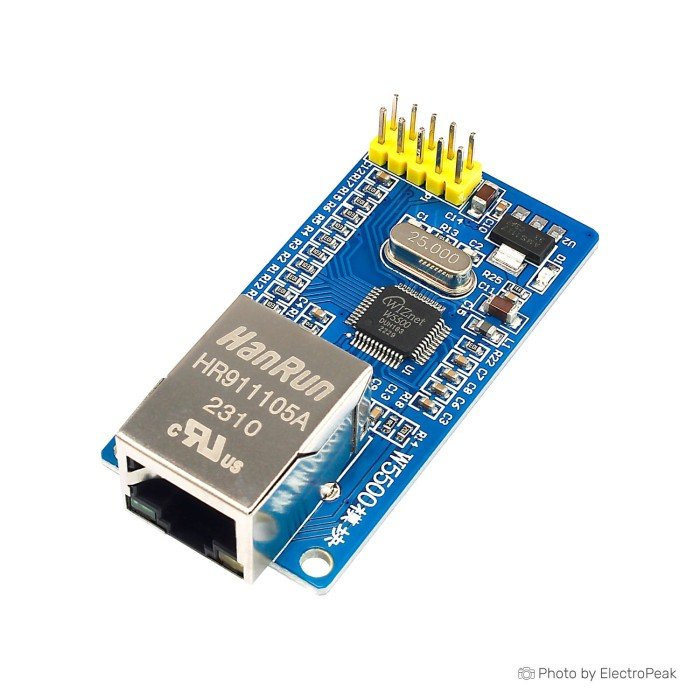

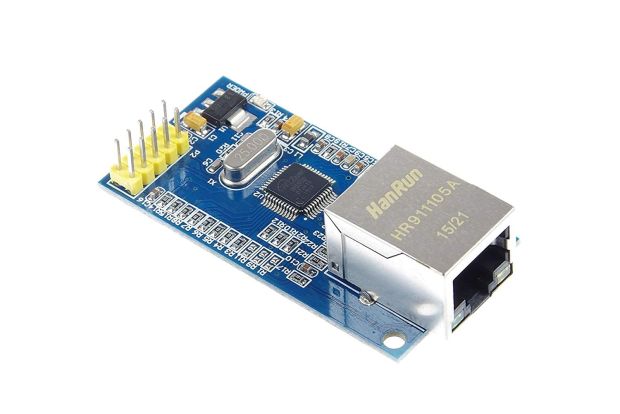

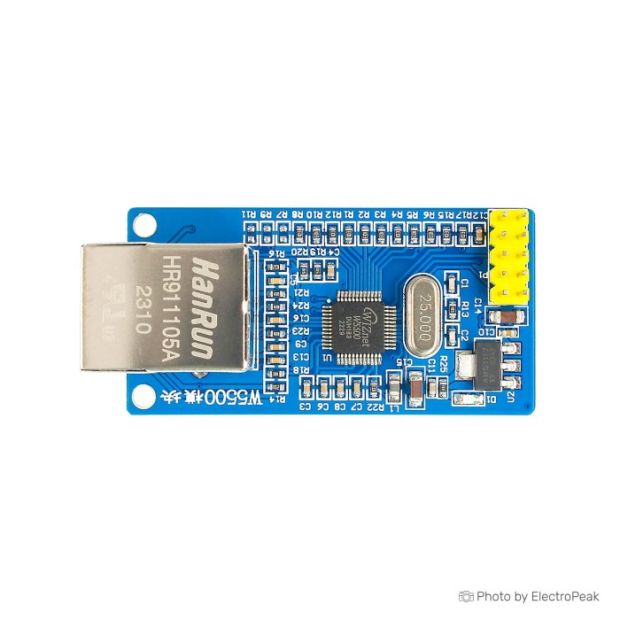

W5500 Ethernet Network Module SPI to Ethernet TCP/IP
The W5500 Ethernet Network Module is a high-performance hardware TCP/IP embedded Ethernet controller module designed for adding wired internet and network communication capabilities to microcontroller-based systems. It is widely used in Arduino projects, IoT systems, industrial automation, smart home devices, robotics, DIY electronics, final year projects, mini projects, and research applications.
This module is based on the powerful WIZnet W5500 Ethernet chip, which supports complete TCP/IP protocol stack in hardware, reducing the processing load on the microcontroller. It communicates using the SPI interface, making it compatible with popular development boards such as Arduino Uno, Mega, Nano, ESP32, STM32, Raspberry Pi, and NodeMCU.
₹ 389
₹ 430
The W5500 SPI Ethernet module is ideal for applications requiring stable and fast wired network communication. It is commonly used in IoT gateways, remote monitoring systems, industrial automation, smart home devices, and embedded web servers.
Compatible with Arduino IDE Ethernet libraries, ESP32, STM32, Raspberry Pi, and PLC-based systems, this module is suitable for students, hobbyists, and professional developers.
Key Features
- WIZnet W5500 Ethernet controller chip
- Hardware TCP/IP protocol support
- SPI communication interface
- Supports 10/100Mbps Ethernet
- Up to 8 independent sockets
- Low power consumption
- Stable wired network communication
- Easy interface with Arduino & ESP32
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Ethernet Network Module |
| Ethernet Chip | W5500 |
| Interface | SPI |
| Network Speed | 10/100 Mbps |
| Supported Protocols | TCP, UDP, ICMP, IPv4 |
| Operating Voltage | 3.3V / 5V Compatible |
| Socket Support | 8 Hardware Sockets |
| Connector Type | RJ45 Ethernet Port |
How to Use
- Connect SPI pins to microcontroller
- Connect module to LAN cable via RJ45 port
- Install Ethernet library in Arduino IDE
- Configure IP address and upload code
- Start network communication
Applications
- IoT and smart home systems
- Industrial automation
- Embedded web servers
- Remote monitoring systems
- Robotics and networking projects
Package Includes
- 1 × W5500 Ethernet Network Module
