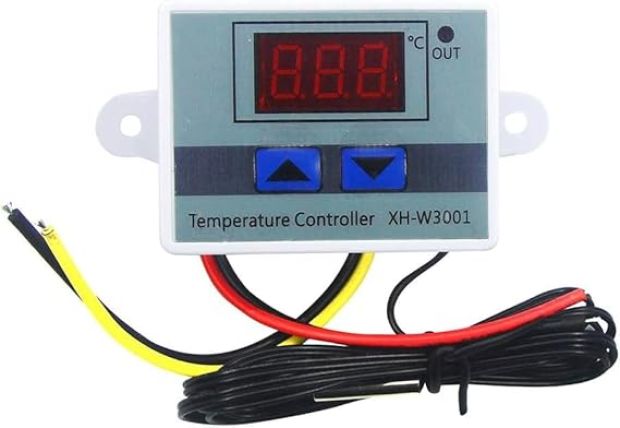

The XH-W3001 DC 24V 240W Digital Temperature Controller Module is a standalone, intelligent microcomputer-driven thermostat designed to simplify industrial and hobbyist thermal automation. Managing extreme heat or specialized refrigeration setups manually is highly inefficient and risks component failure. The XH-W3001 replaces manual tracking by using a dedicated microprocessor that samples real-time environmental data through a 1-meter waterproof NTC10K sensor probe. It instantly compares these readings against user-defined upper and lower limits, executing instantaneous power toggles to maintain your exact target temperature.

This specific variant operates entirely on a 24V DC system architecture. Unlike standard control boards that provide simple dry-contact relay switches (which require secondary power routing), the XH-W3001 features a direct power output layout. The 24V DC voltage fed into the device is pushed directly out through the load wires when the internal switch engages. Rated to handle a continuous current capacity of 10A, it drives up to 240W of total output power, making it robust enough to run large 24V DC cooling fans, thermoelectric Peltier elements, heating pads, and heavy-duty industrial solenoids.

Key Features and Benefits

• Direct 24V Power Toggling: Simplifies system architectures by passing the 24V input voltage directly to the output lines, cutting down on messy wiring junctions.

• Heavy-Duty 240W Power Rating: Comfortably switches high-power 24V DC components up to 10A without needing an external power relay or secondary contactor.

• 1-Meter Waterproof Sensor Probe: Equipped with a ruggedized, fluid-sealed NTC10K thermistor probe that can be fully submerged in liquids or chemical baths without degrading.

• Dual-Button Hysteresis Calibration: Simplifies user setups; separate, dedicated push buttons let you set the precise "Start Temperature" and "Stop Temperature" to prevent erratic short-cycling.

• Non-Volatile Internal Memory: Features an integrated EEPROM layout that securely saves your temperature thresholds during unexpected system power cuts or complete shutdowns.

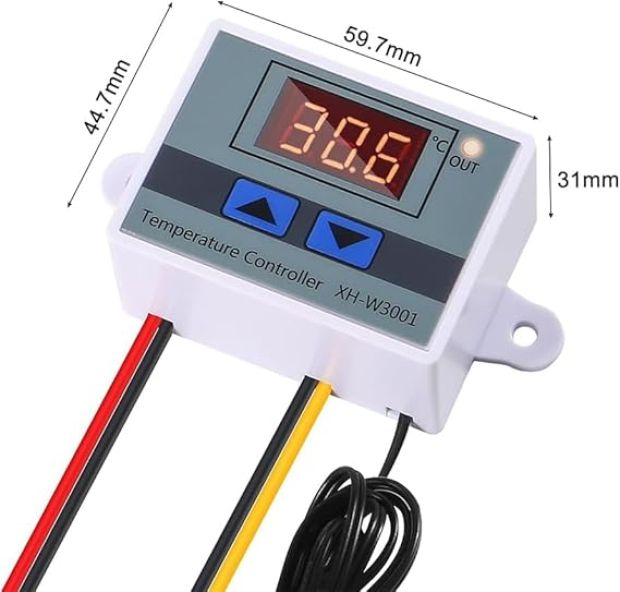

Technical Specifications

How to Configure & Wire

⚠️ WIRING TYPE & VOLTAGE MANDATE: This is strictly a DC 24V powered controller that outputs DC 24V power. Do not connect standard 220V AC household mains power to either the input or output wire pairs, as doing so will instantly destroy the internal circuitry and creates a severe electrical hazard.

Wire Harness Identification:

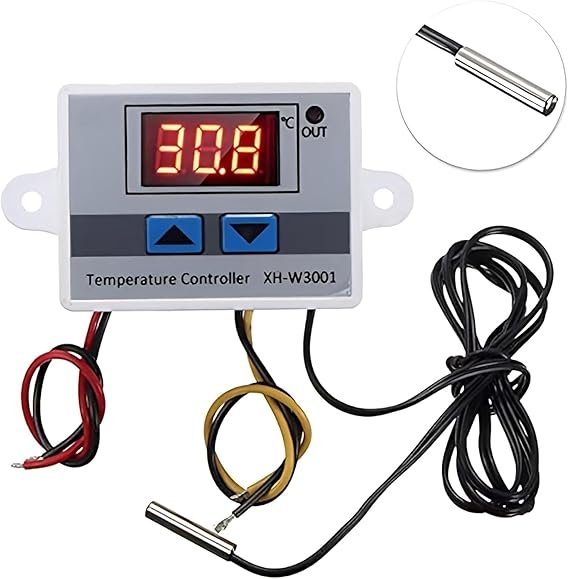

• Input Pair (Red/Black Leads): Connect directly to your stable 24V DC Power Supply. (Red = +24V Positive, Black = GND Negative).

• Output Pair (Yellow/Black Leads): Connect directly to your 24V target appliance/heater/fan. (Yellow = +24V Switched Positive, Black = GND Negative).

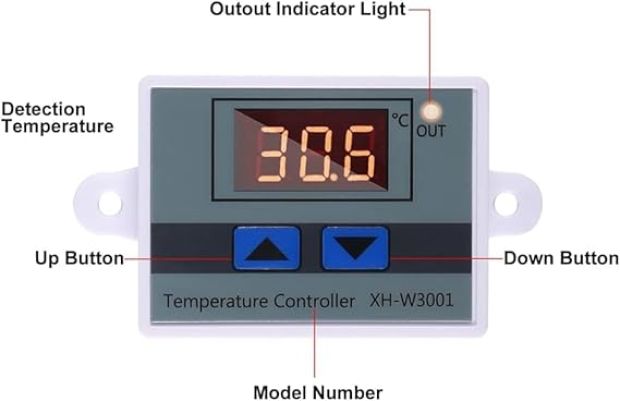

Threshold Configuration Guide:

The XH-W3001 uses two direct memory values to control your environment: the Start Temperature (Up Arrow button) and the Stop Temperature (Down Arrow button).

• To View Set Points: Tap the Up Arrow once to display the current Start Temperature. Tap the Down Arrow once to view the current Stop Temperature.

• To Calibrate Set Points: Press and hold down either the Up or Down arrow button for roughly 3 seconds until the 3-digit LED screen begins flashing. While it is flashing, use the Up and Down buttons to set your desired temperature value. Leave the module idle for 5 seconds to lock the value into memory.

Operating Logic Scenarios:

1. Heating Mode Setup (Start Temp < Stop Temp):

   • Example: You want to keep a custom incubator at 37°C. Set the Start Temp to 35°C and the Stop Temp to 37°C. The module will turn ON your heating element the moment the probe drops to 35°C and turn it OFF once it reaches 37°C.

2. Cooling Mode Setup (Start Temp > Stop Temp):

   • Example: You need to cool an industrial enclosure. Set the Start Temp to 30°C and the Stop Temp to 25°C. The controller will activate your 24V cooling fans as soon as the box heats up to 30°C and turn them off once the temperature drops down to a safe 25°C.

Applications

• Automated Egg Incubators: Maintains steady, localized heat levels required to successfully hatch avian or reptile eggs in DIY incubator boxes.

• Industrial Panel Enclosure Cooling: Activates heavy-duty 24V cabinet exhaust fans to protect programmable logic controllers (PLCs) and motor drives from overheating.

• Hydroponics & Aquaponics Monitoring: Submerges directly into nutrient reservoirs or fish breeding tanks to manage 24V water heaters or cooling inline loops.

• Solar Water Heating Arrays: Activates 24V inline fluid circulation pumps based on temperature deltas between solar collection panels and thermal storage tanks.

Package Includes

• 1 x XH-W3001 DC 24V 240W Digital Temperature Controller Module

• 1 x 1-Meter Attached Waterproof NTC10K Sensor Probe
