Detailed Description

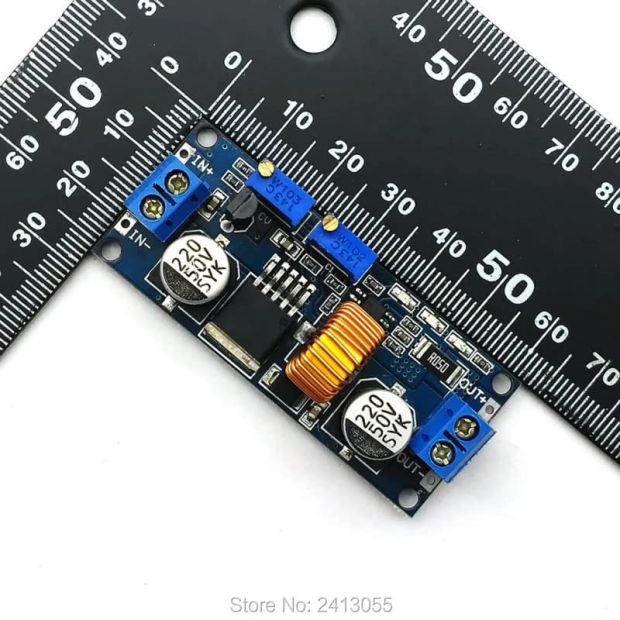

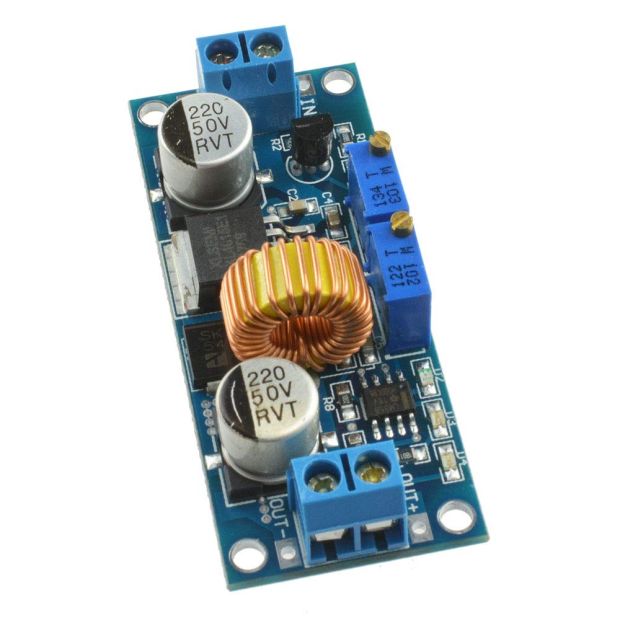

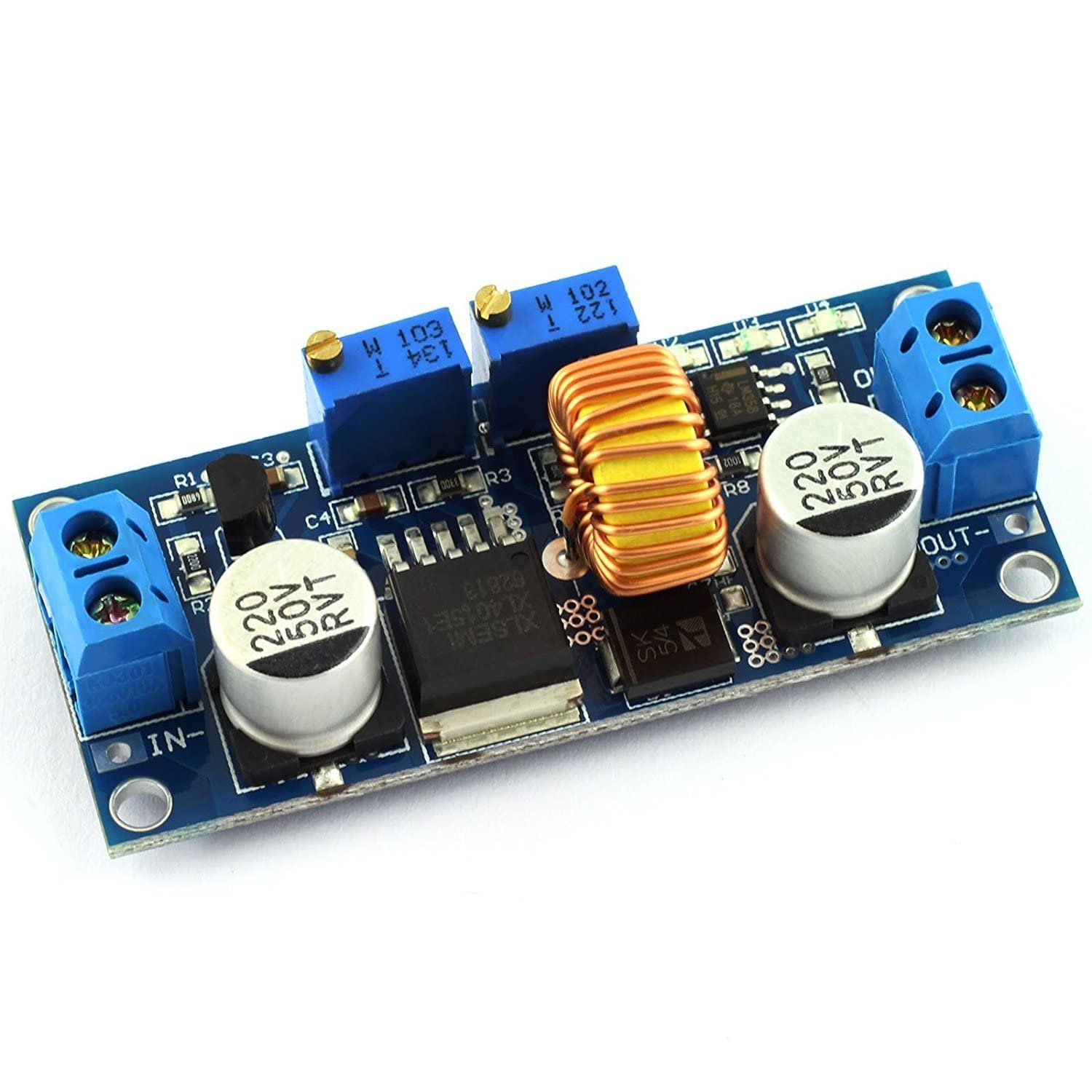

The XL4015 5A DC-DC Step Down Buck Converter with Constant Current Adjustment is an ultra-reliable, high-capacity step-down switching regulator module designed to efficiently step down raw, unregulated DC input voltages. Driven by the rugged XL4015 IC chip running at a fixed 180KHz switching frequency, this module handles a wide input window from 4V to 38V DC. It steps this down to a user-defined output voltage range of 1.25V to 36V DC, operating with conversion efficiencies as high as 96%. This performance vastly outclasses older linear regulators like the LM317 or 78XX series, which lose excessive energy as waste heat.

A key advantage of this specific breakout board configuration is its dual-control architecture (CC/CV operation). Outfitted with two high-precision, multi-turn potentiometers, users can adjust not only the output voltage (Constant Voltage mode) but also establish a strict output current limit (Constant Current mode) from 0A up to 5A. This precise current control prevents downstream components from drawing excessive current, protecting sensitive circuits. The module also features three integrated status LEDs that provide instant visual feedback on charging states and current limiting, making it an excellent standalone solution for charging complex battery chemistries safely.

Key Features and Benefits

• Heavy-Duty 5A Output Drive: Delivers a continuous output current of up to 3.5A under standard air convection, and scales up to 5A peak output with an added external heatsink or active fan cooling.

• Independent CC and CV Control: Two multi-turn trimpots provide highly precise control over voltage levels and maximum current limits, protecting connected devices from overcurrent events.

• High Efficiency Switching Topology: Operates at a 180KHz switching frequency to deliver conversion efficiencies up to 96%, reducing thermal build-up and saving energy.

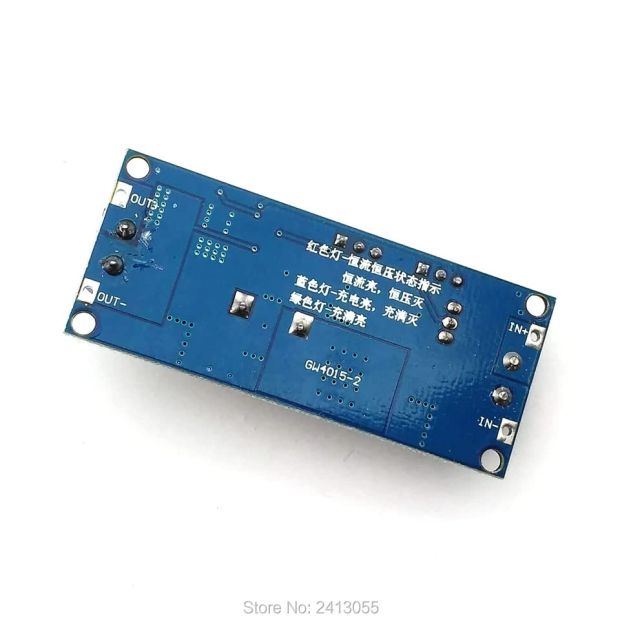

• Onboard Multi-LED Status Indicators: Features three convenient onboard status LEDs: one for Constant Current activation (CC Indicator), one for active charging state, and one to signal that charging is complete.

• Comprehensive Silicon Protection Suite: Built-in hardware safeguards include thermal shutdown protection, cycle-by-cycle overcurrent limiting, and output short-circuit protection to keep your project safe.

Technical Specifications

How to Use

⚠️ CAUTION: This is a buck converter module. The input voltage must always be at least 1.5V to 2V higher than your desired output voltage. The module does not feature reverse-polarity protection on its inputs; double-check your connections before powering up.

For General Constant Voltage Applications (Powering Circuits):

1. Connect your input power source to the IN+ and IN- screw terminals.

2. Use a digital multimeter set to DC Voltage mode to probe across the OUT+ and OUT- terminals.

3. Turn the Voltage Adjustment Potentiometer (typically located closest to the input terminals) using a small flathead screwdriver until the multimeter displays your desired operating voltage.

For Battery Charging & Constant Current LED Setup:

1. Adjust the output voltage to match your battery's maximum safe charging voltage (e.g., set to 4.2V for a single-cell Li-Ion battery).

2. Switch your multimeter to DC Current mode (set to the 10A or 20A terminal) and probe directly across the OUT+ and OUT- terminals.

3. Turn the Current Adjustment Potentiometer until the multimeter displays your target charging current (e.g., 1.0A for a 1A charge rate).

4. Remove the multimeter leads. Your module is now calibrated and ready to safely charge your battery pack or drive high-power LEDs.

Applications

• High-Power LED Constant Current Drivers: Safely drives 10W to 40W LED arrays by locking the current limit to prevent thermal runaway.

• Lithium Battery Charging Stations: Acts as a complete CC/CV charging controller for Lithium-Ion, Lithium Polymer (LiPo), Lithium Iron Phosphate (LiFePO4), and Lead-Acid batteries.

• DIY Benchtop Laboratory Power Supplies: Combines with a digital volt-amp panel meter to create an adjustable, current-limited workshop power supply.

• Solar Panel Voltage Regulation: Stabilizes fluctuating DC voltages from outdoor solar panels down to a steady output for charging batteries or running electronics.

• Industrial Stepper & High-Torque DC Motor Control: Supplies the high starting currents required by heavy robotic actuators and motor driver shields without dropping voltage logic.

Package Includes

• 1 x XL4015 5A DC-DC Step Down Buck Converter Module with CC/CV Adjustment Pots

• 1 x Miniature Self-Adhesive Aluminum Heatsink block
