Detailed Description

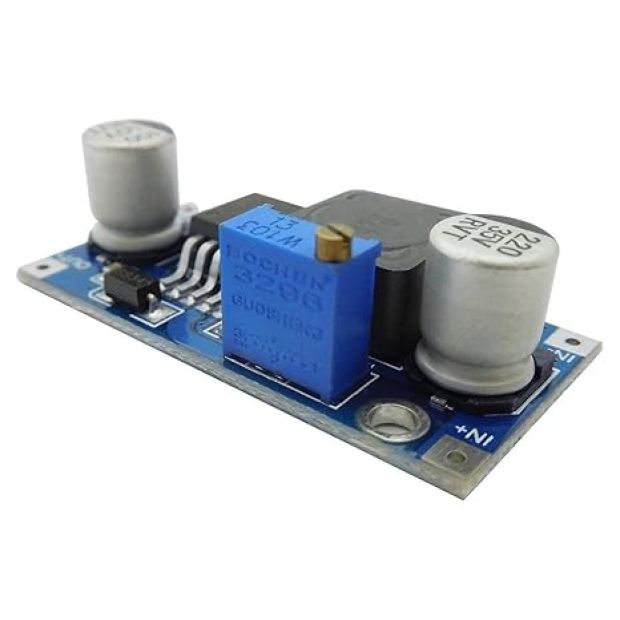

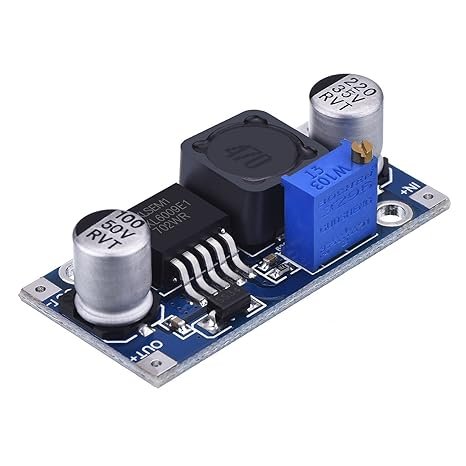

The XL6009 4A DC-to-DC Adjustable Step-Up Boost Converter Module is a robust, non-isolated switching regulator breakout board built to handle demanding voltage amplification setups. Traditional step-up modules rely on legacy architectures (like the LM2577) that operate at low switching frequencies ($pprox 50 ext{KHz}$), resulting in massive electrical heat dissipation, larger ripple noise, and bulky capacitor components. The XL6009 bypasses these limitations by leveraging a 400KHz high-frequency PWM switching frequency. This high frequency minimizes output ripple to just 50mV while allowing the board to remain incredibly compact.

Equipped with a built-in 4A high-efficiency MOSFET power switch, the module converts lower input voltages into higher, strictly regulated output voltages. An onboard multi-turn trimmer potentiometer (preset) lets you lock in the exact output voltage required for your application. Whether you need to boost a single 3.7V lithium cell up to 5V for a micro-controller or step up a 12V battery source to 24V for industrial relays, this module handles the task with up to 94% efficiency.

Key Features and Benefits

• High-Current 4A MOSFET Internal Switch: Comfortably drives high-current operations with significantly lower internal resistance and better thermal performance than standard legacy regulators.

• Onboard Multi-Turn Precision Potentiometer: Features a high-accuracy trimming screw for fine-tuning the output voltage down to decimal increments, ensuring it won't shift during minor vibration events.

• Superior 400KHz Switching Frequency: Minimizes output ripple and noise artifacts down to a clean 50mV, providing stable power to sensitive analog circuits or radio transceivers.

• Up to 94% Conversion Efficiency: Minimizes power lost as heat during conversion, maximizing battery life and tracking runtime in remote operations.

• Built-in Overcurrent Protection: Outfitted with an automated internal current-limiting system that minimizes the risk of component burnout during short circuits or excessive load demands.

Technical Specifications

How to Use

⚠️ STRUCTURAL STEP-UP & THERMAL WARNINGS:

1. This is a strictly Step-Up (Boost) converter. The output voltage must always be set higher than the input voltage. If the input voltage matches or exceeds the desired output, the module will pass the raw, unregulated input directly through to the output terminals.

2. If your total output power exceeds 10 Watts or your continuous output current crosses 2.5 Amperes, you must install an external stick-on aluminum heatsink onto the back exposed copper plane of the board to prevent thermal shutdown.

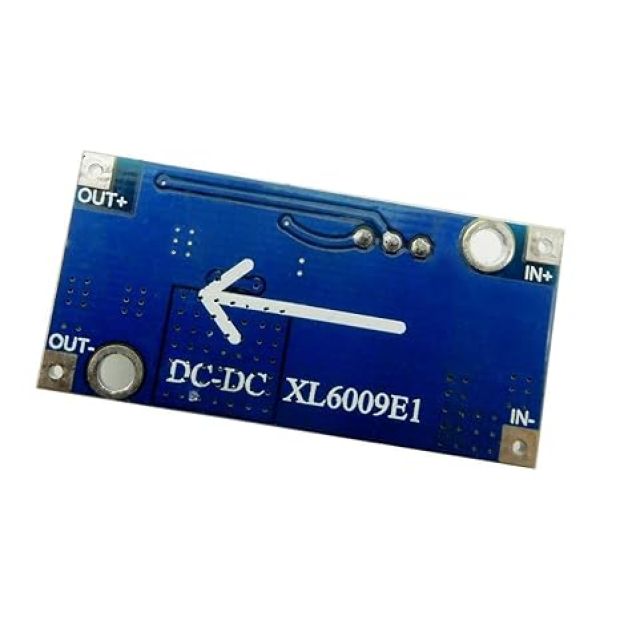

Physical Pinout Connections:

• IN+: Unregulated/Regulated DC Input Positive terminal (3 V to 32 V).

• IN-: Common Input Ground reference.

• OUT+: Regulated Boosted DC Output Positive terminal.

• OUT-: Common Output Ground reference.

Quick Setup Prototyping Steps:

1. Connect a variable DC source (like a battery or bench power supply) across the IN+ and IN- solder pads, keeping wires short to reduce line drop.

2. Hook up a digital multimeter in DC Voltage mode across the OUT+ and OUT- pads.

3. Power on your input supply.

4. Adjust the Output: Use a small flathead screwdriver to turn the brass screw on top of the blue multi-turn potentiometer. Note: If the output voltage remains fixed or matches your input during initial calibration, turn the screw counter-clockwise for 15 to 20 full revolutions until the voltage value begins to rise.

5. Once your multimeter displays your target voltage, disconnect power, wire your intended load across OUT+ / OUT-, and securely power up the full assembly.

Applications

• Automotive Voltage Standardization: Boosts fluctuating 12V automotive batteries up to a stable 19V or 24V to power laptop car chargers and auxiliary telemetry arrays.

• Solar Panel Energy Management: Elevates varying low-voltage outputs from small solar panels up to standard 12V thresholds to match storage cell requirements.

• Portable Battery Bank Scaling: Steps up a single 3.7V Lithium-Ion (18650) cell to a regulated 5V or 12V rail to power Arduino shields, remote sensors, and routers.

• High-Power LED Driver Chains: Drives series-connected high-power LED strings that demand operating voltages higher than your system's main supply battery can provide.

Package Includes

• 1 x XL6009 4A DC-to-DC Adjustable Step-Up Boost Converter Module
