Detailed Description

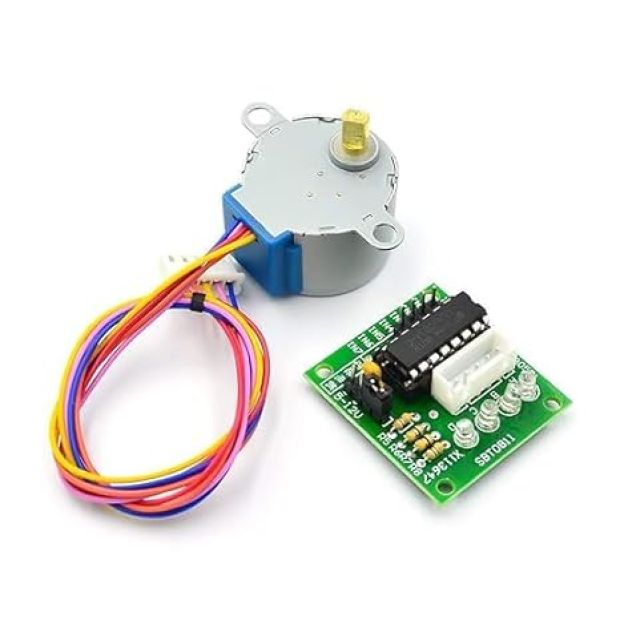

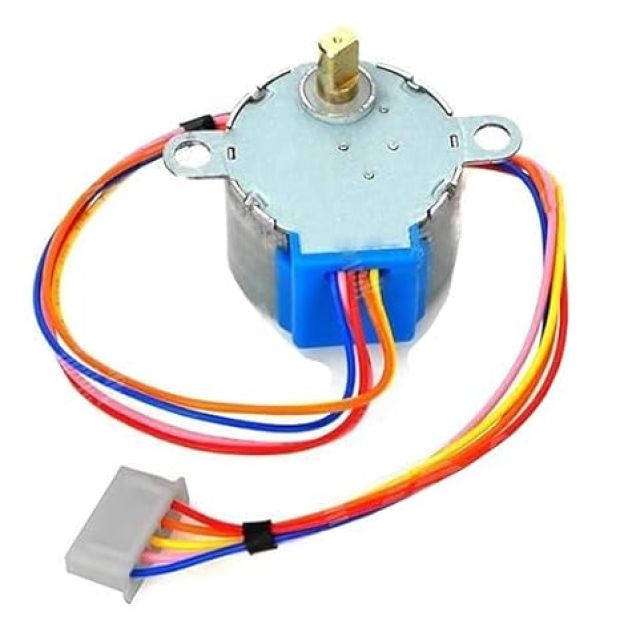

The 28BYJ-48 5V DC Stepper Motor and ULN2003 Driver Board Kit is a highly efficient, heavy-duty electromechanical assembly engineered to translate digital pulses into exact mechanical shaft movements. Unlike standard continuous-rotation DC motors that spin unpredictably based on voltage variances, the 28BYJ-48 is a unipolar stepper motor that moves in discrete, micro-calculated angular increments. It features a native 5.625° internal step angle, which is routed through an onboard 1:64 reduction gear train. This mechanical gearing dramatically amplifies the output torque while refining the final output shaft step size to a precise 0.087° per step (calculating to roughly 4096 full steps per complete $360^circ$ rotation in half-step mode).

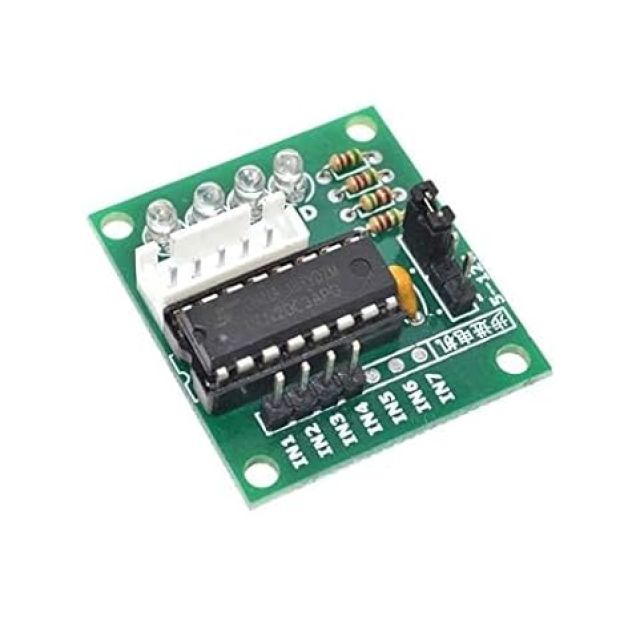

Because microcontrollers cannot output the high electrical current required to drive the motor's electromagnetic coils directly, the kit includes a dedicated ULN2003 Driver Breakout Board. Populated with the rugged ULN2003 high-voltage, high-current Darlington transistor array, this driver translates weak, low-current logic signals from your microcontroller into heavy 5V current pulses. The driver breakout features four integrated onboard status LEDs corresponding to the internal coil activation phases (A, B, C, D), providing clear visual feedback during code testing and debugging loops.

Key Features and Benefits

• Massive Geared Mechanical Torque: Internal 1:64 reduction gearing maximizes torque capability, allowing this compact 5V assembly to effortlessly rotate heavy structural linkages, levers, and camera brackets.

• Highly Precise Micro-Step Resolution: Achieves up to 4,096 unique position increments per full revolution when driven in half-step mode ($0.087^circ$ resolution), eliminating the need for expensive external optical encoders.

• Onboard Visual Telemetry LEDs: Features four clear indicator LEDs (IN1-IN4) on the ULN2003 board that light up sequentially to show active electromagnetic coil steps in real time.

• Isolated High-Current Protection: The ULN2003 driver safeguards your microcontroller from dangerous inductive back-EMF voltage spikes using internal flyback suppression diodes.

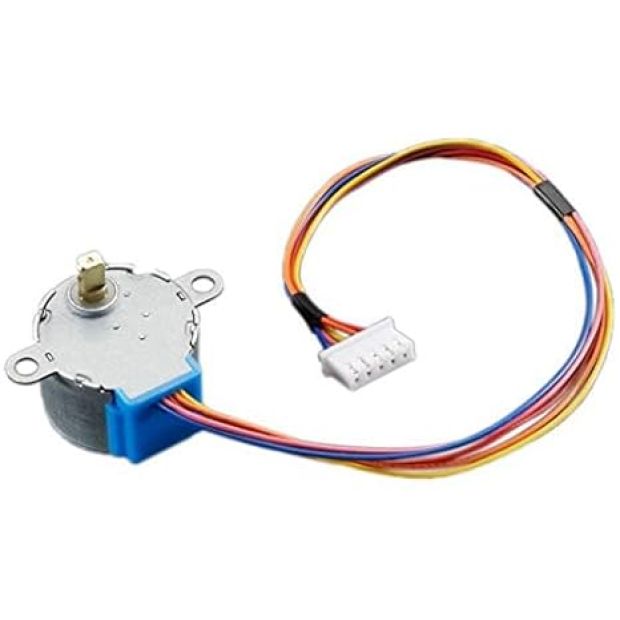

• Foolproof Plug-and-Play Connectors: The motor comes pre-wired with a standard 5-pin JST-XH socket that plugs directly into the keyed header on the ULN2003 board, preventing reverse-polarity wiring mistakes.

Technical Specifications

How to Use & Hardware Interfacing

Pinout Mapping (ULN2003 Control Input Edge):

• IN1, IN2, IN3, IN4: Digital step logic input channels. Connect these to four digital I/O pins on your microcontroller (e.g., Pins 8, 9, 10, 11 on an Arduino Uno).

• GND (-): Common circuit ground connection rail. Connect to your external power supply ground and microcontroller ground.

• VCC (+): Driver power input supply rail (+5V to +12V DC max). Connect to an external 5V power adapter.

Step Sequence Excitation Logic Table:

To smoothly rotate the stepper motor shaft, the internal coils must be energized in a precise sequential order. The most common sequence for maximum stability and resolution is the 4-Phase Half-Step Sequence (8-Step Pattern):

Quick Setup Prototyping Steps:

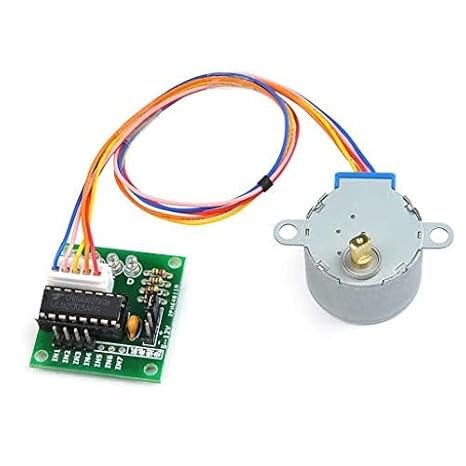

1. Securely plug the 5-pin JST-XH cable harness from the 28BYJ-48 motor into the matching white socket terminal nested on the ULN2003 driver board.

2. Wire the logic inputs (IN1 through IN4) to your microcontroller using female-to-male jumper wires.

3. Connect External Power: Connect an external 5V DC power source directly to the VCC (+) and GND (-) terminals on the driver board. Do not use your microcontroller's 5V pin to power the motor, as its inductive current draw can cause the microcontroller to brown out or reset.

4. Deploy the Code: Open your programming environment (such as the Arduino IDE). Use the native <Stepper.h> library or write a custom step loop that outputs the 8-step pattern listed above to begin rotating the shaft.

Applications

• Smart Robotic Arms & Grippers: Provides fine mechanical angular tracking for robotic joints, wrist movements, and end-effector grippers.

• Automated Home Security Cameras: Easily controls pan-tilt mirror movements or security camera lenses, allowing for remote directional adjustments.

• Custom Automatic Window Blinds: Drives internal pull-strings or mechanical tracks to automatically open or close curtains based on scheduling sensors.

• Industrial CNC & 3D Printer Feeders: Operates as a reliable, low-cost solution for low-load material feeding arrays, sorting flaps, and automatic gate valves.

• Automatic Pet Feeders: Rotates internal plastic dispensing augers at exact timing increments to drop calculated portions of food into pet bowls.

Package Includes

• 1 x 28BYJ-48 5V DC Reduction Unipolar Stepper Motor

• 1 x ULN2003 High-Current Transistor Driver Interface Board
