Detailed Description:

Unleash robust and precise motion in your embedded projects with the TT555 12V 7RPM Rectangular Gearbox DC Motor. This specialized DC motor is engineered for applications demanding high torque at very low rotational speeds, making it an ideal choice for robotics, automation systems, slow-moving conveyors, automated gates, model elevators, and various mechanical devices where controlled, powerful movement is paramount.

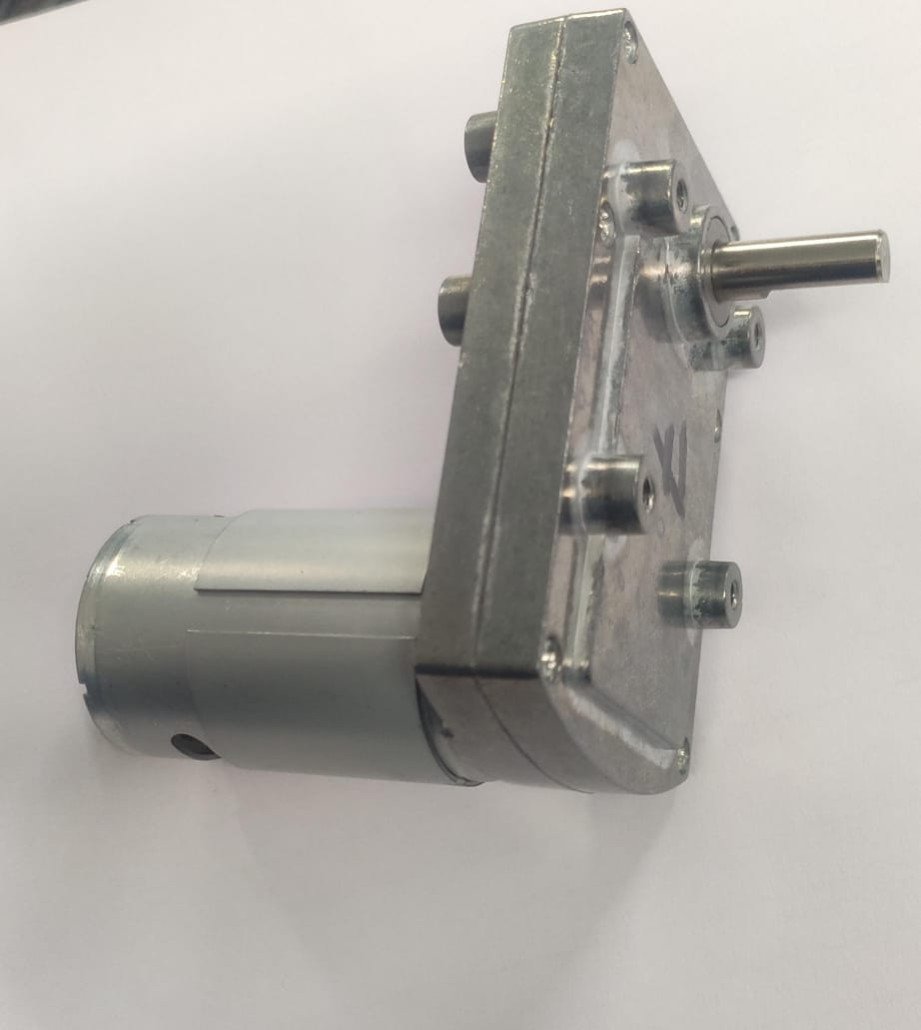

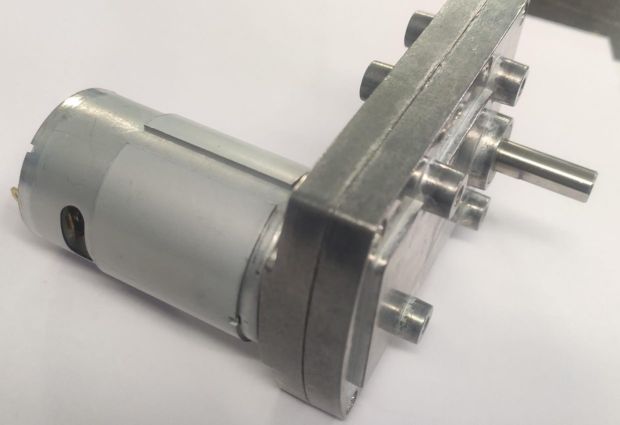

The TT555 features a high-quality rectangular gearbox integrated with a powerful 12V DC motor, meticulously designed to deliver a steady output speed of approximately 7 Revolutions Per Minute (RPM). This significant gear reduction transforms the motor's inherently high speed and low torque into the desired high torque, low-speed output, enabling it to drive heavy loads and maintain position with greater force. The rectangular housing provides a compact form factor for easier integration into diverse designs.

Operating reliably on a standard 12V DC power supply, this motor is often equipped with features like a customized longer shaft (e.g., 27mm with M4 tapping) and a D-type shaft, which greatly simplifies the mounting of wheels, couplings, or other mechanical components. While its primary function is direct control by applying 12V, its speed can also be precisely controlled using Pulse Width Modulation (PWM) through a suitable motor driver (e.g., L298N, BTS7960, or a MOSFET-based driver). This allows for fine-tuning of speed and, crucially, direction control (forward and reverse). Many versions of the TT555 are also "Encoder Compatible," meaning they have a back shaft that can be fitted with an encoder for closed-loop control, enabling highly accurate position and speed feedback. For anyone in Pune, Maharashtra, India, seeking a durable, high-performance, and versatile geared motor for their next robotic or automation endeavor, the TT555 12V 7RPM Rectangular Gearbox DC Motor stands as an excellent solution.

The TT555 DC Motor with a 7RPM rectangular gearbox is designed for projects requiring steady, powerful torque at very low speeds. Operating at 12V DC, it features a robust gear system housed in a compact rectangular casing, offering long-term durability and consistent output.

It is ideal for automated gates, robotic joints, model elevators, and slow conveyor systems, where high accuracy and torque are more important than speed. The dual shaft output provides additional flexibility for encoder attachment or motion control setups.

Key Features:

• Operates on 12V DC with 7 RPM speed

• Delivers high torque output at low speed

• Rectangular gear housing for compact integration

• Suitable for continuous or intermittent use

• Low noise, stable operation

• Easy to mount using side screws or clamps

• Ideal for DIY, robotics, and light industrial automation

Technical Specifications:

How to Use:

1. Connect the motor terminals to a 12V power supply or motor driver.

2. Use an L298N or BTS7960 motor driver for direction and speed control.

3. Mount securely using the gearbox side holes or brackets.

4. Ideal for pairing with limit switches or encoders for position control.

Compatible Controllers: Arduino, Raspberry Pi, STM32, NodeMCU, and all 12V relay/MOSFET driver systems.

Applications:

• Robotic arms & joints

• Model elevators & automated doors

• Slow-speed conveyors

• Smart display turntables

• Gate openers & barrier mechanisms

• DIY home automation systems

• CNC and mechatronics training projects

Package Includes:

• 1 x TT555 12V 7RPM Rectangular Gearbox DC Motor

• (Mounting brackets, motor drivers not included)
