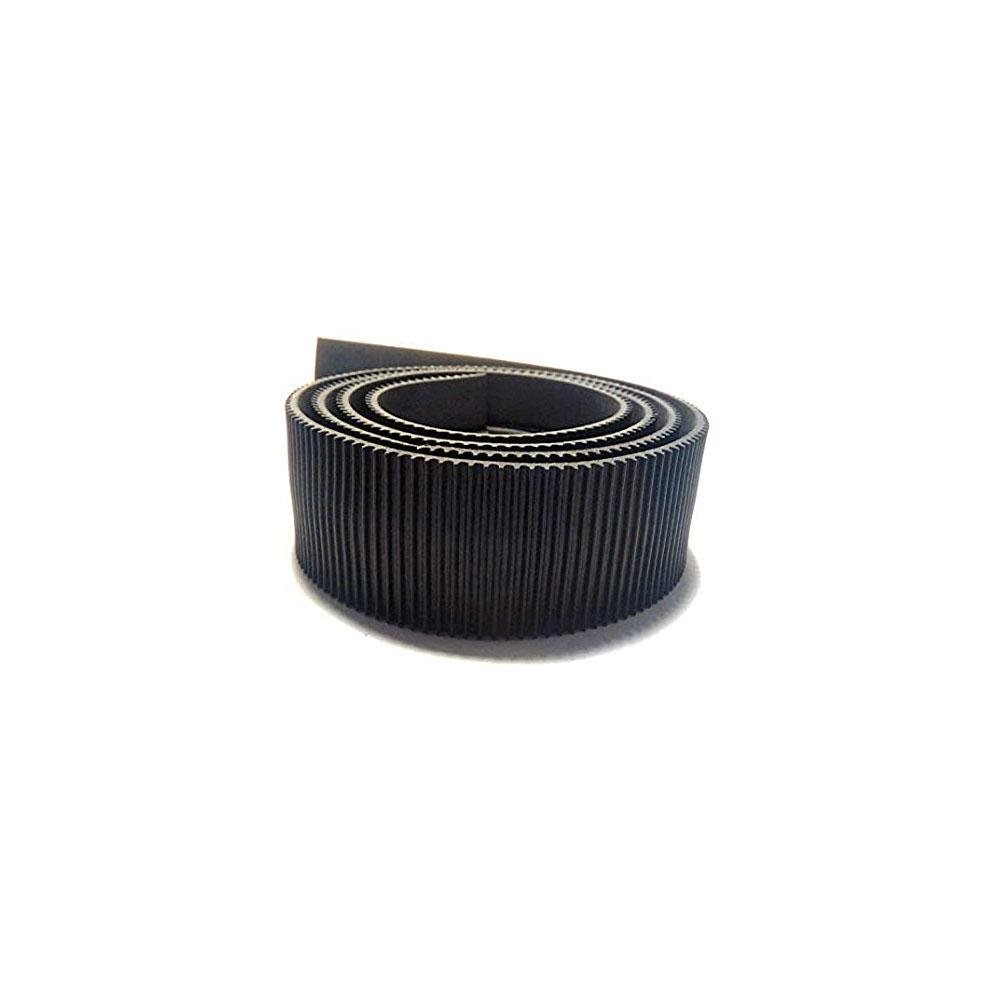

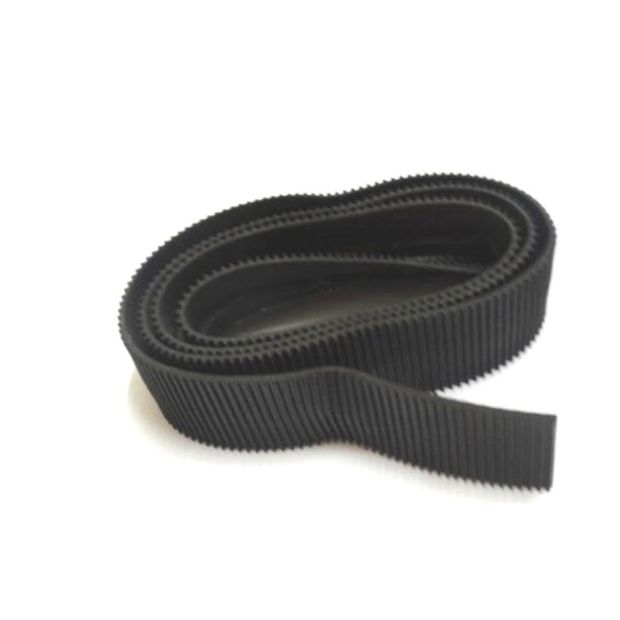

The Electroboat 4cm Width 120cm Length Continuous Rubber Track Belt is engineered for heavy-duty mobile robotics builders who require maximum ground contact surface, exceptional stability, and heavy-payload navigation. By spreading overall vehicle mass across an extra-wide 40mm tread face and a long 1200mm loop perimeter, this continuous track prevents wheel sinkage in soft soil and eliminates slippage over steep inclines.

Manufactured using industrial-grade synthetic rubber, the outer surface is equipped with deep, anti-skid lug patterns built to handle gravel, mud, concrete, tiles, and wooden surfaces. The inner surface features precision-molded drive teeth designed to lock securely into 4cm wide pulley wheels or sprocket gears, ensuring smooth forward and reverse torque delivery without track dislodgement.

Key Features and Benefits

• Extra-Long 120cm Perimeter (1200mm Loop): Allows design flexibility for extended-length chassis and multi-wheel bogie suspension setups.

• Ultra-Wide 4cm (40mm) Contact Surface: Enhances weight distribution, lateral stability, and anti-tipping safety under heavy loads.

• Molded Inner Tooth Lugs: Keeps the track belt firmly engaged with drive pulleys, preventing slip during high-torque turning maneuvers.

• Heavy-Duty Rubber Compound: Highly resistant to wear, tearing, and stretching under continuous mechanical operation.

• Versatile Platform Compatibility: Perfect for heavy-duty 2-track or 4-track robot tank chassis, snowplow prototypes, and mini industrial conveyor systems.

Technical Specifications

How to Use

1. Position the rubber track belt around your drive pulley (connected to a high-torque 6mm DC geared motor) and passive idler wheels.

2. Adjust the chassis wheel distance to achieve correct belt tension along the 120cm loop (ensuring the track is taut without over-straining the drive shaft).

3. Align the inner drive lugs of the belt with the matching teeth or grooves of your 4cm wide pulley wheels.

4. Run slow-speed test rotations to check alignment before operating under full payload.

Applications

• Heavy-Duty All-Terrain Caterpillar Tank Rovers & Exploration Platforms

• Industrial Inspection, Stair-Climbing & Obstacle-Clearing Robots

• Large-Scale DIY Conveyor Belts & Automated Material Handling Models

• Advanced STEM, University Engineering Projects, & Defense Prototypes

• Wireless RC Heavy Tanks & Remote Agricultural Rover Concepts

Package Includes

• 1 x 4cm Width 120cm Length Rubber Track Belt
