Detailed Description

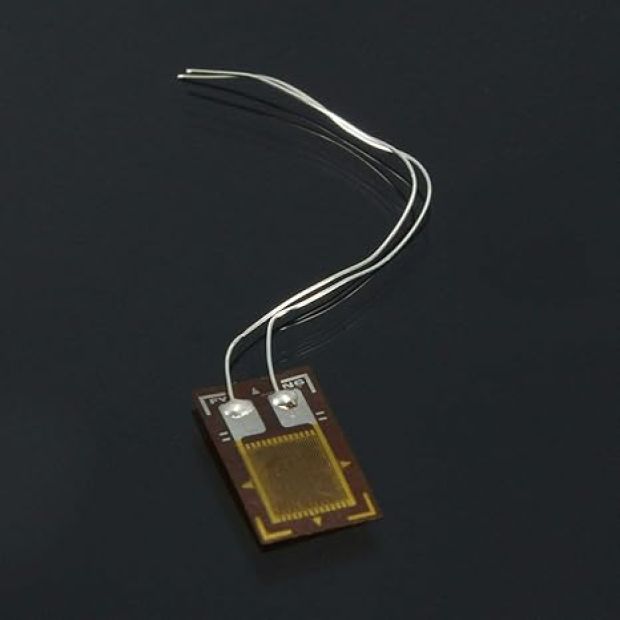

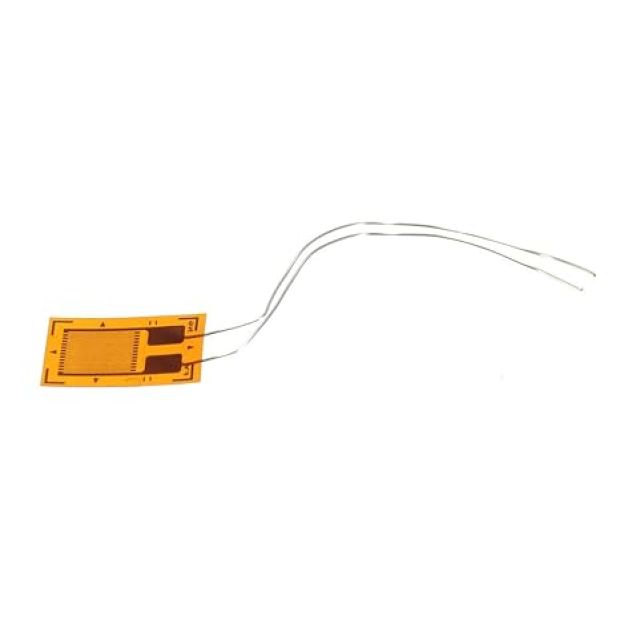

The BF350-3AA High-Precision Foil Resistance Strain Gauge is a highly specialized element engineered to measure structural strain down to the microscopic level. When physical forces compress or stretch a solid object, its surface deforms. When this strain gauge is securely bonded to that surface with a specialized adhesive, it undergoes the exact same deformation. The internal grid pattern, made from an imported constantan alloy foil (comprising 40% Nickel and 1.5% Manganese), stretches or compresses in response. This mechanical change directly alters the wire's length and cross-sectional area, causing its total base resistance to shift proportionally.

The "3AA" designation specifies a tightly controlled grid configuration optimized for clean linear data acquisition. The grid is entirely encapsulated on an ultra-thin modified phenolic epoxy resin backing, which provides reliable electrical insulation from metal frames while effectively transferring physical micro-strains. Designed for high-end applications (such as 0.02-level high-precision pressure transducers and load cells), the BF350 offers excellent static measurement stability. It also features built-in self-compensation properties to counteract minor temperature variations, ensuring your readings remain accurate over long deployment periods.

Key Features and Benefits

• Industry Standard 350-Ohm Nominal Architecture: Delivers cleaner signal-to-noise ratios and lower operating current draw compared to lower-impedance 120-Ohm alternatives.

• Ultra-Durable High Fatigue Lifespan: Rated for at least 1,000,000 cycles without material fatigue or breakdown, ensuring reliable long-term performance under cyclic stress.

• Integrated Temperature Compensation: Optimized to work seamlessly on aluminum or common steel alloys, preventing thermal expansion from being misinterpreted as physical strain.

• Pre-Flattened Copper Ribbon Solder Tabs: Built with accessible, robust solder terminal pads that make attaching thin external lead wires reliable and straightforward.

• High Extensibility Limit: Accurately measures substantial elastic deformations up to a structural strain threshold of 2.0% (20,000 μm/m}$).

Technical Specifications

How to Use & Wiring Strategy

⚠️ ADHESION & SIGNAL AMPLIFICATION MANDATE:

1. The quality of your data depends directly on the mechanical bond. The target surface must be sanded perfectly smooth, degreased with isopropyl alcohol, and bonded using a ultra-thin, uniform layer of high-strength cyanoacrylate (or specialized strain gauge glue).

2. Because the resistance changes are incredibly small (Δ  R is typically in milliohms), you cannot read a raw strain gauge directly with an ordinary Arduino ADC pin. You must configure the gauge within a Wheatstone Bridge circuit and feed the output into a dedicated instrumentation amplifier, such as an HX711 24-bit ADC chip, to translate the signal into usable digital data.

Standard Wheatstone Bridge Quarter-Bridge Layout:

To accurately measure a single BF350-3AA gauge, embed it in a classic Quarter-Bridge layout using three stable, static 350 Ω metal-film resistors:

• Connect the excitation voltage (Vcc and GND) across opposite corners of the bridge network.

• The differential voltage reading (Δ V) is measured across the remaining two central nodes.

• When the gauge deforms, the bridge unbalances, outputting a clear, measurable micro-volt signal directly proportional to the applied structural strain.

Applications

• Custom Load Cell Manufacturing: Used to build or repair precision electronic weigh-scales, balancing platforms, and multi-kilogram force indicators.

• Structural Health Diagnostics: Bonded directly onto bridge support girders, concrete pillars, crane arms, and building trusses to monitor real-time mechanical stress load shifts.

• Aerospace Wing & Gantry Testing: Measures localized flexing on drone wings, aircraft fuselage skeletons, and high-velocity wind-tunnel scale models.

• Biomechanical Prosthetics: Provides localized force-feedback metrics inside artificial limb sockets and mechanical robotic grippers to ensure precise grip pressure control.

Package Includes

• 1 x BF350-3AA Precision Foil Resistance Strain Gauge Element
