Detailed Description

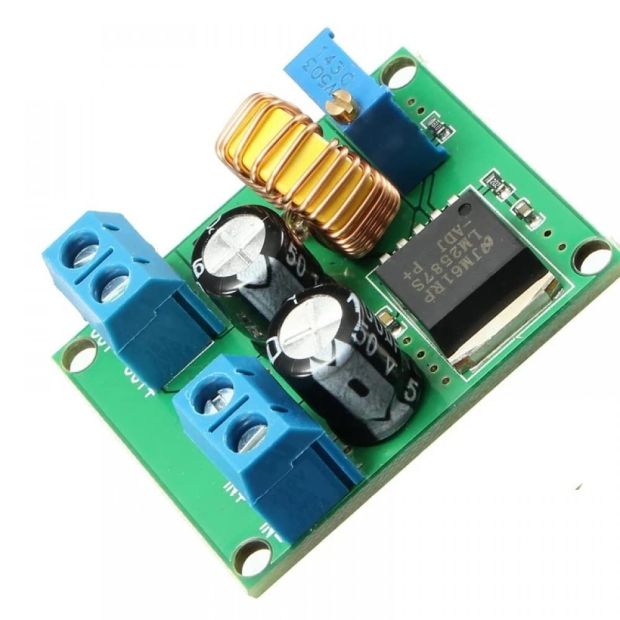

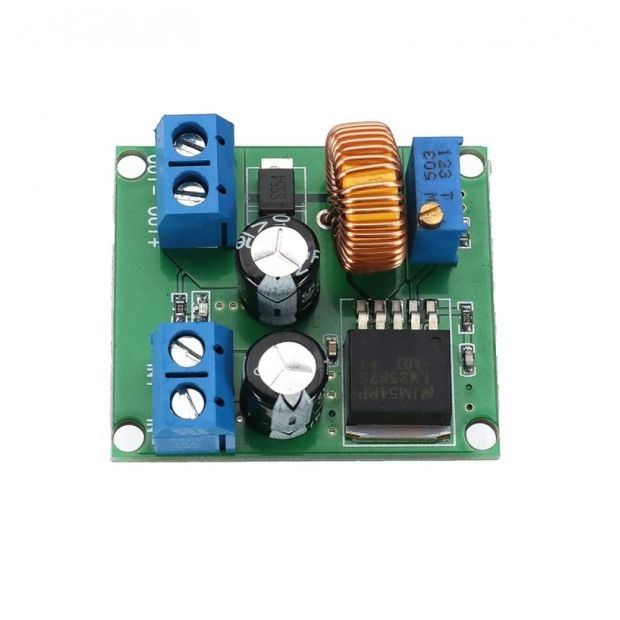

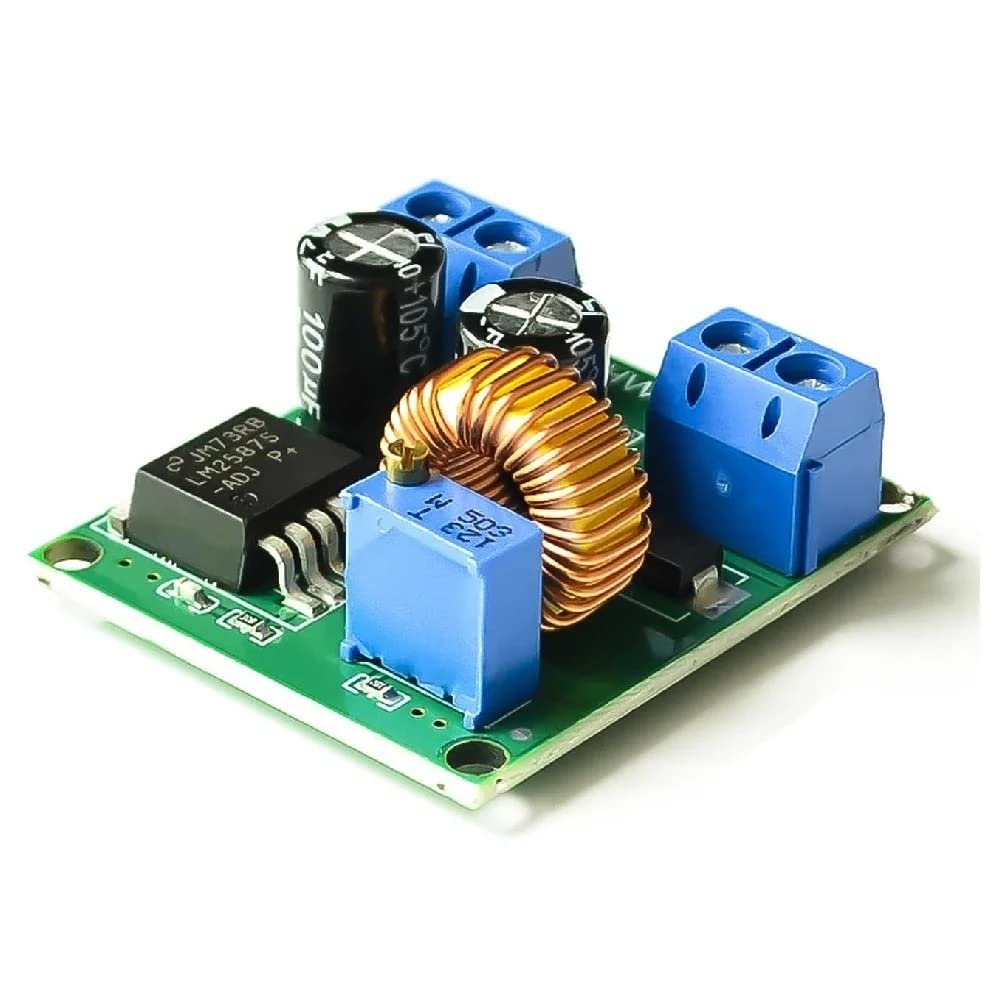

The DC-DC 3V-35V to 4V-40V Adjustable Step-Up Boost Power Converter Module is a high-performance voltage-amplifying breakout board designed to conquer power distribution bottlenecks in complex electronics configurations. When powering equipment from low-voltage sources like single-cell lithium batteries (3.7V), USB ports (5V), or standard AA battery packs, standard linear regulators fail because they cannot output a voltage higher than their input. This high-power booster utilizes non-synchronous switching topology and a heavy-duty storage inductor to repeatedly stack magnetic energy fields, generating a smooth, higher DC output voltage rail tailored perfectly to your application.

This module features a highly adaptive input window of 3V to 35V and safely elevates power up to an adjustable 4V to 40V threshold. Because it relies on a high-frequency internal oscillator, the board maintains clean power conversion while drastically minimizing output ripple noise. An onboard multi-turn precision cermet trimmer potentiometer gives you absolute control over the output voltage down to decimal levels. The thick FR4 PCB layout is designed with expanded copper ground planes to efficiently pull heat away from active switching components, guaranteeing structural stability under prolonged high-current workloads.

Key Features and Benefits

• Wide Range Voltage Amplification: Features an ultra-wide voltage mapping profile, effortlessly elevating low 3V battery inputs up to robust 40V rails.

• Onboard Precision Multi-Turn Potentiometer: Equipped with a high-accuracy trimming screw that allows for ultra-fine output voltage adjustments that won't drift under mechanical vibration.

• Up to 94% Conversion Efficiency: High-efficiency internal architecture limits energy loss as ambient heat, preserving valuable capacity in battery-powered applications.

• Low Output Ripple Noise: High-speed switching cycles keep peak-to-peak output ripple low, ensuring clean, predictable power delivery to sensitive microcontrollers and RF components.

• Ruggedized High-Current Solder Pads: Built with oversized, pre-tinned input and output pads that simplify soldering heavy-gauge hookup wires for high-current applications.

Technical Specifications

How to Use

⚠️ REVERSE POLARITY & STEP-UP OPERATIONAL MANDATES:

1. This is strictly a Step-Up (Boost) converter. The output voltage must always be set higher than the input voltage. If your input voltage exceeds your output target, the module will pass the raw, unregulated input voltage directly through to the output pads, which could damage your load.

2. The module does not include built-in input reverse polarity protection. Double-check your positive (+) and negative (-) connections with a multimeter before powering the circuit. Reversing the input wires will instantly destroy the internal components.

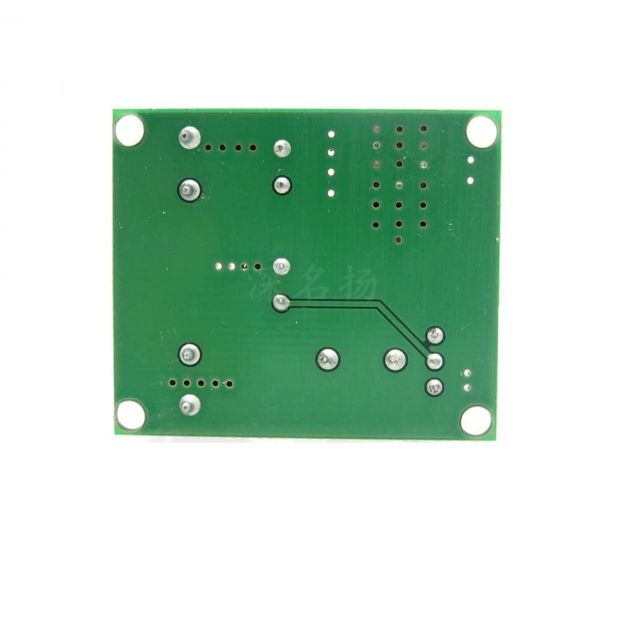

3. If your continuous workload pushes total power dissipation beyond 10 Watts, you must install an external aluminum heatsink onto the underside exposed copper plane of the board to prevent thermal overload.

Physical Pinout Connections:

• IN+: Unregulated/Regulated Low DC Input Positive wire (3V to 35V).

• IN-: Common Input Ground reference wire.

• OUT+: Boosted Regulated DC Output Positive wire (4V to 40V).

• OUT-: Common Output Ground reference wire.

Quick Calibration Steps:

1. Securely solder your unpowered input lines to the IN+ and IN- pads, ensuring correct orientation.

2. Connect a digital multimeter set to DC Voltage mode across the OUT+ and OUT- output pads.

3. Turn on your primary low-voltage input power source.

4. Calibrate Output Voltage: Use a small flathead screwdriver to turn the brass screw on top of the blue multi-turn potentiometer. Note: If the output voltage initially matches the input voltage, turn the screw counter-clockwise for 15 to 20 full rotations until the voltage readout on your multimeter begins to step up. Turn clockwise to lower the voltage target once it is active.

5. Once your multimeter reflects your exact target voltage, cut power, connect your load across OUT+ / OUT-, and re-engage the power supply.

Applications

• Mobile Field Power Banks: Steps up a single 3.7V Lithium-Ion (18650) cell or a 5V USB power bank up to a clean 9V, 12V, or 24V rail to drive networking routers or development boards.

• Automotive Accessory Bridging: Up-regulates standard 12V car electrical systems to stable 19V, 24V, or 36V lines to power laptop chargers, sound amplifiers, and diagnostic telematics.

• High-Power LED Matrix Arrays: Boosts low battery outputs to match the high forward-voltage drop required by multi-watt series-connected LED clusters.

• Solar Grid Voltage Matching: Balances fluctuating low-voltage outputs from small scale solar cell panels to match standard 12V/24V battery charging profiles.

Package Includes

• 1 x DC-DC 3V-35V to 4V-40V Adjustable Step Up Power Module High Power Boost Converter
