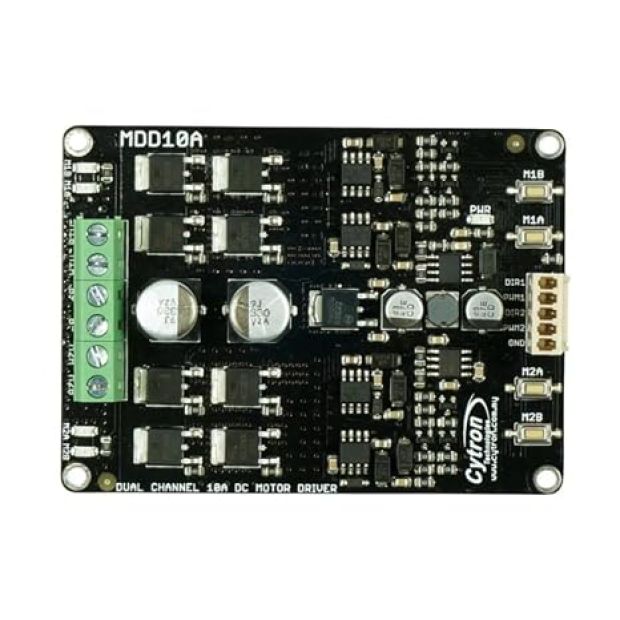

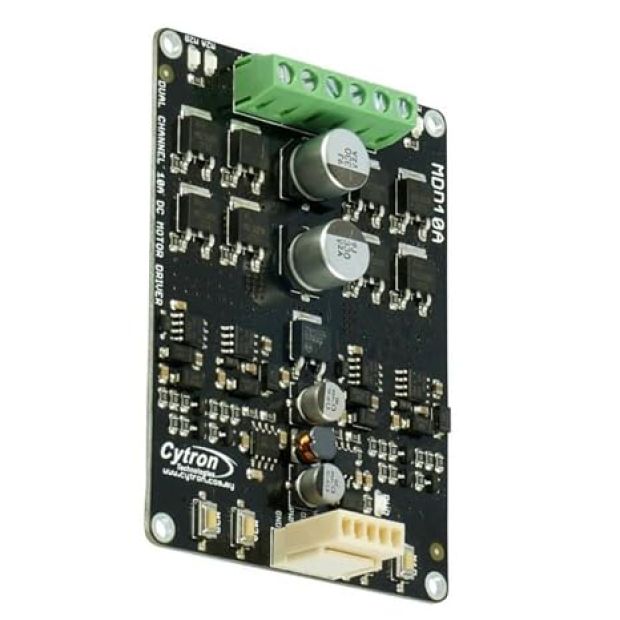

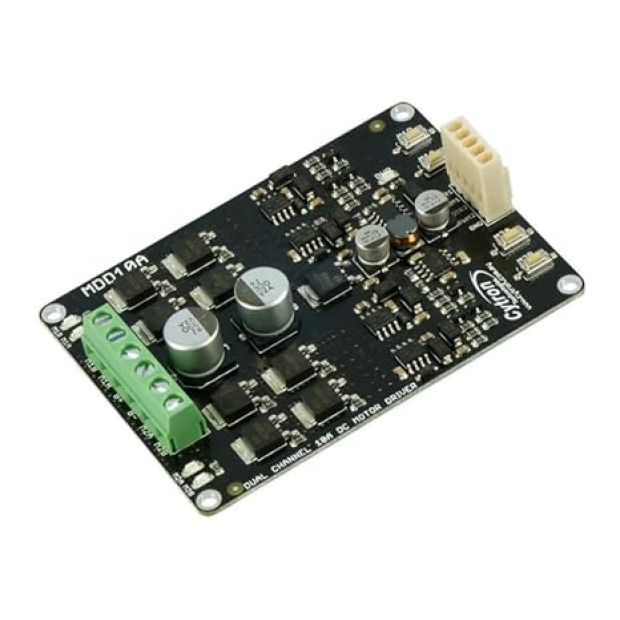

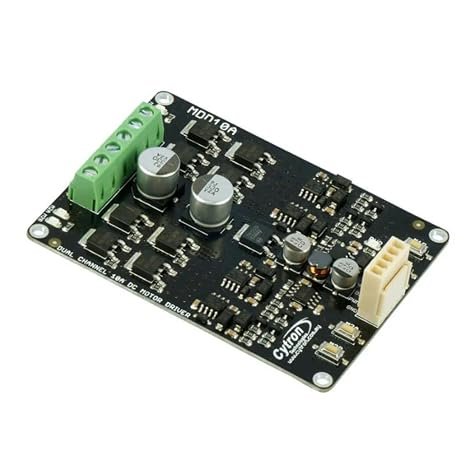

The Cytron MDD10A Dual Channel 10Amp DC Motor Driver is a industrial-grade, heavy-duty motor control module engineered to control two brushed DC motors independently. Designed with a fully discrete NMOS H-Bridge architecture, this module eliminates the need for bulky external heat sinks while providing faster response times and exceptional thermal efficiency.

Capable of handling 5V to 30V DC input range and supplying a massive 10A continuous current per channel (30A peak for 10 seconds), the Cytron MDD10A is the perfect upgrade from low-power drivers like the L298N. Whether you are building heavy combat robots, automated guided vehicles (AGVs), CNC equipment, or high-torque RC platforms, Electroboat Technologies provides genuine Cytron motor drivers delivered straight to your lab.

Key Features and Benefits

• Dual Channel Control: Independently drive 2 brushed DC motors forward, reverse, and at variable speeds.

• High Power Density: Delivers up to 10A continuous and 30A peak current per channel.

• Wide Operating Range: Operates smoothly within 5V to 30V DC power supply range.

• No Heatsink Required: Solid-state NMOS logic switching ensures cool operations without added weight.

• On-Board Test Buttons: Built-in manual quick-test switches allow instant motor testing without microcontrollers connected.

• Microcontroller Ready: Fully compatible with 3.3V and 5V TTL/CMOS logic (Arduino, Raspberry Pi, ESP32, STM32).

• Dual PWM Control Modes: Supports both Sign-Magnitude and Locked-Antiphase PWM modes.

Technical Specifications

How to Use

1. Power Input: Connect your DC power source (5V to 30V) to the main power terminal block (POWER + and POWER -).

2. Motor Connection: Connect DC Motor 1 to Terminal M1A / M1B and DC Motor 2 to Terminal M2A / M2B.

3. Logic Input: Connect the control pins to your microcontroller:

   • DIR1 & PWM1: Direction and Speed control pins for Channel 1.

   • DIR2 & PWM2: Direction and Speed control pins for Channel 2.

   • GND: Shared ground between driver board and microcontroller.

4. Manual Test: Press the onboard push-buttons (SW1 / SW2) to test motor rotation directly before uploading control code.

Applications

• Autonomous Mobile Robots (AMRs) & Combat Robotics

• Automated Guided Vehicles (AGVs) & Warehouse Logistics

• High-Torque Electric Winches & Actuators

• DIY Electric Vehicles, RC Cars, & RC Boats

• Industrial Automation & Conveyor Belt Speed Control

Package Includes

• 1 x Cytron MDD10A 10Amp 5V-30V Dual Channel DC Motor Driver Module
