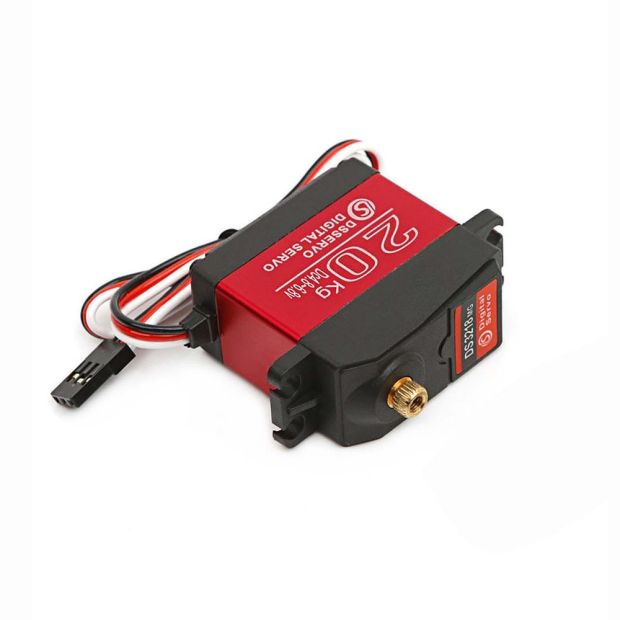

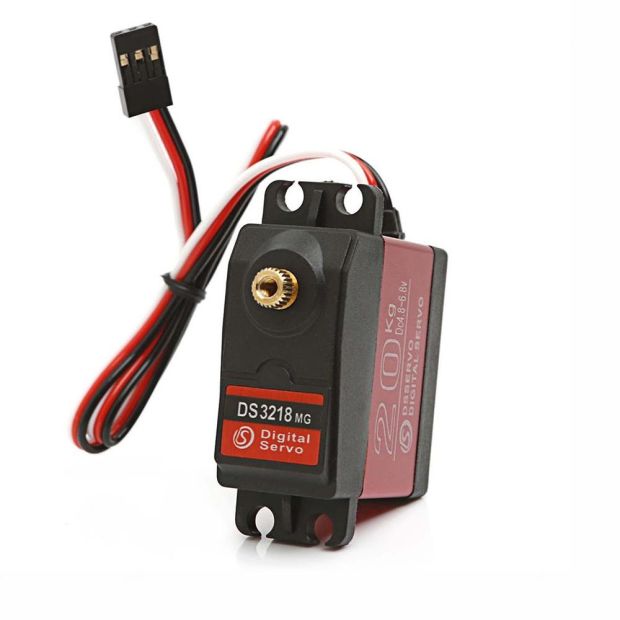

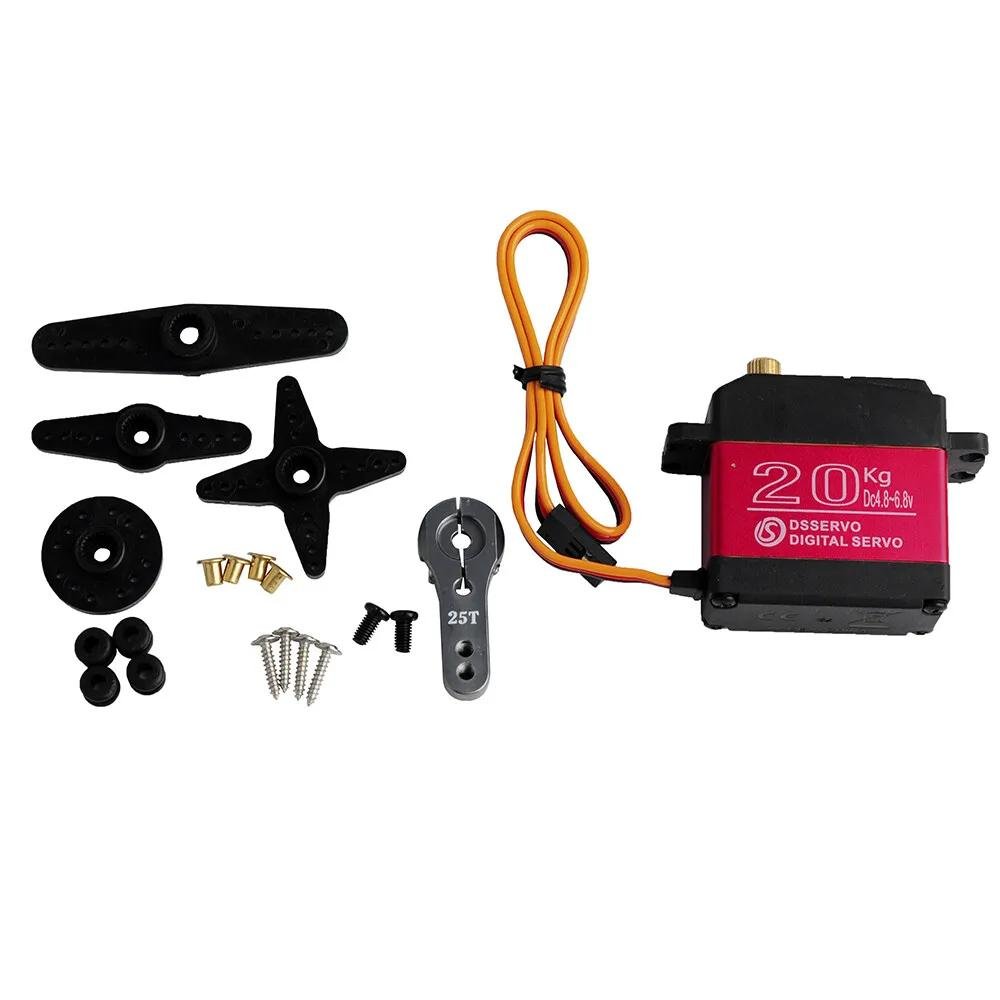

DS3218 20KG High-Torque 270° Digital Metal Gear Servo Motor (Waterproof with Metal Servo Horn)

Power high-load robotics and RC projects with the DS3218 20KG 270-Degree Digital Servo Motor. Delivering an impressive torque of up to 20 kg.cm at 6.8V, this high-performance servo features full copper-aluminum precision metal gears, dual ball bearings, and a CNC aluminum middle case for efficient heat dissipation. Offering an extended 270° rotation angle, digital control response, and IP66 splash-proof water resistance, it is designed for demanding applications in robotic arms, bipedal walkers, 1/8 and 1/10 scale RC crawlers, and Arduino automation projects.

( No Reviews )

₹ 1,325 ^{₹ 1,599}

Order From Whatsapp

Seller Electro Boat

Tags DS3218 20kg Servo 270 Degree Servo Motor DS3218 Digital Servo Metal Gear Servo 20kg High Torque Arduino Servo Waterproof Servo Motor Robotic Arm Servo 1/10 RC Crawler Servo

No Cancellation

No Returnable

Product Details :

The DS3218 20KG 270° Digital Servo Motor is a robust, heavy-duty mechanical actuator engineered for demanding projects that require high holding force and precise wide-angle positioning. Unlike standard $180^circ$ servos or weak plastic-geared alternatives, the DS3218 houses a set of precision-cut copper and aluminum metal gears mounted on dual ball bearings, preventing gear stripping under sudden impact or high stalls.

Encased in a hybrid structure featuring a CNC aluminum middle shell for accelerated heat dissipation, this motor delivers continuous reliability without thermal fading during extended operation. Its IP66-rated water and dust-resistant casing ensures smooth operation in wet or dusty outdoor environments, making it a favorite for 1/8 and 1/10 scale RC crawlers, custom robotic grippers, pan-tilt gimbals, and automated steering assemblies.

Key Features and Benefits

High Torque Performance: Generates up to $20 ext{ kg}cdot ext{cm}$ of stall torque at $6.8 ext{V}$ , providing ample power for heavy-duty lifting and steering.
Extended 270° Rotation: Provides an expanded motion range ( $0^circ ext{ to } 270^circ$ ) controlled via standard PWM signals, ideal for robotic arms and complex linkage mechanisms.
Full Metal Gear Train: Hard-anodized copper and aluminum internal gears deliver superior wear resistance and long operating life under shock loads.
Aluminum Core Heat Sink: CNC-machined middle casing quickly dissipates heat generated by the core motor during continuous heavy loads.
IP66 Water Resistance: Rubber seals protect internal potentiometers and control circuit boards from water splashes, rain, and humidity.
Digital Controller Logic: High-speed digital processing guarantees rapid response times, low dead-band ( $le 3 mu ext{s}$ ), and high positioning accuracy.

Technical Specifications

Feature Component	Specification Details
Model Designation	DS3218 (270° Version)
Control System	Pulse Width Modulation (PWM) Digital Control
Operating Angle	$270^circ pm 3^circ$ (Pulse range: $500 - 2500 mu ext{s}$ )
Operating Voltage Range	$4.8 ext{V} - 6.8 ext{V DC}$
Stall Torque ( $5.0 ext{V}$ )	$19.0 ext{ kg}cdot ext{cm}$ ( $263.8 ext{ oz/in}$ )
Stall Torque ( $6.8 ext{V}$ )	$21.5 ext{ kg}cdot ext{cm}$ ( $298.5 ext{ oz/in}$ )
Operating Speed ( $5.0 ext{V}$ )	$0.16 ext{ sec}/60^circ$
Operating Speed ( $6.8 ext{V}$ )	$0.14 ext{ sec}/60^circ$
Gear Material	Precision Copper & Aluminum Alloy
Dead-Band Width	$3 mu ext{s}$
Motor Type / Bearing	Core DC Motor / Dual Ball Bearings
Water Resistance Rating	IP66 (Splash-proof)

Pinout & Wiring Guide

The servo comes with a standard 3-pin 0.1" ( $2.54 ext{mm}$ ) female connector compatible with Arduino shield servo ports and RC receivers:

3-Pin Wire Color Code:

Brown / Black Wire (GND): Power Supply Ground ( $0 ext{V}$ ). Must be tied to the microcontroller common ground.
Red Wire ( $V_{CC}$ ): Power Supply Positive ( $+5.0 ext{V}$ to $+6.8 ext{V DC}$ ).
Orange / Yellow Wire (Signal): PWM Input Signal line (Connect to Arduino digital PWM pin).

Power Supply Note: Do NOT power this high-torque servo directly from the Arduino $5 ext{V}$ pin. A $20 ext{kg}$ servo can draw up to $2.0 ext{A}-2.5 ext{A}$ during heavy stalls, which will reset or damage the microcontroller. Always use an external regulated $5 ext{V}-6.8 ext{V}$ ( $3 ext{A}+$ rated) power supply and connect its ground pin to the Arduino ground pin.

Arduino Quick-Start Code Example

To achieve the full $270^circ$ movement range with standard Arduino libraries, pass custom minimum and maximum pulse widths ( $500 mu ext{s}$ to $2500 mu ext{s}$ ) when attaching the pin:

C++
#include <Servo.h>

Servo myServo;  // Create servo object

const int SERVO_PIN = 9; // Connect to Signal (Orange) wire

void setup() {
  Serial.begin(9600);
  // Attach servo to pin 9 with pulse range: 500us (0 deg) to 2500us (270 deg)
  myServo.attach(SERVO_PIN, 500, 2500);
  Serial.println("DS3218 270-Degree Servo Initialized.");
}

void loop() {
  // Move to 0 Degrees
  myServo.write(0);
  delay(1500);

  // Move to Midpoint (135 Degrees)
  myServo.write(135);
  delay(1500);

  // Move to Max Position (270 Degrees)
  myServo.write(270);
  delay(1500);
}

Applications

Robotics & Manipulators: Joints for multi-DOF robotic arms, humanoid bipedal legs, and high-load mechanical grippers.
RC Vehicles: Heavy-duty steering servos for 1/8 and 1/10 scale RC rock crawlers, off-road buggies, and monster trucks.
Pan-Tilt Gimbals: Smooth, high-load camera positioning and long-range tracking mounts.
Industrial Automation: Automated valve control, heavy latch opening, and custom linear actuator conversions.
