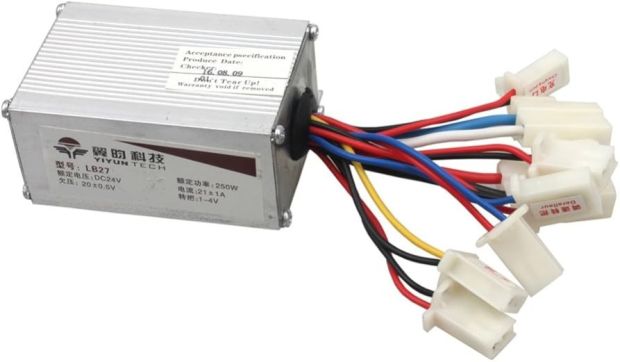

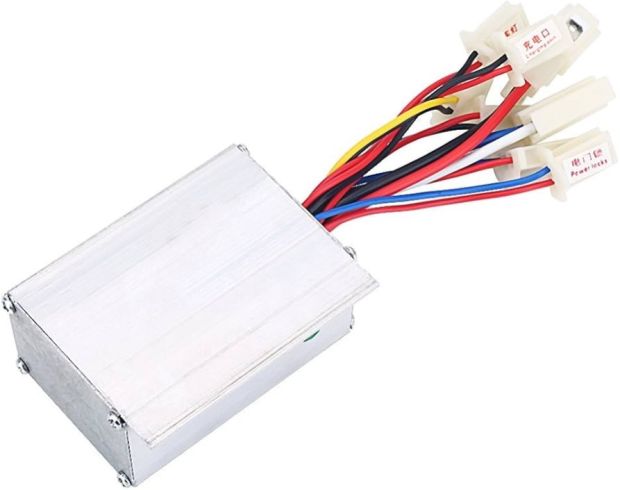

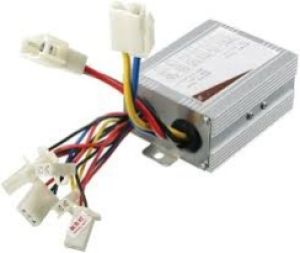

A 24V 350W e-bike controller is crucial for managing the power supplied to your electric bike motor (like the MY1016Z3). Here’s what you need to know about selecting and using one:

Key Features

• Voltage: Designed for 24V systems, compatible with 24V batteries.
• Power Rating: Rated for up to 350W, suitable for motors of the same power rating.
• Current Rating: Typically around 15-20A; check specifications to ensure compatibility with your motor.
• Control Type: Most controllers use PWM (Pulse Width Modulation) for efficient speed control.

Common Functions

• Throttle Input: Connects to a throttle (twist or thumb) to control speed.
• Brake Cutoff: Often has inputs for brake switches to cut power when brakes are engaged.
• Battery Protection: Includes features to prevent overcurrent, overheating, and overvoltage.

Installation Considerations

1. Wiring: Ensure you connect the motor, battery, throttle, and brake inputs according to the controller’s wiring diagram.
2. Mounting: Securely mount the controller in a location that protects it from moisture and impacts.
3. Cooling: Make sure there is adequate airflow to prevent overheating, especially during prolonged use.

Troubleshooting Tips

• No Power: Check battery connections and ensure the battery is charged.
• Inconsistent Speed: Inspect throttle connections and ensure the controller is configured correctly.
• Overheating: Ensure the controller is not overloaded; consider upgrading to a higher-rated controller if necessary.

Recommended Pairing

• Battery: Use a 24V battery (typically 10-20Ah) to provide sufficient power.
• Motor: Compatible with motors like the MY1016Z3 or similar 350W units.

If you have specific questions about wiring diagrams, features, or troubleshooting, feel free to ask!
