The ESP32-S3-DevKitC-1 N16R8 Board with OV5640 Camera Module is an advanced flagship development platform designed for Edge AI, TinyML, wireless video streaming, and smart computer vision applications. Built around the powerful ESP32-S3-WROOM-1 module, it integrates the Xtensa 32-bit LX7 dual-core microcontroller equipped with vector instructions that significantly accelerate neural network computing and signal processing tasks.

Unlike standard 2MP camera boards, this kit includes the upgraded OV5640 5MP optical camera sensor, supporting resolutions up to $2592\times 1944$ pixels with integrated auto-exposure, white balance, and sharp image processing. Backed by $16\text{MB}$ of SPI Flash Memory and $8\text{MB}$ of High-Speed Octal PSRAM, the hardware easily allocates sufficient buffer memory for handling raw 5MP frames, JPEG encoding, web streaming servers, and onboard machine learning models simultaneously.

The development board includes dual USB Type-C ports: one dedicated to native USB OTG/JTAG hardware debugging and another connected to a USB-to-UART bridge IC for seamless serial monitoring and code flashing across Arduino IDE, ESP-IDF, and MicroPython environments.

Key Features and Benefits

• High-Performance AI Processor: Dual-core 32-bit Xtensa LX7 MCU up to $240\text{MHz}$ with built-in vector processing extensions for TensorFlow Lite and ESP-WHO AI frameworks.

• 5MP OV5640 High-Resolution Camera: Upgraded 5 Megapixel camera module providing crisp image capture and high-frame-rate video streaming compared to basic OV2640 sensors.

• Massive $16\text{MB}$ Flash + $8\text{MB}$ Octal PSRAM: High-speed memory configuration enables buffer-heavy tasks such as frame buffering, local face recognition, and data logging.

• Dual USB Type-C Connectivity: Dedicated USB-to-UART port for flashing/debugging plus direct USB OTG port for native keyboard, mouse, or USB storage emulation.

• Comprehensive Wireless Stack: Supports $2.4\text{GHz}$ Wi-Fi ($802.11\text{ b/g/n}$) and Bluetooth 5 (LE) with long-range support and mesh networking capability.

• Onboard RGB & Status LEDs: Features an addressable WS2812 RGB LED alongside standard power and serial transmission indicators for visual status output.

Technical Specifications

Hardware Layout & Pinout Reference

1. Interface Layout:

               +---------------------------------------------------+
               |                    OV5640 5MP                    |
               |                  Camera Connector                 |
               +---------------------------------------------------+
               | [BOOT]                                    [RESET] |
               |                                                   |
               | [ ] 3V3                                   GND [ ] |
               | [ ] 5V                                   IO17 [ ] |
               | [ ] IO1                                  IO18 [ ] |
               | [ ] IO2                                  IO8  [ ] |
               | [ ] IO42                                 IO19 [ ] |
               | ...                                       ...     |
               |                                                   |
               | [USB-UART]                            [USB-OTG]   |
               +-------------+                      +--------------+
               |  Type-C 1   |                      |  Type-C 2    |
               +-------------+                      +--------------+

2. Key Power & Control Pins:

POWER SUPPLY NOTE: When streaming 5MP video frames via Wi-Fi with the camera active, peak current draws can reach up to $450\text{mA}$. Use a high-quality USB cable connected to a stable $5\text{V}/2\text{A}$ power source to prevent sudden brownout resets.

Applications

• Edge AI & Smart Computer Vision: On-device face detection, gesture recognition, and person counting using ESP-WHO/TensorFlow Lite.

• High-Resolution Wireless Video Streaming: Security camera nodes, RTSP video streaming servers, and smart doorbell systems.

• Industrial Monitoring & OCR: Automatic meter reading, optical character recognition (OCR), and defect inspection.

• Smart Agriculture & Robotics: Autonomous rover visual navigation, crop health logging, and remote tele-presence.

Package Includes

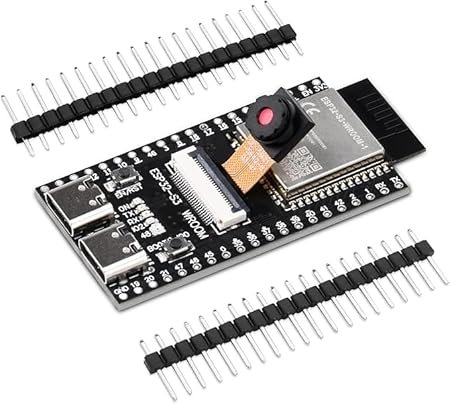

• 1 x ESP32-S3-DevKitC-1 N16R8 Development Board ($16\text{MB}$ Flash / $8\text{MB}$ PSRAM)

• 1 x OV5640 5MP Camera Sensor Module with FPC Ribbon Cable

• 2 x 22-Pin Male Header Strips (Unsoldered or Pre-soldered depending on batch)
