The ESP32-S3-N16R8 Development Board is a top-tier microcontroller board designed for demanding AIoT, voice processing, edge machine learning, and graphical user interface applications. Driven by the ESP32-S3-WROOM-1 module, it integrates a 32-bit Xtensa LX7 dual-core processor operating at speeds up to $240\text{MHz}$. The core incorporates dedicated vector instructions that provide significant acceleration for neural network processing and digital signal processing (DSP) workloads.

Equipped with an expansive memory layout featuring $16\text{MB}$ Quad SPI Flash and $8\text{MB}$ Octal PSRAM, this board eliminates memory bottlenecks when compiling memory-intensive code, handling large audio/video buffers, or hosting rich HTML web applications.

The board design includes dual USB Type-C ports: one connected to a USB-to-UART bridge IC for seamless serial debugging and programming, and a second native USB Type-C port connected directly to the ESP32-S3 USB OTG/JTAG controller for hardware emulation and native USB communications.

Key Features and Benefits

• High-Performance AI Accelerator Core: Dual-core 32-bit Xtensa LX7 CPU up to $240\text{MHz}$ with built-in vector instructions for accelerating TinyML and TensorFlow Lite frameworks.

• Maximized Memory Profile ($16\text{MB}$ Flash / $8\text{MB}$ Octal PSRAM): High-speed Octal SPI PSRAM offers ultra-fast data bus throughput for handling camera frame buffers, voice recognition models, and graphics libraries (LVGL).

• Dual USB Type-C Connectivity: Features a dedicated USB-to-UART port for flashing and serial monitoring, plus a native USB OTG port for keyboard, mouse, or virtual COM port emulation.

• Comprehensive Wireless Communications: Supports $2.4\text{GHz}$ Wi-Fi ($802.11\text{ b/g/n}$) and Bluetooth 5.0 (LE) with mesh networking capability and long-range support.

• Rich Peripheral Interfaces: Exposes 36 programmable GPIO pins supporting SPI, I2C, I2S, PWM, ADC, UART, and capacitive touch sensing.

• Onboard RGB & Status Indicators: Features a user-addressable WS2812 RGB LED alongside standard power and UART transmission status indicators.

Technical Specifications

Pinout & Hardware Reference

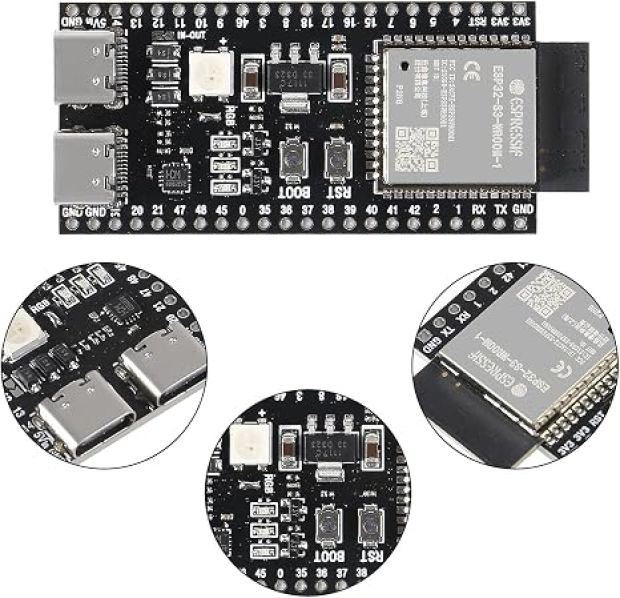

1. Pin Mapping Summary:

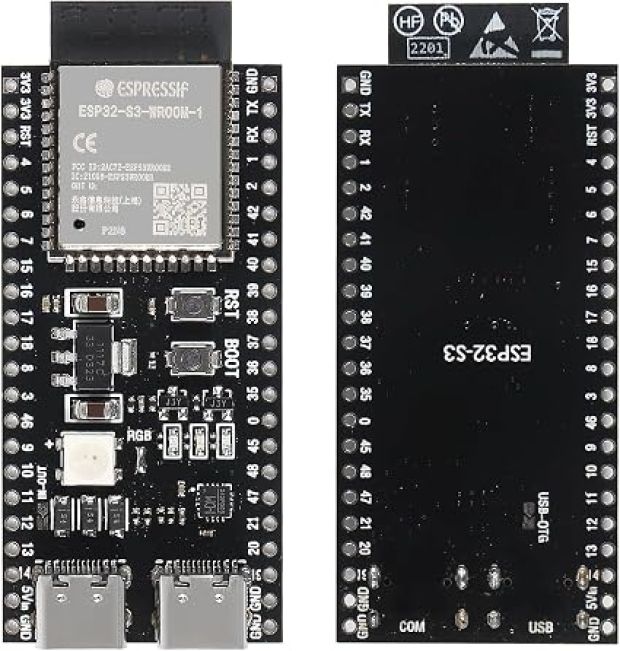

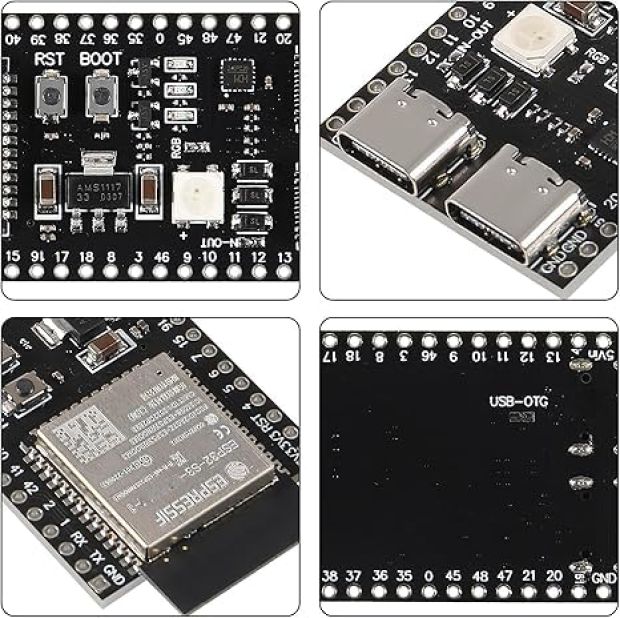

2. Board Layout Overview:

               +---------------------------------------------------+
               |               ESP32-S3-WROOM-1                    |
               |                N16R8 Module                       |
               +---------------------------------------------------+
               | [BOOT]                                    [RESET] |
               |                                                   |
               | [ ] 3V3                                   GND [ ] |
               | [ ] 5V                                   IO17 [ ] |
               | [ ] IO1                                  IO18 [ ] |
               | [ ] IO2                                  IO8  [ ] |
               | [ ] IO42                                 IO19 [ ] |
               | ...                                       ...     |
               |                                                   |
               | [USB-UART]                            [USB-OTG]   |
               +-------------+                      +--------------+
               |  Type-C 1   |                      |  Type-C 2    |
               +-------------+                      +--------------+

Applications

• Edge AI & Machine Learning: On-device keyword spotting, anomaly detection, and image classification using TensorFlow Lite for Microcontrollers.

• Smart Home & Matter Hubs: Building multi-protocol Matter, Wi-Fi, and Bluetooth low-energy home automation hubs.

• HMI Display Panels: Driving color TFT/LCD displays and touchscreens running the LVGL graphics library.

• Audio & Speech Processing: Local offline voice recognition, audio streaming, and smart speaker prototyping.

Package Includes

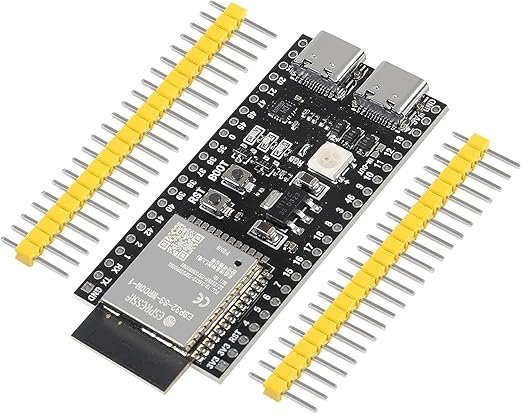

• 1 x ESP32-S3-N16R8 Development Board ($16\text{MB}$ Flash / $8\text{MB}$ PSRAM)

• 2 x 22-Pin Male Header Strips (Unsoldered or Pre-soldered depending on batch)

Shipping & Delivery

• Free shipping on orders above ₹999 across India

• Dispatched within 1-3 business days

• Expected delivery: 3-7 business days depending on location

• Anti-static ESD protective packaging for safe transit
