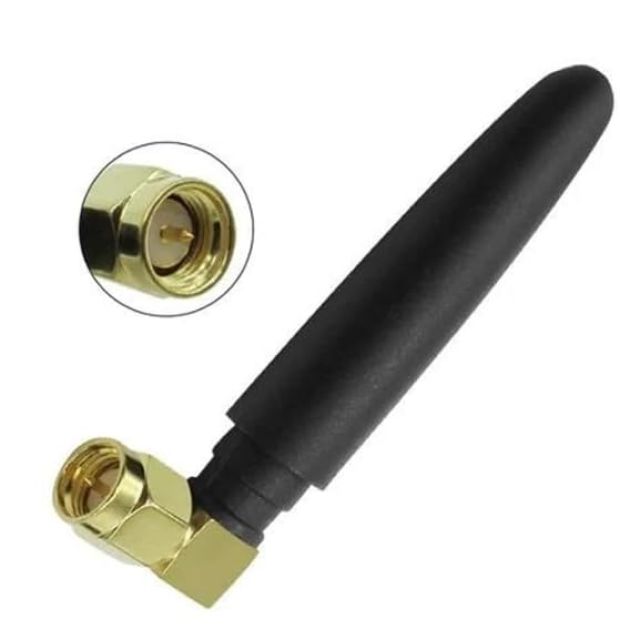

The GSM External Antenna – 5cm (2G/3G) is a rugged, ultra-compact omnidirectional antenna designed to deliver clear cellular connectivity in compact electronic assemblies. Standard trace antennas or small PCB patch antennas built into developer breakout boards often struggle with packet drops or poor signal strength when housed inside plastic project enclosures or metallic boxes. This 50mm rubber-duck antenna solves coverage issues by bringing high-efficiency RF reception outside the enclosure.

Supporting broad multi-band frequencies across 824 MHz to 2170 MHz, this antenna works seamlessly across GSM, GPRS, EDGE, and 3G UMTS networks. The antenna features a durable rubberized outer sheath protecting a flexible internal radiator element, paired with a solid brass SMA Male connector (with internal threads and a center pin). It easily threads onto SMA Female panel mounts or IPEX-to-SMA pigtails connected to cellular modems.

Key Features and Benefits

• Wide Frequency Spectrum: Fully compatible with quad-band GSM/GPRS (850/900/1800/1900 MHz) and 3G networks (2100 MHz).

• Ultra-Compact Footprint: At just 5cm in total length, it adds minimal bulk, making it suitable for portable trackers, compact sensor nodes, and tight enclosures.

• Omnidirectional Coverage Pattern: $360^circ$ horizontal radiation plane ensures reliable signal reception regardless of orientation relative to cell towers.

• Durable Rubber-Duck Sheath: Tough black rubber housing shields the internal radiating element against physical impact and wear.

• Standard SMA Male Termination: Features an industry-standard brass SMA Male connector for secure, low-loss threaded attachment.

Technical Specifications

How to Connect & Interface

1. Direct Board Connection: If your GSM breakout board (such as a SIM900 shield or SIM7600 module) includes an onboard edge-mounted SMA Female port, thread the 5cm antenna directly onto the connector until hand-tight.

2. u.FL / IPEX Adapter Connection: Modules like the SIM800L or mini cellular breakout boards often use microscopic u.FL (IPEX) connector pads. To use this external antenna:

   • Snap an IPEX to SMA Female pigtail cable onto the module's u.FL connector.

   • Screw the 5cm GSM antenna into the SMA Female end of the pigtail adapter.

3. Mounting Tip: Position the antenna vertically where possible and away from large ground planes or power supplies to minimize RF interference.

Applications

• Cellular IoT & Telemetry Nodes: Ideal for remote weather stations, agricultural soil monitors, and solar power loggers transmitting data over 2G/3G.

• Vehicle & Asset Trackers: Provides reliable signal reception for compact GPS/GSM tracking modules installed under dashboards or in storage cases.

• Smart Utility Metering: Connects to automated electric, gas, or water meters to report readings wirelessly.

• Security & DIY Alarm Systems: Works as an external antenna for home security panels that send SMS alerts or call emergency numbers during intrusions.

Package Includes

• 1 x 5cm GSM 2G/3G External Rubber Duck Antenna (SMA Male Connector)
