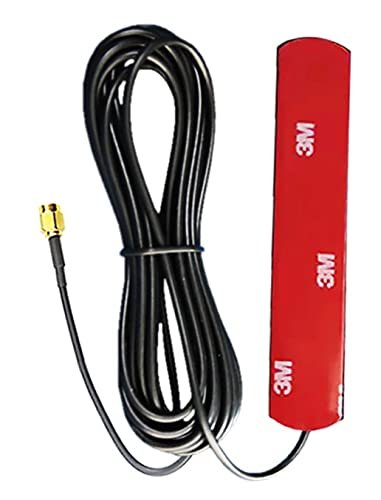

The Sticker GSM Antenna 3dBi – 3 Meter Cable is a versatile external patch antenna engineered to solve signal attenuation in metal control panels, underground enclosures, or thick concrete structures. Standard stubby antennas mounted directly on a cellular module inside an enclosure often suffer from severe signal degradation. This adhesive patch antenna overcomes this by providing a flexible 3-meter long RG174 coaxial cable, enabling you to position the radiating element outside the enclosure or near a window where signal reception is optimal.

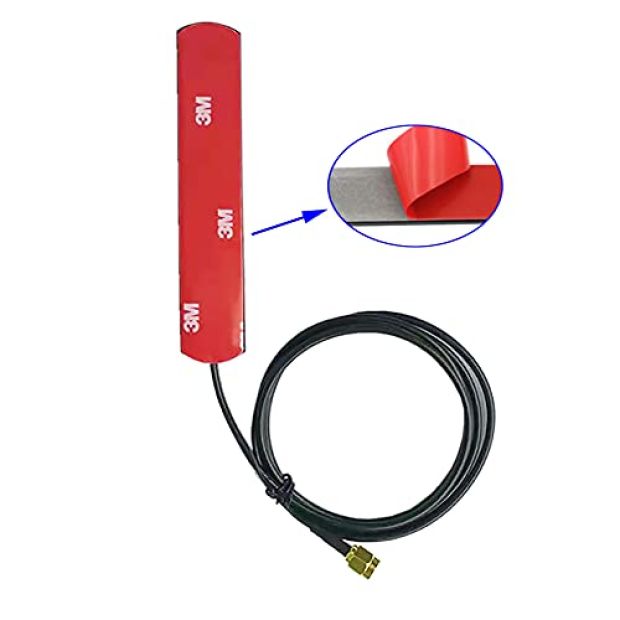

The antenna features a slim plastic-molded housing with a high-tack 3M adhesive strip pre-applied to the back. It sticks instantly to glass, acrylic, PVC, or fiberglass surfaces. Operating across quad-band GSM/GPRS frequencies (850/900/1800/1900 MHz) as well as 3G UMTS bands, it ensures reliable cellular data transmission and SMS alerts across various network carriers. It comes terminated with a threaded SMA Male connector for a low-loss, secure connection to GSM modems and development boards.

Key Features and Benefits

• Self-Adhesive Mounting: Built-in 3M peel-and-stick backing allows tool-free installation on smooth surfaces like windows, plastic project boxes, or vehicle windshields.

• 3-Meter High-Flex Cable: Generous 3m cable length provides total freedom to mount the antenna in high-signal areas while keeping your main controller protected.

• Quad-Band Spectrum Coverage: Broad frequency response covering 850/900/1800/1900 MHz ensures full multi-carrier cellular compatibility.

• Insulated ABS Plastic Housing: Molded protective casing shields the internal radiating element from dust, weather exposure, and short circuits.

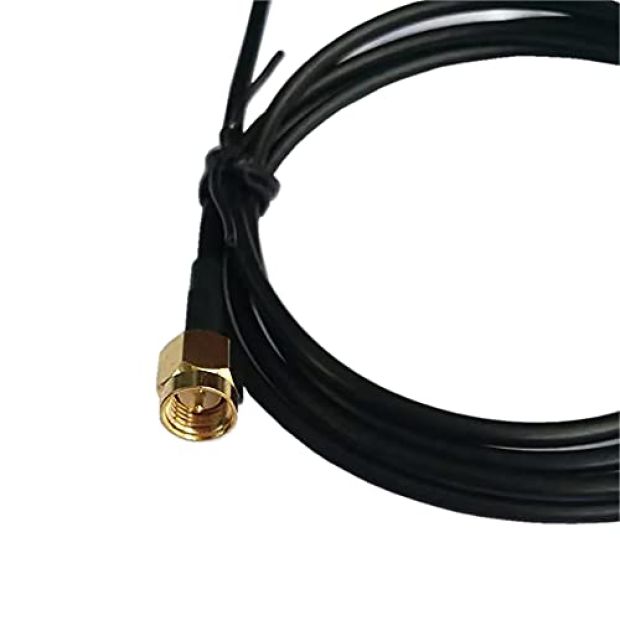

• Universal SMA Male Connector: Standard brass SMA Male plug connects directly to GSM development boards, routers, and gateway modems.

Technical Specifications

How to Mount & Connect

1. Surface Preparation: Clean the target mounting area (glass window, plastic enclosure, or wall plate) with isopropyl alcohol to remove dust and oil before peeling off the 3M tape backing.

2. Attaching the Patch: Peel the protective film off the adhesive backing on the antenna body and press the patch firmly against the surface for 10 seconds.

3. Cable Routing: Route the 3-meter RG174 cable back to your cellular equipment. Avoid sharp $90^circ$ bends or pinching the cable in metal door frames to prevent signal attenuation.

4. Connecting: Screw the brass SMA Male connector onto the SMA Female port of your GSM module (e.g., SIM800C, SIM900, SIM7600) until hand-tight. For micro-boards like SIM800L that use a u.FL connector, use an IPEX-to-SMA Female pigtail adapter.

Applications

• Remote IoT & Solar Telemetry: Mount the antenna high on an outdoor solar mast while the telemetry controller stays sealed inside a weatherproof IP67 enclosure.

• ATM & Vending Machine Connectivity: Allows cellular telemetry modules buried inside metal machine frames to route their antenna outward to receive clear signals.

• Vehicle Fleet Tracking: Stick the low-profile patch onto a vehicle windshield or hidden under plastic bumpers for covert GPS/GSM tracking.

• Smart Utility Metering: Improves connection stability for smart electric, water, and gas meters housed inside basement utility rooms.

Package Includes

• 1 x 3dBi Sticker GSM Patch Antenna with 3 Meter RG174 Cable (SMA Male Connector)
