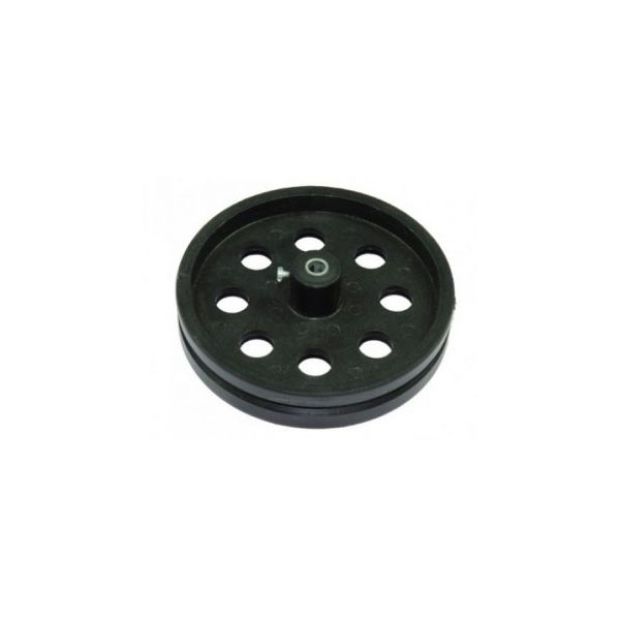

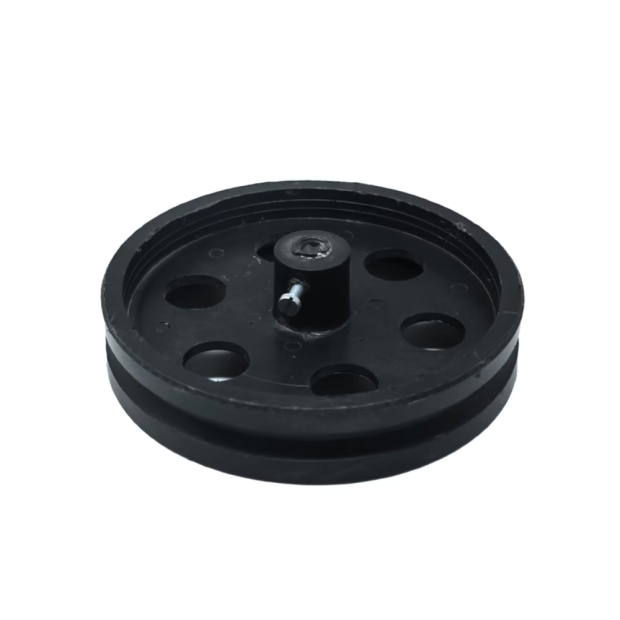

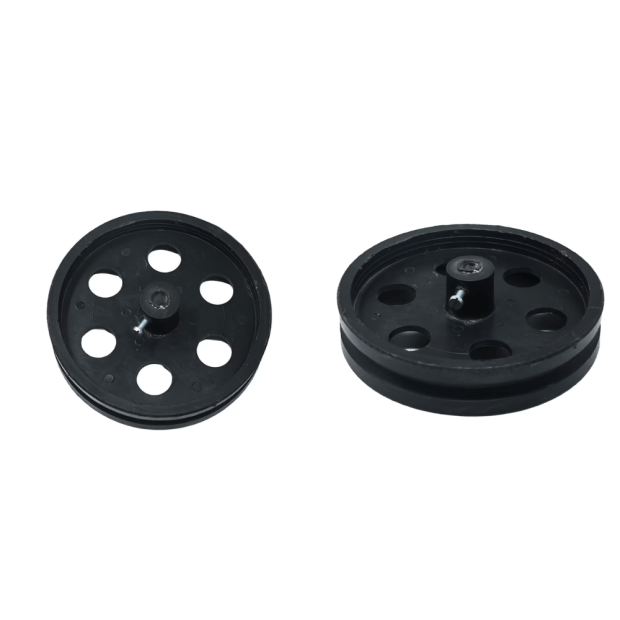

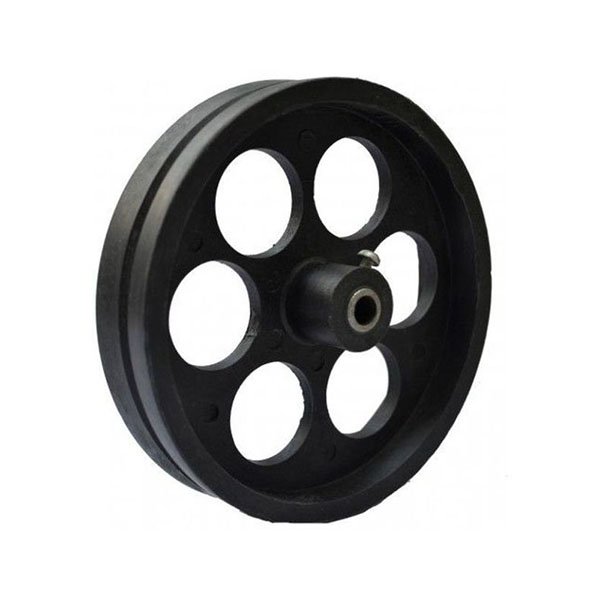

Engineered by Electroboat Technologies Pvt Ltd for transmission systems, power distribution, and mechanical robotics projects, the 10x2 cm (100x20mm) Pulley Wheel is designed for dual-functionality. Featuring a 6mm recessed groove width, it accommodates standard 6mm width timing belts, drive bands, or o-rings, while its high-friction outer rubber rim doubles as an ultra-agile drive wheel for direct ground contact.

The precision-molded 6mm center shaft bore integrates seamlessly with standard 6mm side-shaft DC gear motors, stepper motors, and axle rods. Equipped with a reinforced metal hub insert and a side grub screw, this pulley wheel locks tightly onto motor shafts, preventing slippage, rotational lash, or misalignment under continuous load and reversing drive torque.

Key Features and Benefits

• Dual-Purpose Functionality: Serves as a 6mm timing belt/drive pulley or as a slim, low-friction mobile robot wheel.

• Precision 6mm Belt Channel: Deep-set groove securely holds 6mm drive belts, preventing slipping or tracking misalignment during operation.

• Anti-Slip Center Lock: Built-in side set screw locks firmly onto 6mm D-shafts and round motor shafts for reliable torque transmission.

• Lightweight & Agile Build: 2cm profile minimizes rotational inertia and friction, enhancing motor efficiency and power delivery.

• High-Impact ABS & Rubber Construction: Impact-resistant core structure wrapped in a wear-resistant rubber ring for extended service life.

Technical Specifications

• Wheel Outer Diameter: 100 mm (10 cm)

• Total Width: 20 mm (2 cm)

• Belt Groove Width: 6 mm

• Center Bore Diameter: 6 mm

• Locking Mechanism: Side M4 Locking Grub Screw

• Rim Material: High-Grade ABS Plastic

• Tire/Grip Material: Anti-skid Synthetic Rubber

• Color: Black Core with Black Rubber Ring

• Compatibility: 6mm Width Drive Belts / 6mm Shaft DC Motors

How to Use

1. Clean the output shaft of your 6mm motor or axle rod to ensure smooth insertion.

2. Align the pulley wheel hub with the shaft and slide it into place, ensuring alignment with your belt drive mechanism.

3. Align the side grub screw hole directly over the flat surface of the motor D-shaft.

4. Tighten the grub screw firmly using an Allen key or screwdriver to secure the pulley wheel in position.

5. Loop your 6mm drive belt or o-ring around the central channel and check for proper tension.

Applications

• Belt-Driven Mobile Robots & Autonomous Platforms

• DIY Linear Motion Systems, Conveyors, and CNC Prototypes

• Gear Reduction & Torque Amplification Drives

• High-Speed Line Follower & Lightweight Autonomous Vehicles

• STEM & University Engineering Project Prototypes

Package Includes

• 1 × 10x2 cm (100x20mm) Pulley Wheel (6mm Belt / 6mm Bore)
