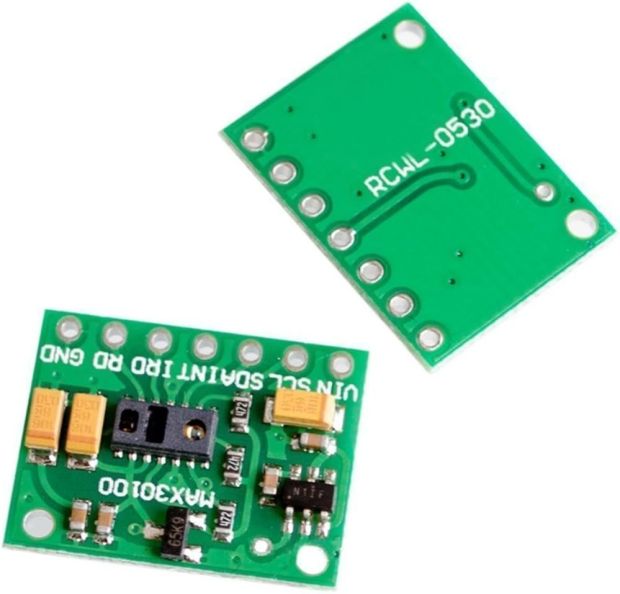

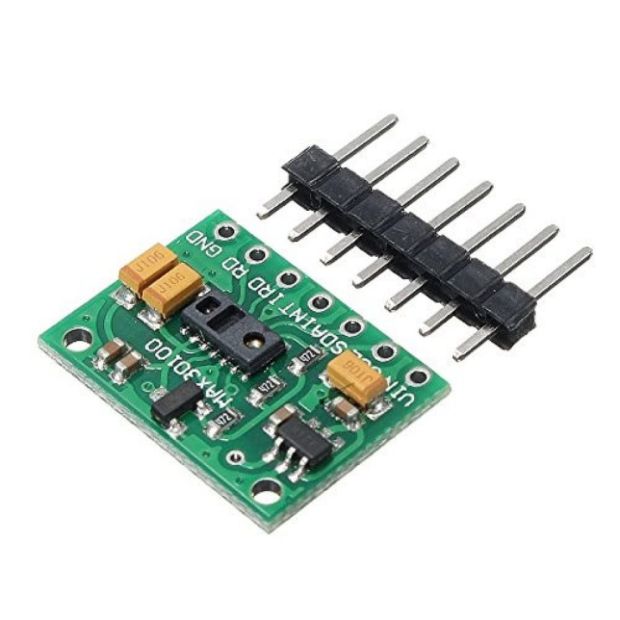

The MAX30100 is an integrated heart rate sensor module that combines a pulse oximeter and a heart rate monitor (HRM) in one compact device. It is designed for wearable health monitoring applications such as fitness trackers, healthcare devices, and other biometric monitoring systems.

Key Features:

1. Pulse Oximeter & Heart Rate Monitor:

   • The MAX30100 sensor module is capable of measuring both heart rate (HR) and blood oxygen saturation (SpO2) levels in the body using infrared light (IR) and red light.
   • It detects the pulsatile blood flow by shining light through the skin and measuring the amount of light that is reflected back, allowing it to calculate the heart rate and SpO2 levels.

2. Low Power Consumption:

   • The MAX30100 is power-efficient, making it ideal for battery-operated or wearable devices such as smartwatches, fitness bands, or healthcare sensors. The sensor can be used in low-power applications, which is a significant advantage in wearable technology.

3. Compact & Integrated Design:

   • The module is compact, and the MAX30100 chip integrates both the LED drivers, photodetectors, and the optical sensors, making it a single-chip solution. This eliminates the need for additional components like external drivers or sensors.

4. Signal Processing:

   • The MAX30100 includes an internal analog-to-digital converter (ADC), which converts the analog signals from the photodiodes into a digital output that can be easily processed by a microcontroller, such as Arduino or Raspberry Pi.
   • The sensor also has built-in signal processing features to filter noise and improve the accuracy of heart rate and SpO2 readings.

5. I2C Interface:

   • The module communicates with microcontrollers using the I2C communication protocol. This is an easy-to-use and widely supported interface, making the sensor easy to integrate into various systems like Arduino, Raspberry Pi, or other microcontroller platforms.

6. High Precision:

   • The MAX30100 provides high accuracy in heart rate measurement, typically in the range of 30 bpm to 250 bpm (beats per minute) with a ±1 bpm error. The SpO2 measurement range is generally between 0% to 100%, with an accuracy of ±1.5% at 70% to 100% SpO2 levels.

7. Configurable Sampling Rate:

   • The MAX30100 allows you to configure the sampling rate, which determines how frequently the sensor takes measurements. You can adjust it depending on your application’s requirements, such as a higher sampling rate for more frequent updates in a wearable device.

8. Integrated LED Drivers:

   • The sensor has two integrated LEDs, one for red light (typically at 660 nm) and one for infrared light (typically at 880 nm), which are used for optical measurement of blood oxygen levels and heart rate.

9. Built-in Temperature Sensor:

   • The MAX30100 module also includes an internal temperature sensor to help monitor ambient temperature. This helps in adjusting the readings based on environmental factors.

Applications:

1. Wearable Health Devices:

   • The MAX30100 is widely used in fitness trackers, smartwatches, and other wearable health devices to continuously monitor heart rate and SpO2 levels, helping users track their physical activity and overall health status.

2. Fitness and Sports Monitoring:

   • Athletes and fitness enthusiasts can use devices equipped with the MAX30100 to monitor their heart rate and SpO2 during exercise or training, which can provide insights into their performance and help optimize workouts.

3. Medical Monitoring:

   • In medical devices, the MAX30100 can be used for continuous monitoring of patients' vital signs, especially for non-invasive SpO2 and heart rate monitoring. It is commonly found in remote patient monitoring systems and telemedicine applications.

4. Sleep Monitoring:

   • The module can be used in devices designed to monitor sleep patterns, as heart rate and blood oxygen levels are important indicators of sleep quality.

5. Home Healthcare Systems:

   • The MAX30100 is commonly used in home healthcare devices to track the heart rate and oxygen saturation of elderly or vulnerable individuals, allowing caregivers to monitor their well-being.

How It Works:

The MAX30100 uses optical sensing to measure the pulsatile blood flow. Here's a breakdown of the process:

1. Red and Infrared LEDs: The MAX30100 has two LEDs: one emits red light (660 nm) and the other emits infrared light (880 nm). These lights are directed at the skin, and the photodiode detects the amount of light that is reflected back from the blood vessels.

2. Blood Flow Detection: As blood pulses through the arteries with each heartbeat, the amount of light reflected back from the skin changes. The sensor uses this variation in reflected light to detect the heartbeat.

3. Heart Rate Measurement: By measuring the time between pulses of light, the MAX30100 can calculate the heart rate (beats per minute, bpm).

4. Blood Oxygen (SpO2) Measurement: The sensor also compares the relative absorption of the red and infrared light by the blood to calculate the oxygen saturation (SpO2) levels. Oxygenated and deoxygenated blood absorb different amounts of light at specific wavelengths, so by comparing the signals from the red and infrared LEDs, the device estimates the oxygen saturation.

5. Signal Processing: The analog signals from the photodiode are amplified and converted into digital signals by the built-in analog-to-digital converter (ADC). The data is processed and transmitted via the I2C interface to the microcontroller for further analysis and display.

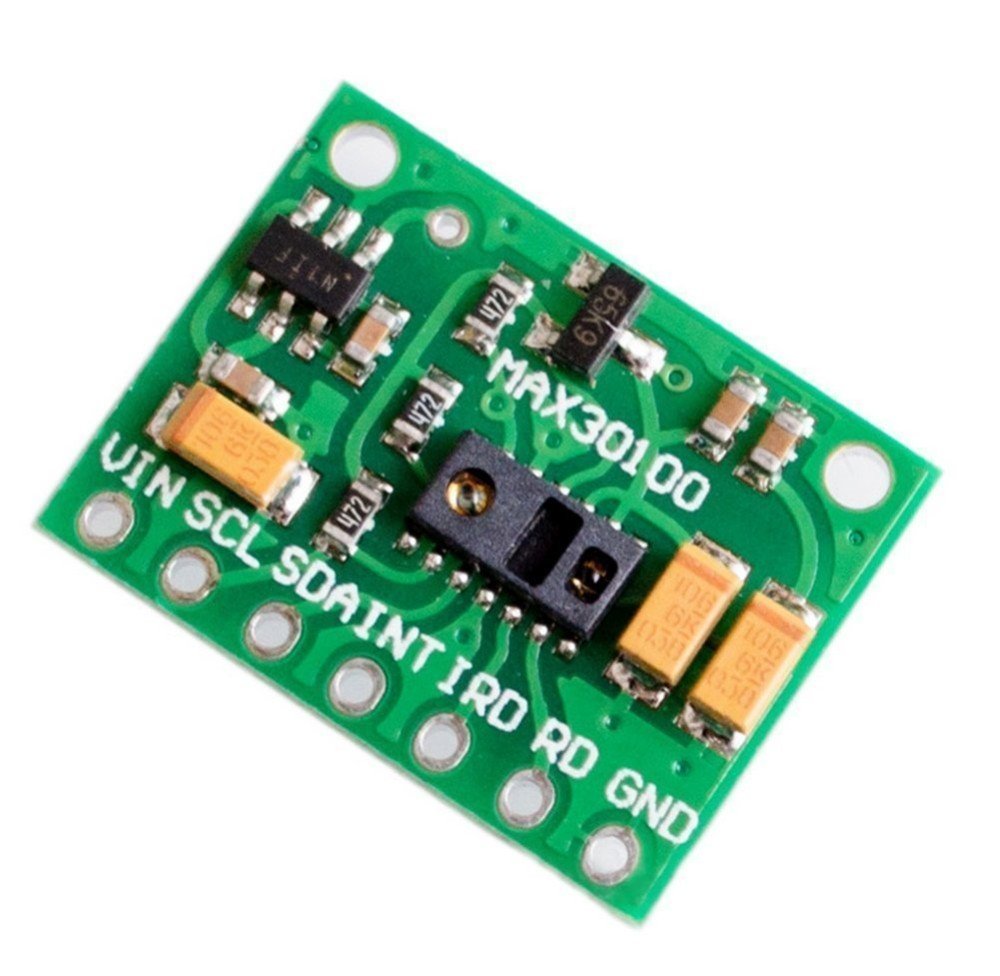

Pinout of the MAX30100 Module:

1. VCC: Power supply pin (typically 3.3V to 5V).
2. GND: Ground pin.
3. SCL: I2C clock pin (used for communication).
4. SDA: I2C data pin (used for communication).
5. INT: Interrupt pin (optional, used for generating an interrupt when data is ready).
6. A0, A1, A2: These are optional address pins that are used to configure the I2C address.

Example of Interfacing with Arduino:

Here is a basic example of how you can interface the MAX30100 with an Arduino:

1. Wiring:

   • Connect the VCC pin to 3.3V or 5V on the Arduino.
   • Connect the GND pin to ground.
   • Connect the SCL pin to the SCL pin on the Arduino (usually pin A5 for Uno).
   • Connect the SDA pin to the SDA pin on the Arduino (usually pin A4 for Uno).
   • Optionally, connect the INT pin for interrupt functionality.

2. Code:

   • You will need to install the MAX30100 library, such as the "MAX30100" or "MAX30105" library (often used for MAX30100 and similar sensors).
   • Using the library, you can access functions that read heart rate and SpO2 data, such as getHeartRate() and getSpO2().

Example Code (Arduino):

#include
#include

MAX30100_PulseOximeter oximeter;

void setup() {
  Serial.begin(9600);
  if (!oximeter.begin()) {
    Serial.println("Failed to initialize MAX30100 sensor");
    while (1);
  }
}

void loop() {
  oximeter.update();

  if (oximeter.isHeartRateUpdated()) {
    Serial.print("Heart Rate: ");
    Serial.print(oximeter.getHeartRate());
    Serial.println(" bpm");
  }

  if (oximeter.isSpO2Updated()) {
    Serial.print("SpO2: ");
    Serial.print(oximeter.getSpO2());
    Serial.println(" %");
  }
}

Advantages:

1. Compact Design: The MAX30100 module is small and easy to integrate into wearable and portable devices.
2. Low Power: Its low power consumption makes it ideal for battery-powered applications.
3. Accurate Readings: It provides reliable and accurate heart rate and SpO2 measurements.
4. I2C Communication: The I2C interface is simple to connect with microcontrollers, and multiple sensors can be used with ease.

Disadvantages:

1. Limited to Low-Intensity Use: The MAX30100 is not ideal for continuous or high-intensity medical-grade monitoring, as its accuracy may degrade in very challenging environments.
2. Potential for Noise: Noise from ambient light, motion, or poor contact with the skin can affect the sensor's readings.
3. Not Suitable for High-Precision Medical Applications: While it provides good accuracy for general fitness and wellness applications, it is not designed for professional medical-grade measurements.

Conclusion:

The MAX30100 is an excellent heart rate sensor for a wide range of applications, particularly in wearable devices, fitness trackers, and home healthcare systems. It provides heart rate and blood oxygen measurements using infrared and red light sensors, offering a compact, low-power solution for continuous health monitoring.
