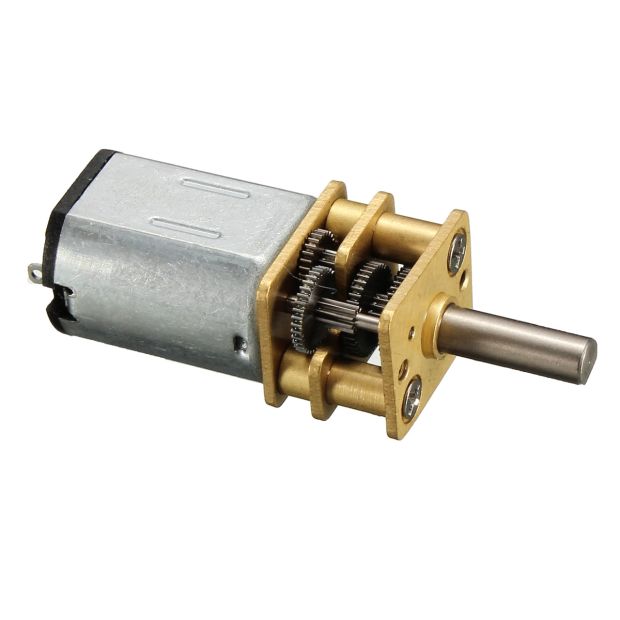

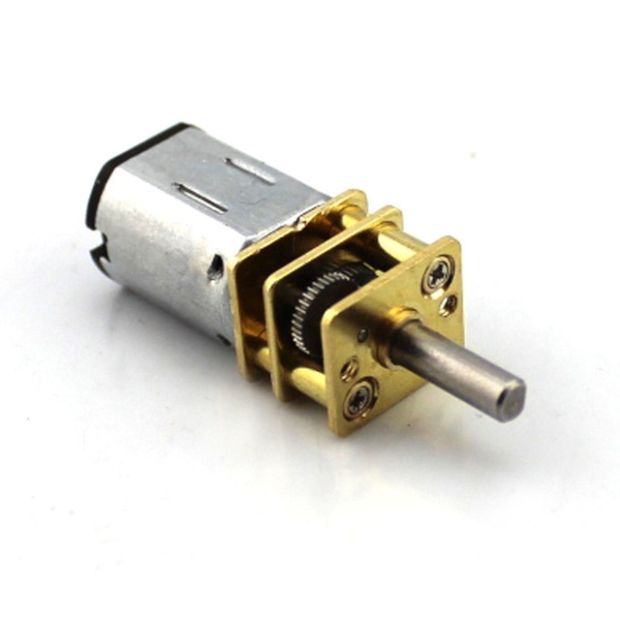

N20-Micro Gear 12V 100RPM DC Motor (High Torque)
N20 Micro Gear 12V 100RPM DC Motor (High Torque)
The N20 Micro Gear 12V 100RPM High Torque DC Motor is a compact and efficient solution for projects requiring precise motion with reliable torque. Featuring a durable all-metal gearbox, this motor delivers 100 RPM at 12V, making it ideal for robotics, automation systems, and DIY electronics that demand both speed and strength in a small form factor.
₹ 300
₹399
399
| : | |
| Made In : | India |
Add FAQ
N20 Micro Gear 12V 100RPM DC Motor (High Torque)
The N20 Micro Gear 12V 100RPM High Torque DC Motor is a compact and efficient solution for projects requiring precise motion with reliable torque. Featuring a durable all-metal gearbox, this motor delivers 100 RPM at 12V, making it ideal for robotics, automation systems, and DIY electronics that demand both speed and strength in a small form factor.
Key Features:
-
100 RPM Speed @ 12V – Offers a great balance between speed and torque for general-purpose motion.
-
High Torque Output – Capable of driving mechanical systems that require significant force.
-
Wide Voltage Range: Operates effectively between 6V and 12V, with optimal performance at 12V.
-
Compact Design – Perfect for space-constrained applications such as small robots or embedded mechanisms.
-
Metal Gearbox Construction – Ensures long-lasting durability and consistent performance under load.
Specifications:
-
Motor Type: N20 Micro Gear Motor
-
Operating Voltage: 6V – 12V DC
-
Rated Voltage: 12V
-
No-Load Speed @ 12V: ~100 RPM
-
Stall Torque @ 12V: ~1.8 – 2.5 kg·cm (approx.)
-
Gear Ratio: Approx. 120:1 (may vary slightly)
-
Motor Dimensions: 12mm × 10mm × 26mm (excluding shaft)
-
Shaft Diameter: 3mm (D-shaped)
-
Shaft Length: ~10mm
-
Weight: ~10g
Applications:
-
Robotics (wheeled robots, grippers, servo replacements)
-
Smart home mechanisms (automated curtains, locks, valves)
-
Pan-tilt camera systems
-
Model cars, boats, or mechanical toys
-
DIY and hobby electronics requiring controlled motion
